Product Description
The JARO JRV15 Heavy-Duty True Union Ball Valve is engineered for demanding industrial environments. Featuring a distinctly thickened valve body, it delivers robust durability and full-size pressure resistance that exceeds standard PN16 ratings. Its true union design allows for quick, pipe-cutting-free maintenance, providing ultimate reliability for heavy-duty water treatment, chemical, and industrial fluid systems.
Value Propositions
Thickened Heavy-Duty Body
Engineered with a distinctly thickened PVC structure, safely surpassing standard PN16 pressure ratings to deliver uncompromising safety in rigorous industrial environments.
Modular True Union Architecture
Perform instant maintenance or component replacements without ever cutting pipelines. The modular design integrates flawlessly with your entire system of matching pipe fittings.
Unrestricted Full-Port Flow
A smooth, full-diameter internal path minimizes fluid resistance, significantly reducing pumping energy consumption and maximizing large-scale operational efficiency.
Adaptive Dual-Seal Technology
Advanced dual O-rings reliably prevent high-pressure leaks, while externally adjustable union nuts allow you to easily compensate for long-term wear and extend overall lifespan.
Product Core Data

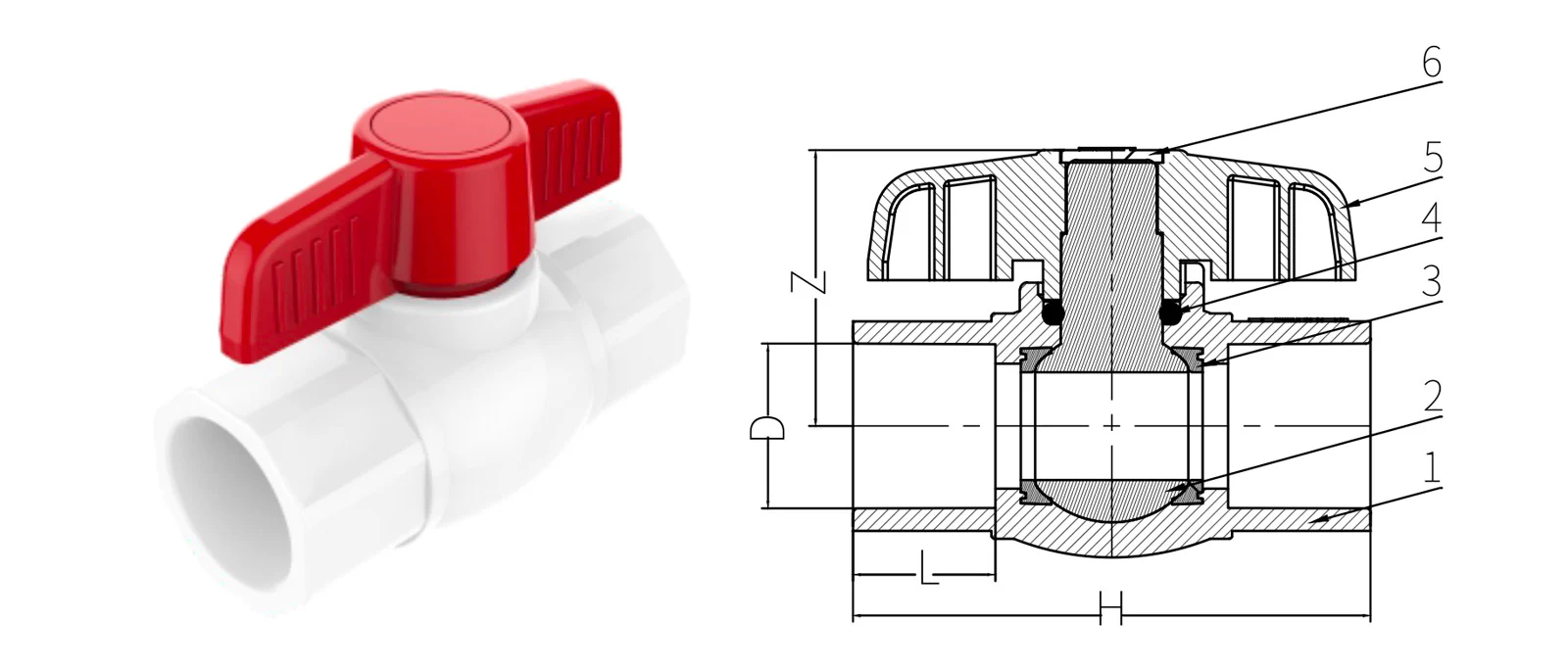

Technical Drawing
Bill of Materials
| NO. | PART | MATERIAL | QTY |
|---|---|---|---|
| 1 | Body | PVC | 1 |
| 2 | Valve Core | PP | 1 |
| 3 | Seat Seal | TPE / TPR | 2 |
| 4 | O–Ring | NBR / EPDM | 1 |
| 5 | Handle | ABS | 1 |
| 6 | Cap | ABS | 1 |
Measurement in (mm)
| OD(mm) | NPS (inch) | DN | GB | ANSI | JIS | B.S. | CNS | L | H | Z |
|---|---|---|---|---|---|---|---|---|---|---|
| Φ20 | 1/2″ | DN15 | 20 | 21.34 | 22.1 | 21.2 | 22.1 | 22.5 | 78 | 43.5 |
| Φ25 | 3/4″ | DN20 | 25 | 26.67 | 26.1 | 26.6 | 26.1 | 25.5 | 90.5 | 55 |
| Φ32 | 1″ | DN25 | 32 | 33.4 | 32.1 | 33.4 | 34.1 | 28.6 | 105.5 | 56.3 |
| Φ40 | 1-1/4″ | DN32 | 40 | 42.16 | 38.1 | 42.1 | 42.1 | 32 | 122.5 | 65.3 |
| Φ50 | 1-1/2″ | DN40 | 50 | 48.26 | 48.2 | 48.1 | 48.2 | 35 | 129 | 72 |
| Φ63 | 2″ | DN50 | 63 | 60.33 | 60.2 | 60.2 | 60.2 | 38.2 | 149 | 82 |
| Φ75 | 2-1/2″ | DN65 | 75 | 73 | 76.2 | 73 | 76.2 | 45 | 171 | 104.7 |
| Φ90 | 3″ | DN80 | 90 | 88.9 | 89.2 | 88.7 | 89.2 | 49 | 195 | 113.1 |
| Φ110 | 4″ | DN100 | 110 | 114.3 | 114 | 114.1 | 114.2 | 58 | 233 | 114.5 |
HD close-up of JARO PVC virgin raw material, showing pure and uniform pellets with every batch undergoing strict incoming inspection.
HD close-up of JARO PVC virgin raw material, showing pure and uniform pellets with every batch undergoing strict incoming inspection.
HD close-up of JARO PVC virgin raw material, showing pure and uniform pellets with every batch undergoing strict incoming inspection.
PVC Octagonal Ball Valve Applications
Industrial PVC ball valves providing reliable fluid control for wastewater treatment facilities.
Durable PVC piping valves for swimming pool water circulation and filtration systems.
Precision PVC fluid control valves for modern greenhouse and hydroponic irrigation systems.
Robust PVC ball valves empowering municipal engineering and commercial water feature systems.
FAQ
Find answers to the most frequently asked questions about our PVC octagonal ball valves below. Need more technical details or custom OEM solutions? Our engineering team is here to help.
The JRV15 is a heavy-duty industrial valve. Its core difference lies in its thickened valve body design, which provides structural strength and full-size pressure resistance that significantly exceeds standard PN16 ratings, making it capable of handling much harsher industrial environments.
During installation, it is crucial to ensure the pipeline is perfectly aligned to avoid additional stress. It is recommended to hand-tighten the union nuts first, then moderately reinforce them to avoid damage to the threads or seals caused by excessive force.
It can be combined with matching PVC-U pipe fittings (unions, elbows, tees, flanges, etc.) and valve products such as check valves and foot valves to form a complete pipeline system, making it incredibly easy for clients to expand their product lines.
Yes, we support OEM customization, including thread standards, valve body colors, and brand logos. We also offer complete product bundle solutions to meet the customized needs of different markets.
