Product Description
The JRV02 JARO Valve is a versatile PVC standard ball valve engineered for worldwide infrastructure applications. With multi-standard compatibility, full-bore flow, and reliable sealing, it serves water supply, irrigation, industrial processing, and building systems across diverse markets. OEM customization and bulk supply available.
Value Propositions
Globally Standardized Interface for Universal Deployment
Engineered to comply with major international piping standards, the JRV02 eliminates compatibility barriers across regional markets. A single SKU strategy simplifies inventory for distributors and contractors serving multiple countries, reducing procurement complexity.
Full-Bore Flow Path for Optimized Transmission

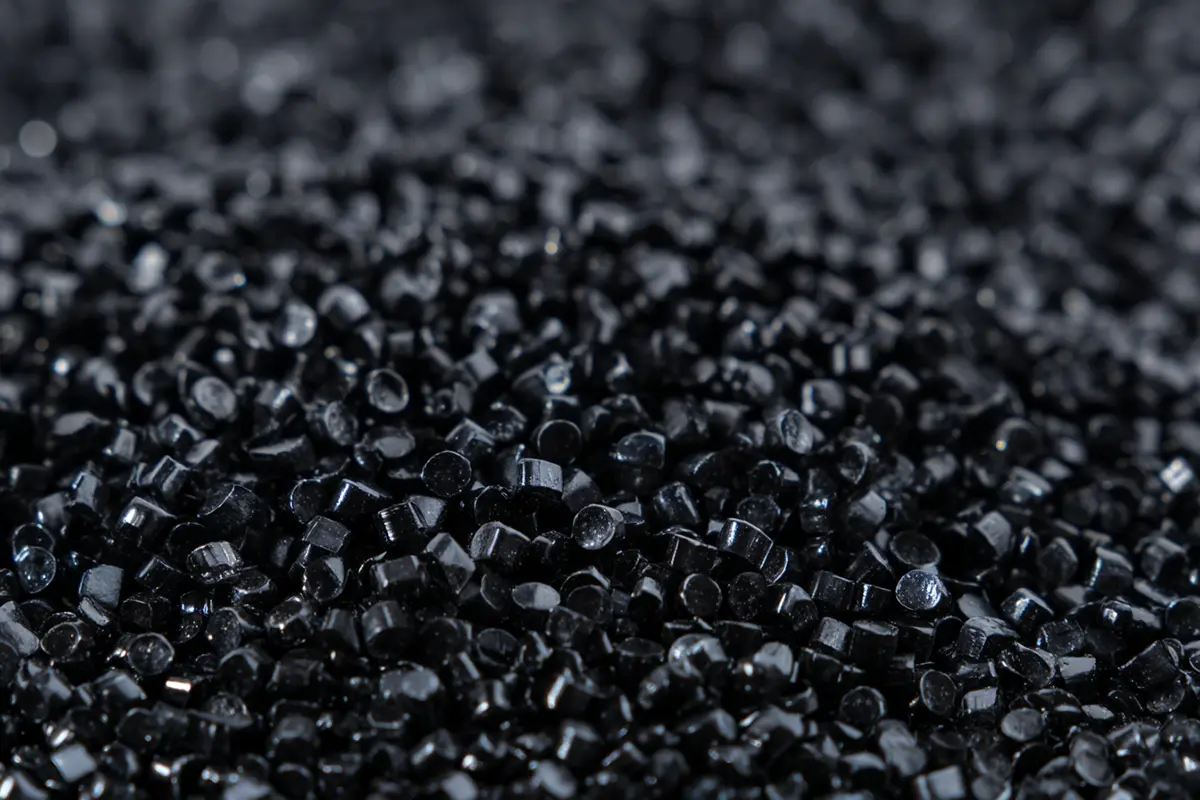

Virgin PVC Compound for Long-Term Durability
Versatile Positioning Across Market Segments
From agricultural irrigation to industrial water treatment and commercial building infrastructure, the JRV02's balanced performance and competitive pricing make it an ideal choice for distributors, contractors, and OEM partners seeking a reliable, high-volume standard valve.
Product Core Data
Measurement in (mm)
| NO. | Part | Materials | PCS |
|---|---|---|---|
| 1 | Handle | PP | 1 |
| 2 | Ball | PP | 1 |
| 3 | O-Ring | EPDM / NBR | 1 |
| 4 | Dody | PP | 1 |
| 5 | Seat Seal | TPU | 2 |
| 6 | Ball Cover | ABS | 1 |
Measurement in (mm)
| OD(mm) | NPS (inch) | DN | GB | ANSI | JIS | B.S. | CNS | L | W | H | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Φ20 | 1/2″ | DN15 | 20 | 21.34 | 22.1 | 21.2 | 22.1 | 70 | 39 | 64 | 19 |
| Φ25 | 3/4″ | DN20 | 25 | 26.67 | 26.1 | 26.6 | 26.1 | 80 | 45.5 | 73.3 | 21 |
| Φ32 | 1″ | DN25 | 32 | 33.4 | 32.1 | 33.4 | 34.1 | 95 | 55.3 | 87 | 25 |
| Φ40 | 1-1/4″ | DN32 | 40 | 42.16 | 38.1 | 42.1 | 42.1 | 106.8 | 67.5 | 99 | 26.5 |
| Φ50 | 1-1/2″ | DN40 | 50 | 48.26 | 48.2 | 48.1 | 48.2 | 123 | 77 | 113 | 31 |
| Φ63 | 2″ | DN50 | 63 | 60.33 | 60.2 | 60.2 | 60.2 | 142.7 | 92.3 | 130.8 | 35 |
| Φ75 | 2-1/2″ | DN65 | 75 | 73 | 76.2 | 73 | 76.2 | 173 | 164.5 | 180 | 41.5 |
| Φ90 | 3″ | DN80 | 90 | 88.9 | 89.2 | 88.7 | 89.2 | 228 | 191 | 196 | 65 |
| Φ110 | 4″ | DN100 | 110 | 114.3 | 114 | 114.1 | 114.2 | 256 | 216 | 218.5 | 65.5 |
Industry Applications
Agricultural & Landscape Irrigation
Provides reliable shut-off and flow control for large-area irrigation systems, with wear resistance under high-frequency operation cycles.
Civil & Industrial Water Treatment
Delivers corrosion resistance in water purification, distribution, and wastewater discharge pipelines, extending system maintenance-free cycles.
Medium length headline
Change the color to match your brand or vision, add your logo, choose the perfect layout, modify menu settings and more.
Medium length headline
Change the color to match your brand or vision, add your logo, choose the perfect layout, modify menu settings and more.
Medium length headline
Change the color to match your brand or vision, add your logo, choose the perfect layout, modify menu settings and more.
Long headline to turn your visitors into users
Headline
Founder & CEO
Medium length headline
Change the color to match your brand or vision, add your logo, choose the perfect layout, modify menu settings and more.
Medium length headline
Change the color to match your brand or vision, add your logo, choose the perfect layout, modify menu settings and more.
System Solutions
JARO Industry Provides Complete Fluid Pipeline System Support
By combining the JRV02 ball valve with our PVC socket fittings, unions, check valves, and dedicated water supply pipes, customers can build a complete system with consistent physical properties and excellent chemical compatibility — eliminating connection failures caused by material differences between different brands.
We support one-stop procurement solutions for pipeline systems, enhancing supply chain construction capability.
FAQ
Change the color to match your brand or vision, add your logo, choose the perfect layout, modify menu settings and more. Change the color to match your brand or vision, add your logo, choose the perfect layout, modify menu settings and more.
The octagonal shape is designed for professional installers. It provides flat surfaces for wrench placement, preventing the valve from slipping or cracking during high-torque tightening, which is a common issue with smooth-body valves.
Yes. Since JARO valves are made from high-purity PVC and use EPDM/NBR seals, they offer excellent resistance to most agricultural chemicals and fertilizers.
Absolutely. We support OEM services including custom logo embossing on the handle, specific color matching for the valve body (e.g., dark gray, white, or blue), and packaging tailored to your brand’s standards.
