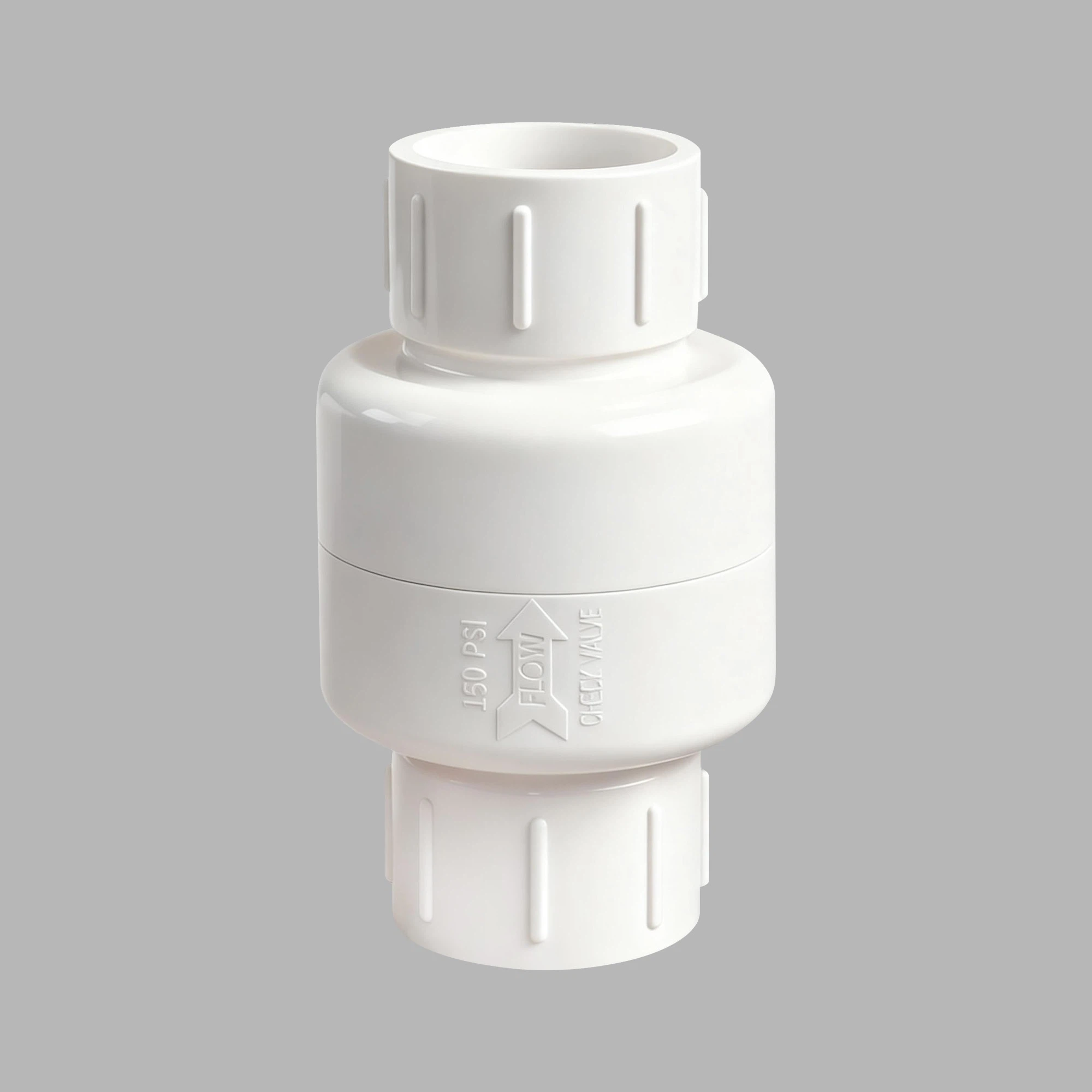

JARO JRV30 PVC Check Valve is an automatic non-return inline valve engineered to prevent fluid backflow and protect water pumps from water hammer shock in pressurized piping systems. Molded from 100% virgin PVC-U resin with resilient EPDM/FKM seals, it delivers low cracking pressure, tight sealing, and full flow efficiency across water treatment skids, agricultural irrigation, and industrial process lines. Every unit undergoes 100% factory pressure testing for zero-leak reliability.
Key Features & Advantages
Resilient 304 Spring Mechanism
Features a 304 stainless steel spring that retains tension over time for instant, leak-tight non-return sealing.
Low Cracking Pressure Sealing
Optimized internal seal geometry opens under minimal fluid head pressure, ensuring high hydraulic transmission efficiency and instant back-seal response.
100% Virgin PVC Construction
Molded from 100% virgin PVC-U compound under ISO 9001 certified quality systems, providing excellent resistance to water treatment chemicals and fertilizers.
100% Hydrostatic Pressure Tested
Every JRV30 check valve undergoes 100% factory hydrostatic shell and seat pressure testing prior to shipment, guaranteeing zero-leak back-seal integrity.
Multi-Standard Compatibility
Supports global piping standards (GB, DIN, ANSI, JIS, NPT, BSPT), simplifying replacement and stockholding for international MEP contractors.
Factory Direct & OEM Support
We provide professional plastic valve OEM services, custom brand laser marking, body color matching, and private label packaging for wholesale tenders.
Multiple Ball Material Options
JARO offers high-precision internal sealing components in PVC-U, CPVC, and engineering PP materials, customized to match specific chemical concentration, temperature limits, and fluid system compatibility requirements.
Multi-Standard Connection Compatibility
Engineered for global piping integration, JARO check valves support multiple socket and thread standards—including NPT, BSPT, GB, DIN, ANSI, and JIS—ensuring seamless replacement across international markets.
OEM Handle Customization
Multiple body color configurations, custom brand laser marking, and specialized inner box packaging options are available to help distributors create differentiated product lines in local markets.
100% Virgin Raw Materials
JARO strictly utilizes 100% virgin PVC-U resin compounds free from recycled impurities, ensuring uniform wall density, high tensile strength, and dependable long-term pressure ratings across every production batch.
Product Core Data
Technical Drawing
Bill of Materials
| No. | Name | Material Specification | Qty |
|---|---|---|---|
| 1 | Check Valve Body | 100% Virgin PVC-U (NSF Grade) | 1 |
| 2 | Disc / Cone Seal | EPDM / NBR / FKM | 1 |
| 3 | Spring (Optional) | Stainless Steel SS304 / SS316 | 1 |
| 4 | End Connector | 100% Virgin PVC-U | 2 |
Measurement Specifications in (mm)
| inch | DIN d (mm) | NPT T | BSPT | GB | ANSI | JIS | B.S. | CNS | L (mm) | W (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2″ | 20 | 14 | 14 | 20 | 21.34 | 22.1 | 21.2 | 22.1 | 98.7 | 51.0 | 65.0 |
| 3/4″ | 25 | 14 | 14 | 25 | 26.67 | 26.1 | 26.6 | 26.1 | 115.0 | 64.0 | 91.0 |
| 1″ | 32 | 11.5 | 11 | 32 | 33.40 | 32.1 | 33.4 | 34.1 | 120.0 | 72.0 | 101.5 |
| 1-1/4″ | 40 | 11.5 | 11 | 40 | 42.16 | 38.1 | 42.1 | 42.1 | 135.5 | 81.0 | 114.5 |
| 1-1/2″ | 50 | 11.5 | 11 | 50 | 48.26 | 48.2 | 48.1 | 48.2 | 146.3 | 94.0 | 130.8 |
| 2″ | 63 | 11.5 | 11 | 63 | 60.33 | 60.2 | 60.2 | 60.2 | 165.6 | 113.0 | 156.2 |
| 2-1/2″ | 75 | 11.5 | 11 | 75 | 73.00 | 76.2 | 73.0 | 76.2 | 206.6 | 143.0 | 189.4 |
| 3″ | 90 | 11.5 | 11 | 90 | 88.90 | 89.2 | 88.7 | 89.2 | 234.5 | 164.2 | 217.0 |
| 4″ | 110 | 11.5 | 11 | 110 | 114.30 | 114.0 | 114.1 | 114.2 | 280.5 | 207.0 | 265.5 |
Packaging Information
| Size (inch/mm) | PCS/CTN | Carton Size (L × W × H, m) | Weight (g/pc) |
|---|---|---|---|
| 1/2″ | 108 | 0.47 × 0.41 × 0.4 | 101 |
| 3/4″ | 120 | 0.47 × 0.4 × 0.455 | 140 |
| 1″ | 72 | 0.46 × 0.46 × 0.36 | 243 |
| 1-1/4″ | 60 | 0.445 × 0.445 × 0.395 | 345 |
| 1-1/2″ | 24 | 0.415 × 0.31 × 0.45 | 492 |
| 2″ | 24 | 0.495 × 0.375 × 0.5 | 768 |
| 2-1/2″ | 9 | 0.46 × 0.46 × 0.325 | 1477 |
| 3″ | 5 | 0.6 × 0.48 × 0.37 | 3140 |
| 4″ | 4 | 0.43 × 0.43 × 0.455 | 5500 |
Data Notes
- In the Packaging Information table, L × W × H refer strictly to outer export carton dimensions, not individual valve measurements.
- Actual carton gross weight and packing quantity may vary slightly based on customized handle branding, ball material selection, or palleted container loading requests.
- Valve dimensions shown elsewhere in the measurement table are separate product specifications. Please confirm final packaging requirements before placing bulk orders.
Applications for PVC Check Valves
Water Pump Discharge Lines
Installed downstream of water pumps to prevent backflow and absorb water hammer pressure surges when pumps shut down.
Industrial Water Treatment Skids
Ideal for chemical dosing skids, filtration systems, and process water loops requiring directional non-return flow control.
Agricultural & Greenhouse Irrigation
Prevents siphon backflow in agricultural fertilizer injection lines and greenhouse irrigation manifold systems.
Complete PVC-U System Components & Fittings
Build a fully compatible PVC piping network. Explore our matching PVC pipes, straight couplings, 90° elbows, check valves, and certified valves manufactured under ISO 9001 quality standards.
Need custom sizes, connections or OEM branding?
Frequently Asked Questions
Find answers to frequently asked questions about JARO PVC check valves below. For technical selection, OEM solutions, or project-specific requirements, please contact our sales and engineering team.
A PVC check valve automatically permits forward fluid flow and seals tight when reverse flow occurs, protecting pumps and upstream piping from water hammer and siphon backflow.
It is commonly installed immediately downstream of water pumps, chemical dosing lines, or filtration skids where backflow could damage equipment or contaminate supply lines.
Operating strictly under ISO 9001 quality management, JARO enforces a comprehensive ‘Triple-Check Quality Protocol’ across all manufacturing stages: (1) On-site workshop patrol inspections, (2) In-line visual inspections at every injection molding machine, and (3) 100% manual hand inspections during final packaging. In addition, 100% of all valve products undergo hydrostatic shell and seat pressure testing before shipment.
Yes. Through our plastic valve OEM services, JARO Industry provides custom body laser marking, barcoded packaging, and engineering submittal sheets required for wholesale tenders.
