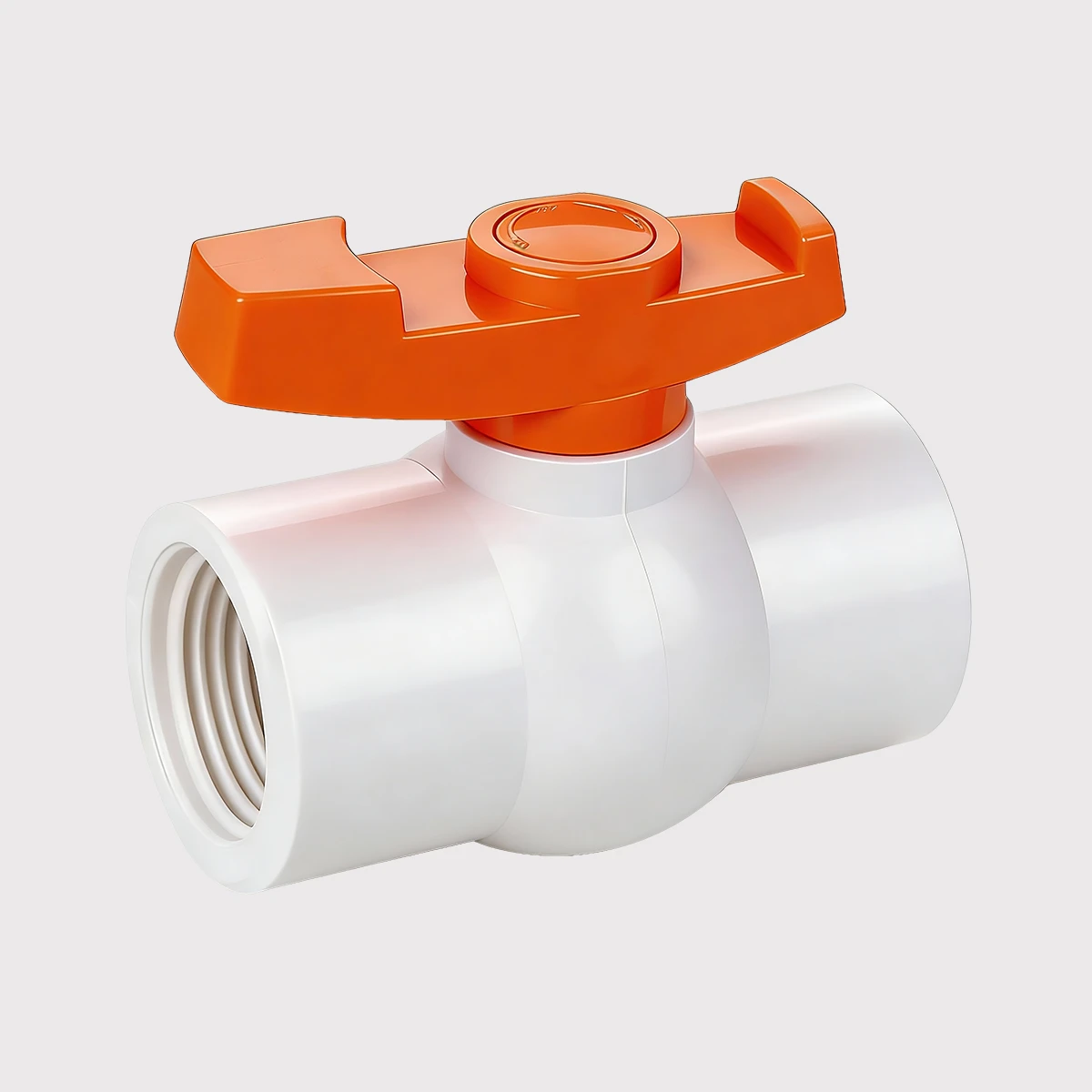

PVC ball valve

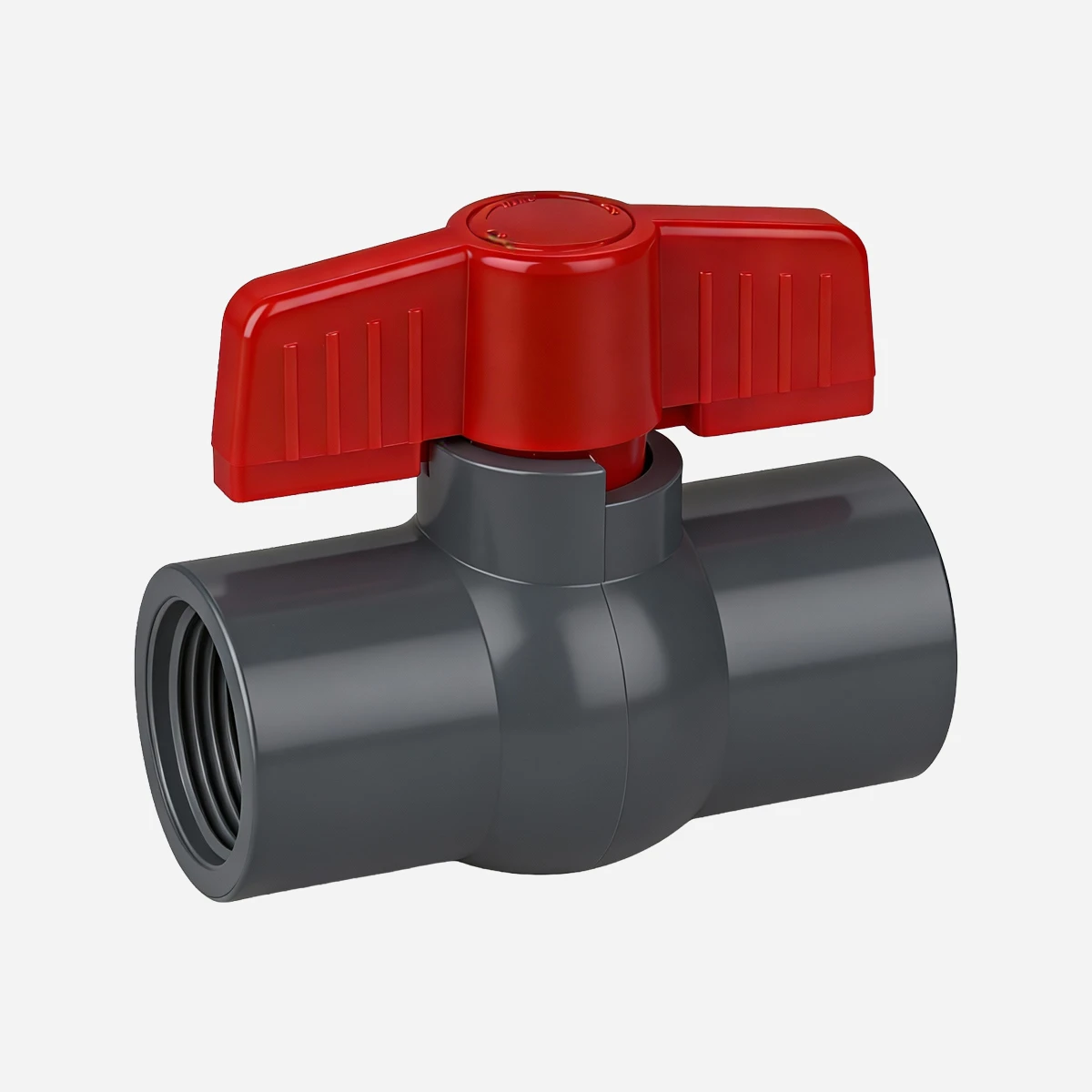

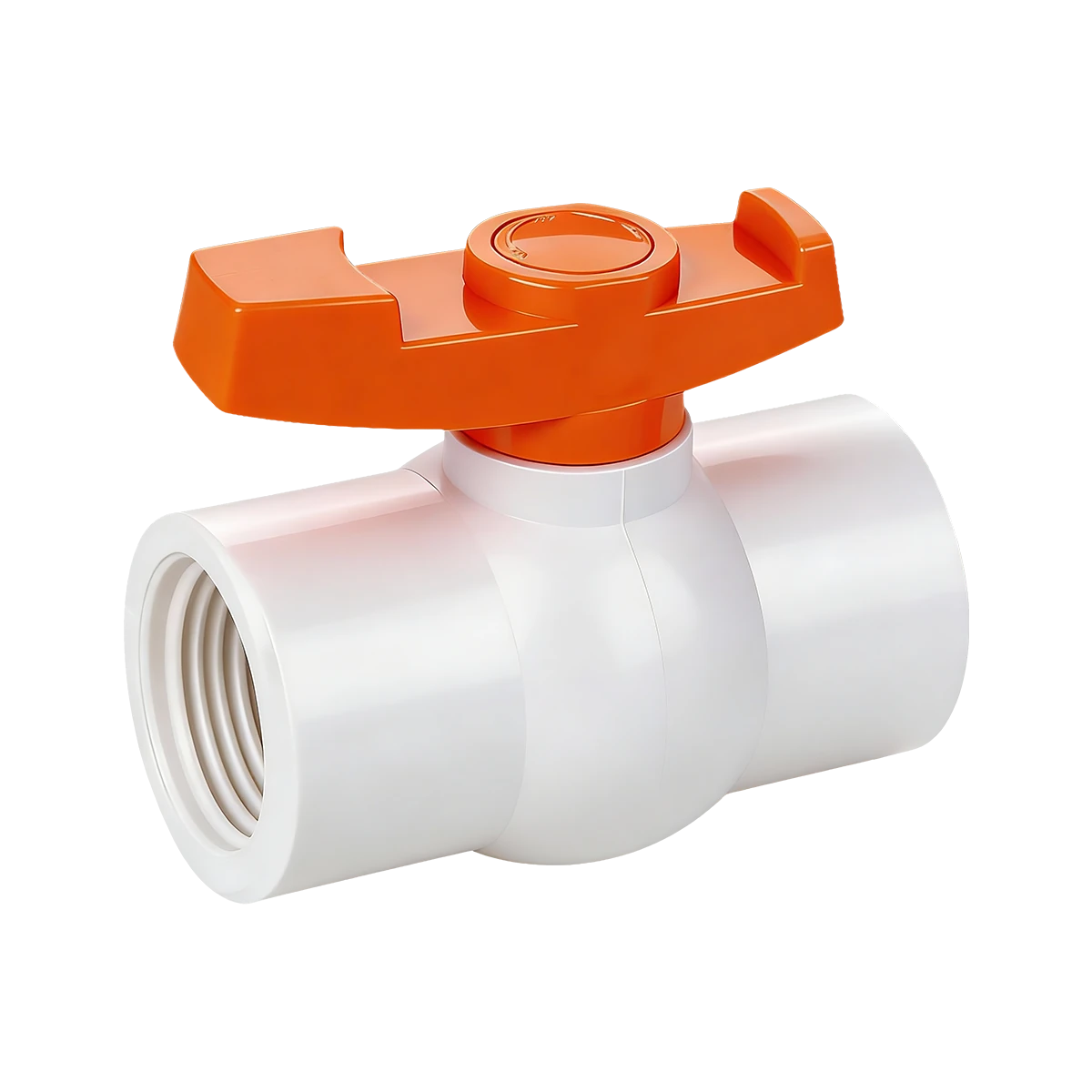

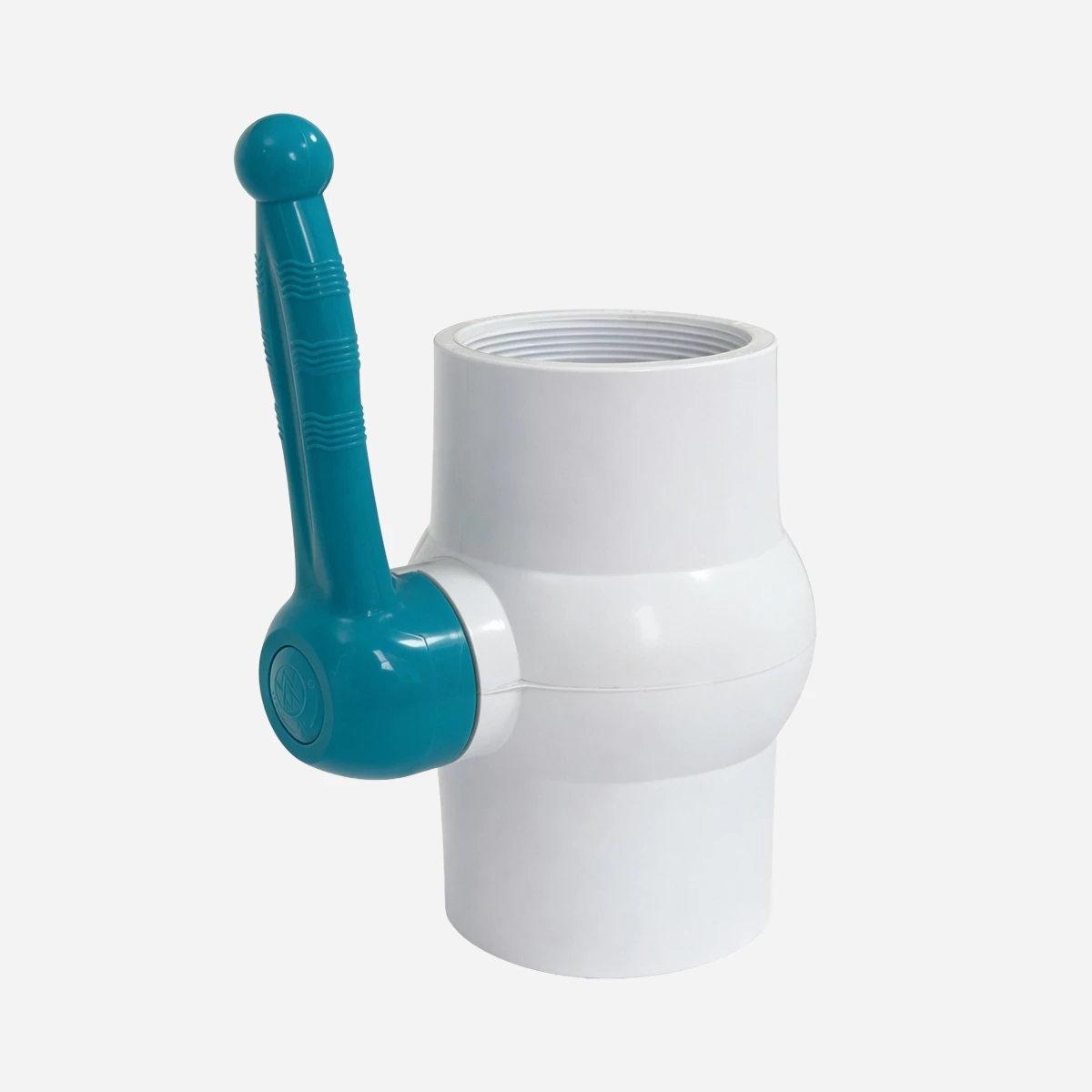

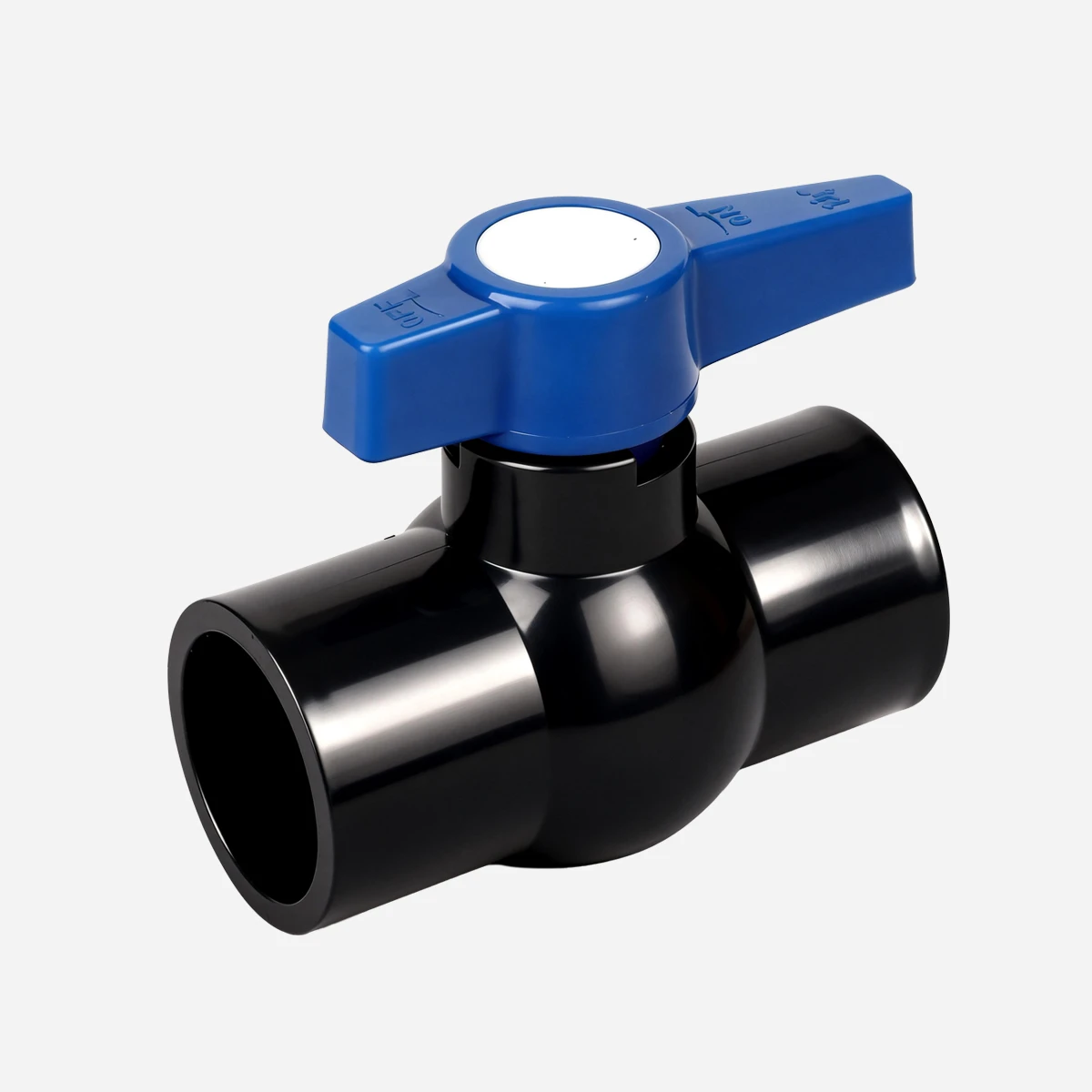

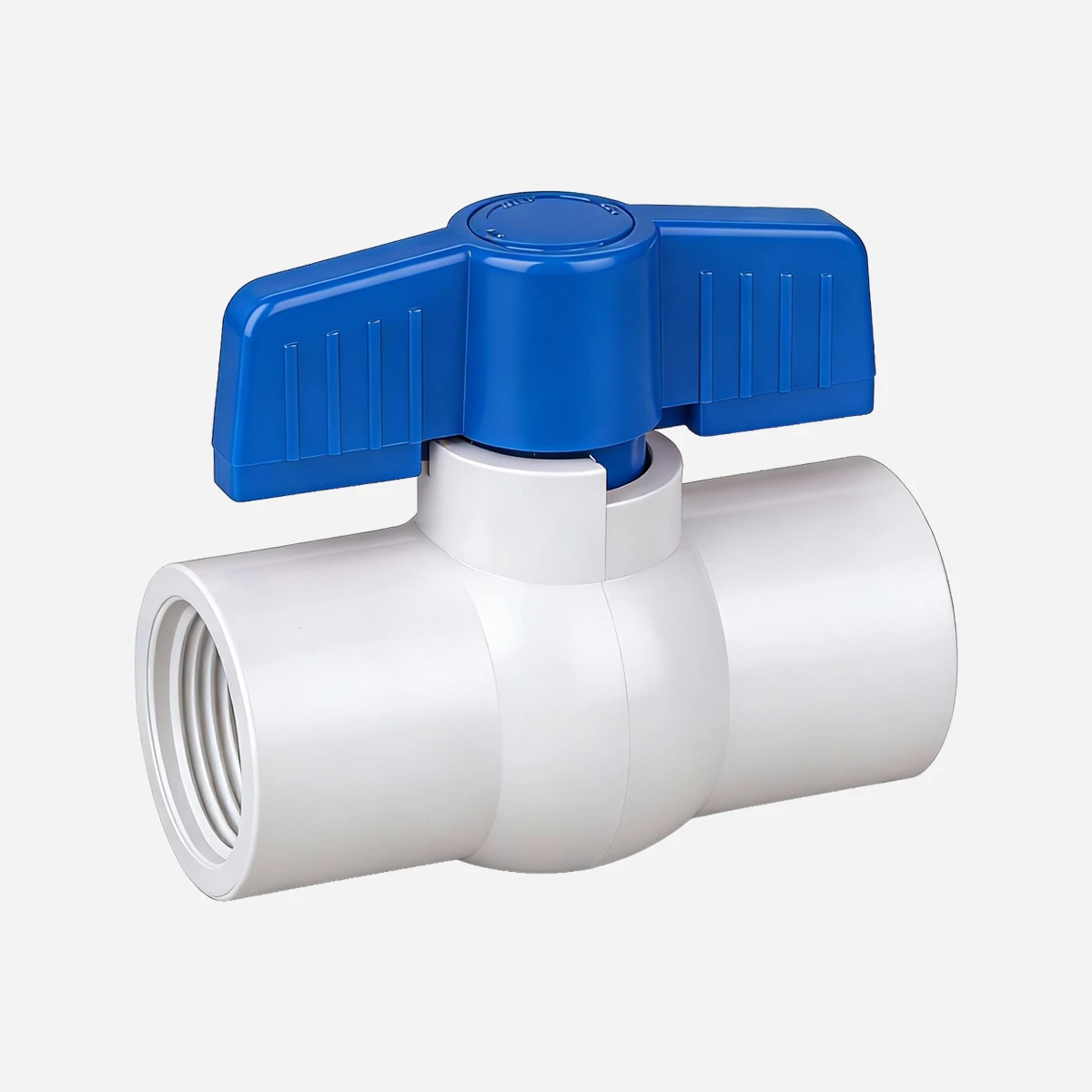

Product Name: JARO PVC Octagonal Ball Valve
Modal: JRV02
Size Range: 1/2″ (20mm) to 4″ (110mm)
Connection End: Socket (Glue) / Threaded
standards compatible；DIN / GB / ANSI / JIS / B.S. / CNS
Body Material: High-grade PVC (Virgin Resin) *¹
Working Pressure: PN10 / PN16 (Depending on size)
Temperature Range: 0°C to 55°C (32°F to 131°F) *²
Handle Type: Ergonomic T-Handle (PP Material)
Value Propositions
Octagonal Ergonomic Design
Patented design with multiple wrench contact points for easy installation and tightening, even in confined spaces.
Leak-Proof Sealing System
Equipped with double-layer TPU seals and EPDM/NBR O-rings to ensure leak-proof performance under high-pressure water circulation
Full-Borne Flow Rate
Designed for maximum flow rate and minimum pressure drop, optimizing efficiency for irrigation and industrial pumping systems.
Corrosion Resistance
Resistant to most acids, alkalis, and salts, making it the safest choice for agricultural and chemical water delivery
Product Core Data
Measurement in (mm)

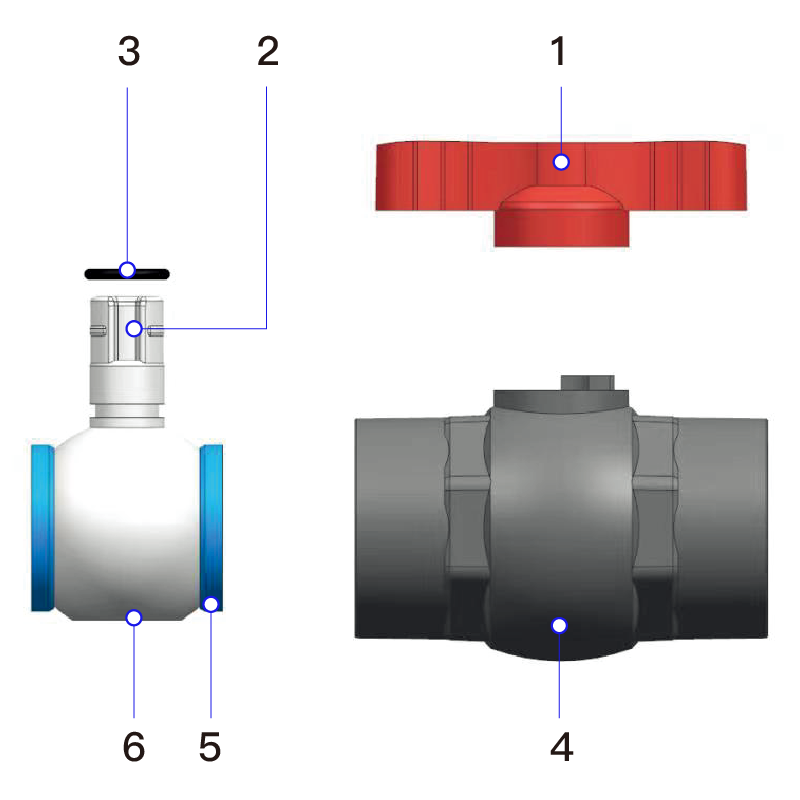

| NO. | Part | Materials | PCS |
|---|---|---|---|
| 1 | Handle | PP | 1 |
| 2 | Ball | PP | 1 |
| 3 | O-Ring | EPDM / NBR | 1 |
| 4 | Dody | PP | 1 |
| 5 | Seat Seal | TPU | 2 |
| 6 | Ball Cover | ABS | 1 |
Measurement in (mm)

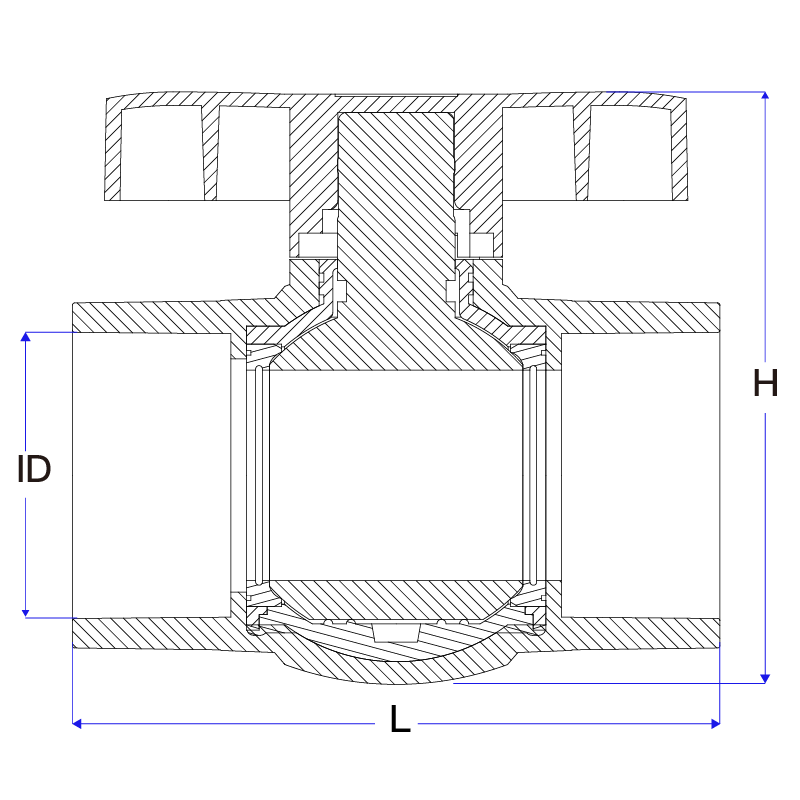

| OD(mm) | NPS (inch) | DN | GB | ANSI | JIS | B.S. | CNS | L | W | H | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Φ20 | 1/2″ | DN15 | 20 | 21.34 | 22.1 | 21.2 | 22.1 | 70 | 39 | 64 | 19 |
| Φ25 | 3/4″ | DN20 | 25 | 26.67 | 26.1 | 26.6 | 26.1 | 80 | 45.5 | 73.3 | 21 |
| Φ32 | 1″ | DN25 | 32 | 33.4 | 32.1 | 33.4 | 34.1 | 95 | 55.3 | 87 | 25 |
| Φ40 | 1-1/4″ | DN32 | 40 | 42.16 | 38.1 | 42.1 | 42.1 | 106.8 | 67.5 | 99 | 26.5 |
| Φ50 | 1-1/2″ | DN40 | 50 | 48.26 | 48.2 | 48.1 | 48.2 | 123 | 77 | 113 | 31 |
| Φ63 | 2″ | DN50 | 63 | 60.33 | 60.2 | 60.2 | 60.2 | 142.7 | 92.3 | 130.8 | 35 |
| Φ75 | 2-1/2″ | DN65 | 75 | 73 | 76.2 | 73 | 76.2 | 173 | 164.5 | 180 | 41.5 |
| Φ90 | 3″ | DN80 | 90 | 88.9 | 89.2 | 88.7 | 89.2 | 228 | 191 | 196 | 65 |
| Φ110 | 4″ | DN100 | 110 | 114.3 | 114 | 114.1 | 114.2 | 256 | 216 | 218.5 | 65.5 |
Faq
Frequently Asked Questions
Change the color to match your brand or vision, add your logo, choose the perfect layout, modify menu settings and more. Change the color to match your brand or vision, add your logo, choose the perfect layout, modify menu settings and more.
The octagonal shape is designed for professional installers. It provides flat surfaces for wrench placement, preventing the valve from slipping or cracking during high-torque tightening, which is a common issue with smooth-body valves.
Yes. Since JARO valves are made from high-purity PVC and use EPDM/NBR seals, they offer excellent resistance to most agricultural chemicals and fertilizers.
Absolutely. We support OEM services including custom logo embossing on the handle, specific color matching for the valve body (e.g., dark gray, white, or blue), and packaging tailored to your brand’s standards.
