In industrial wastewater treatment, agricultural irrigation, and municipal water handling, PVC-U Double Union Ball Valves (True Union Ball Valves) are widely selected for their chemical resistance and ease of inline maintenance.
However, fluid handling engineers and maintenance managers frequently encounter a frustrating operational issue: gradual seat seepage or body ring leakage after prolonged thermal cycling or pressure fluctuation.
When pipelines undergo ambient temperature swings or pressure surges, the polymer body expands and contracts. In conventional plastic union valves, this movement can cause the internal seat carrier to back out slightly, resulting in internal fluid bypass across the PTFE/TPV seat or external weeping around the EPDM O-rings.
This engineering guide explains the mechanical root causes of union valve leaks and details how optimized internal architecture—specifically the JRV22 PVC-U Double Union Ball Valve design—eliminates seepage through adjustable seal carrier mechanics and precision-molded virgin resin components.
1. Root Cause Analysis: Why Do Double Union Ball Valves Leak at the Carrier Ring?
A True Union Ball Valve relies on three critical sealing zones:
- The Ball Seat Seals (TPV/PTFE): Maintained under constant compressive force against the precision ball.
- The Body O-Rings (EPDM): Sealing the junction between the valve body and the end connectors.
- The Threaded Seal Carrier: The internal threaded ring that holds the ball seat in place inside the valve body.
The Thermal Cycling Mechanics
During thermal expansion and contraction (e.g., outdoor piping exposed to daytime solar heating and cool night temperatures):
- Linear Thermal Expansion: PVC-U exhibits a coefficient of thermal expansion (≈ 6.0 × 10⁻⁵ K⁻¹).
- Thread Relaxation: As the valve body expands axially, compressive force against the seat seal decreases. If the internal seal carrier lacks a secure locking mechanism or threaded adjustment capability, fluid pressure can force a micro-gap between the ball and seat.
2. Engineering Solution: Seal Carrier Adjustability and Low-Torque Mechanics
To prevent line shutdown and costly replacements, the JRV22 PVC-U Double Union Ball Valve incorporates an engineered internal architecture designed for long-term operational stability.
A. In-Line Threaded Seal Carrier Adjustment

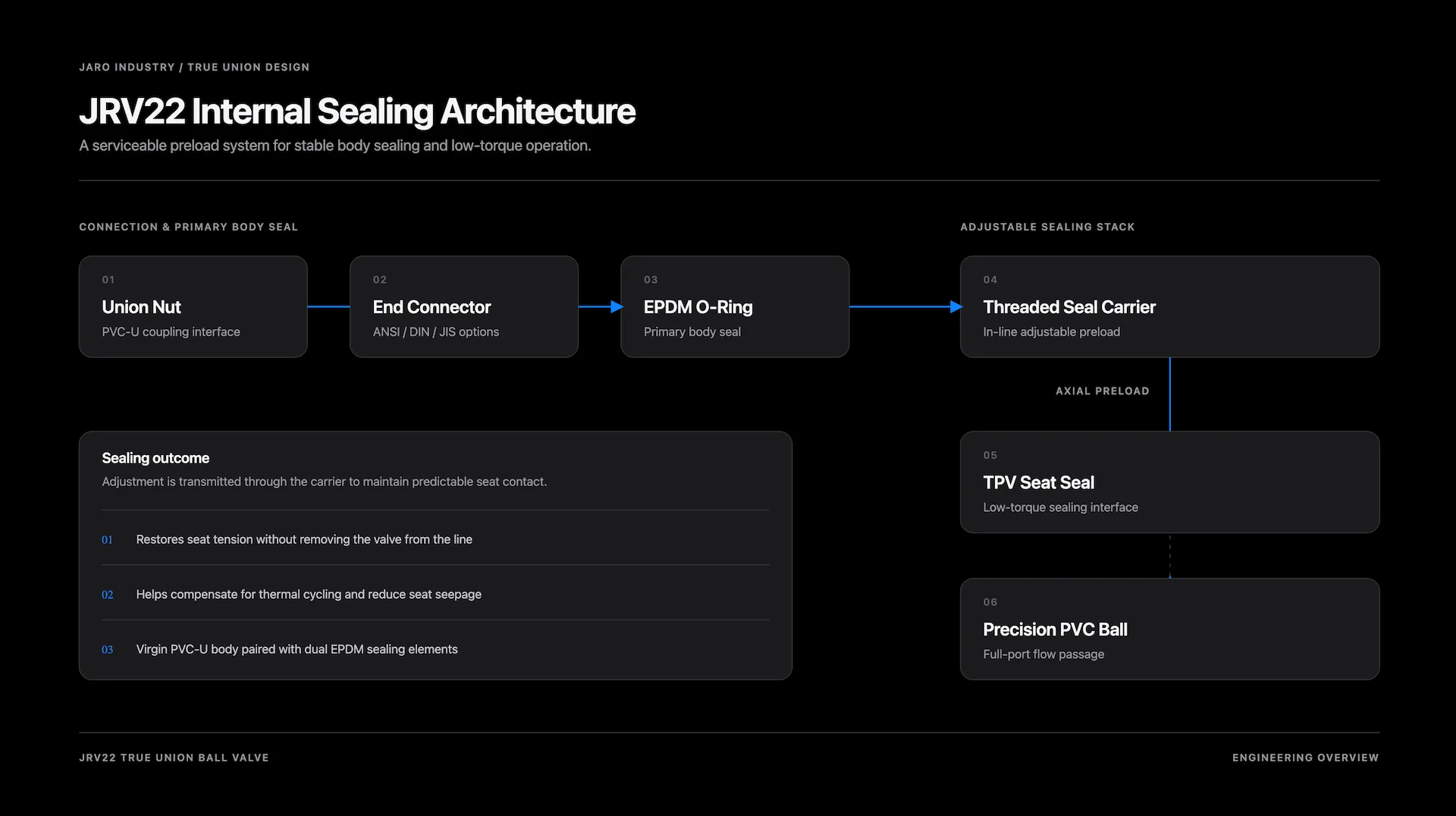

Unlike single-union or compact economy valves, the JRV22 features a precision-threaded internal seal carrier. If seat wear or minor thermal stress causes internal seepage over years of continuous service:
- In-Line Preload Restorability: Maintenance technicians can close the valve, disconnect one union nut while keeping the pipeline intact, and use the built-in handle lugs to tighten the internal carrier ring.
- Restored Tightness Without Disassembly: This simple adjustment restores original factory seat compression without requiring full valve replacement or line cutting.
B. Ergonomic Low-Torque Operation
High operating torque leads to handle breakage and operator fatigue in high-frequency irrigation or dosing systems. The JRV22 optimizes ball-seat contact geometry and utilizes dual EPDM stem O-rings, providing smooth opening and closing resistance while maintaining leak-tight sealing up to PN16 (232 PSI) for 1/2″–2″ sizes and PN10 (145 PSI) for 2-1/2″–4″ sizes.
3. Solving Sourcing Friction: Multi-Standard Global Connection Compatibility
For global distributors and EPC contractors managing projects across North America, Europe, Asia, and Latin America, stocking separate valve lines for different regional pipe standards increases inventory carrying costs.
The JRV22 platform solves interface conflicts by offering full multi-standard socket and thread compatibility from a single manufacturing source:
| REGIONAL STANDARD | SOCKET STANDARDS COMPATIBLE | THREADED OPTIONS COMPATIBLE |
|---|---|---|
| North America (US / Canada) | ANSI (ASTM D2467 / Sch 80) | NPT (ANSI B1.20.1) |
| Europe & International Metric | DIN (ISO 14236 / EN 10226) | BSPT (ISO 7-1) |
| Japan & East Asia | JIS (Japanese Industrial) | BSPT |
| China & General Purpose | GB / BS / CNS | BSPT / NPT |
By standardizing on a uniform body mold with interchangeable end connectors, distributors can fulfill ANSI, DIN, JIS, and GB piping tenders without changing valve body inventory.
4. Material Integrity & Certification Compliance: 100% Virgin PVC-U
Mechanical reliability begins with raw material purity. The JRV22 is manufactured exclusively using 100% Virgin PVC-U Resin (0% recycled regrind blend):
- Long-Term Hydrostatic Strength (LTHS): Ensures structural compliance with ASTM D2837 / ASTM D1598 sustained pressure requirements, avoiding premature brittle creep rupture.
- North American Drinking Water Certifications: The JRV22 series is verified for public health and mechanical standards including cUPC Listed, NSF/ANSI 61, and NSF/ANSI 372 lead-free compliance.
Technical Data Summary: JRV22 Model Specifications
- Model: JRV22 PVC-U Double Union Ball Valve
- Size Range: 1/2″ to 4″ (DN15 to DN100 / OD 20mm to 110mm)
- Pressure Rating: PN16 (1/2″–2″), PN10 (2-1/2″–4″)
- Body & Ball Material: 100% Virgin PVC-U Resin
- Sealing Components: EPDM O-Rings (3 Count), TPV Seat Seals
- Handle Material: Heavy-Duty ABS (Ergonomic Low-Torque Design)
- Temperature Range: 5°C to 70°C (Std.) / Down to -20°C (Optional Low-Temp Modification)
- Certifications: cUPC, NSF/ANSI 61, NSF/ANSI 372
Conclusion & Technical Resource Downloads
Eliminating fluid control failures requires combining proper engineering design with rigorous material selection. The JRV22 PVC-U Double Union Ball Valve provides fluid handling professionals with a reliable, maintenance-friendly solution engineered for long-term piping integrity.
