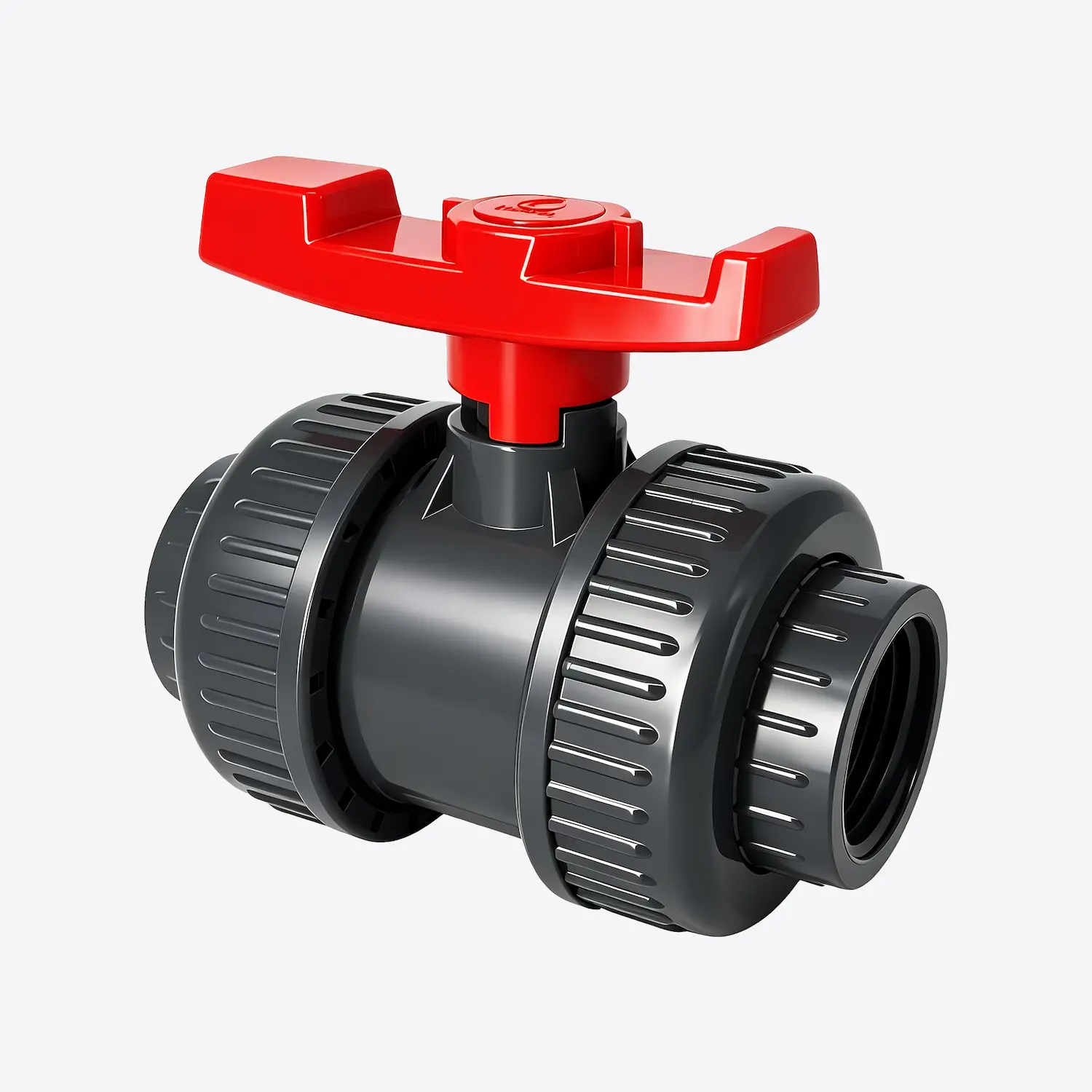

JRV22 PVC-U Double Union Ball Valve Overview
JARO JRV22 PVC-U Double Union Ball Valve (True Union Design) is an industrial-grade flow control valve engineered for global water supply, irrigation, water treatment, and industrial piping networks. Manufactured from 100% virgin PVC-U resin, it features an upgraded full-port internal structure, multi-standard socket/threaded compatibility, and easy inline maintenance for MEP contractors, backed by factory-direct wholesale supply, OEM customization, and stock availability for regional distributors.
Key Advantages of JARO Double Union Ball Valve
True Union Easy Maintenance
JARO JRV22 features a double true union design allowing quick valve body removal for seal inspection or replacement without cutting connected pipe runs.
Multi-Standard Compatibility
Molded to global standards including ANSI, DIN, JIS, GB, and BS socket dimensions with BSPT/NPT threads, enabling seamless integration across international markets.
100% Virgin Material & QC
Manufactured from 100% virgin PVC-U resin under ISO 9001 certified manufacturing systems, ensuring zero chemical contamination and long-term pressure stability.
100% Hydrostatic Pressure Tested
Every valve undergoes 100% factory hydrostatic shell and seat pressure testing to ensure zero leakage and full compliance with certified plastic valves standards.
Full Flow Low Friction Design
Upgraded internal sphere and seat architecture provides enlarged flow passages, minimizing head loss and torque resistance for smooth manual or automated operation.
Factory Direct & OEM Customization
Supported by dedicated mold tooling, JARO offers professional plastic valve OEM services, including custom handle colors, body branding, and export packaging.
Precision Manufacturing for Consistent Quality

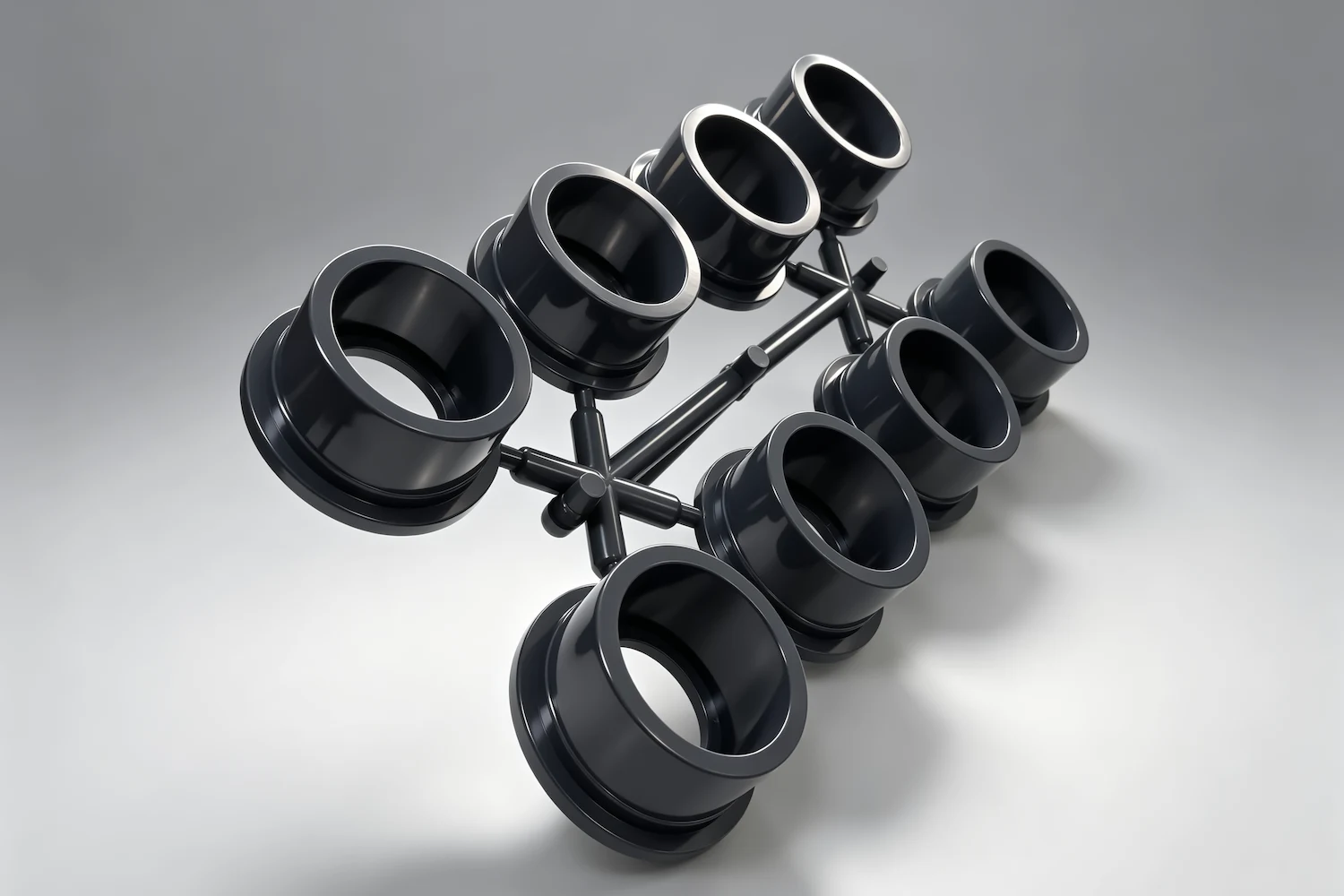

Developed with dedicated molds and controlled injection molding processes under ISO 9001 quality systems, JARO double union ball valves ensure consistent dimensions and reliable assembly performance for large-scale supply.
Multi-Standard Connection Compatibility
Available with multiple international connection standards, including ANSI, DIN, JIS, GB and BS socket options, as well as BSPT and NPT threaded connections for seamless global project installation.
Optimized Internal Structure Design

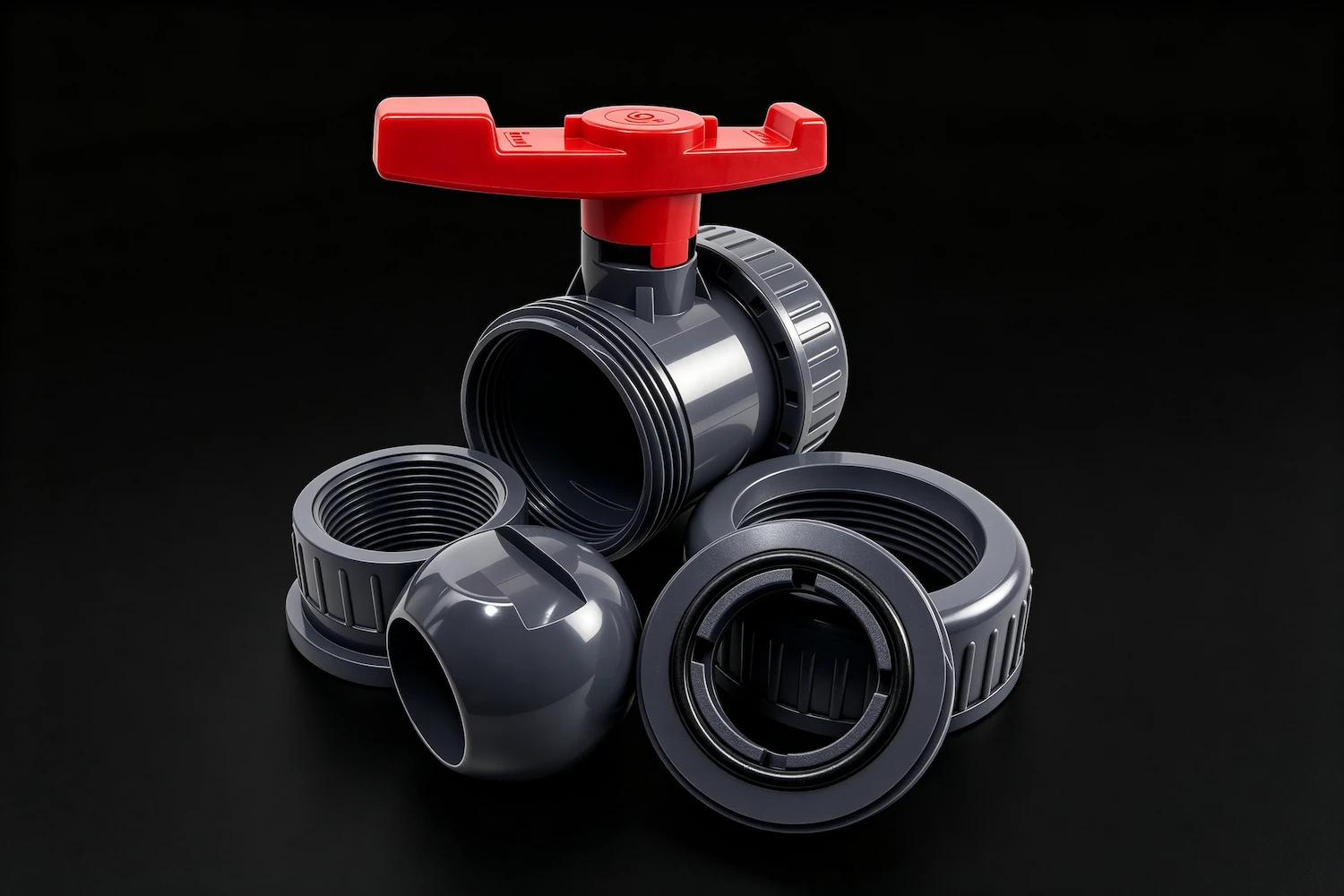

The upgraded internal structure features EPDM O-rings, TPV seat seals, enlarged flow passages, and smooth ball-seat interaction for low operating torque and long-term leak-proof sealing.
Product Core Data

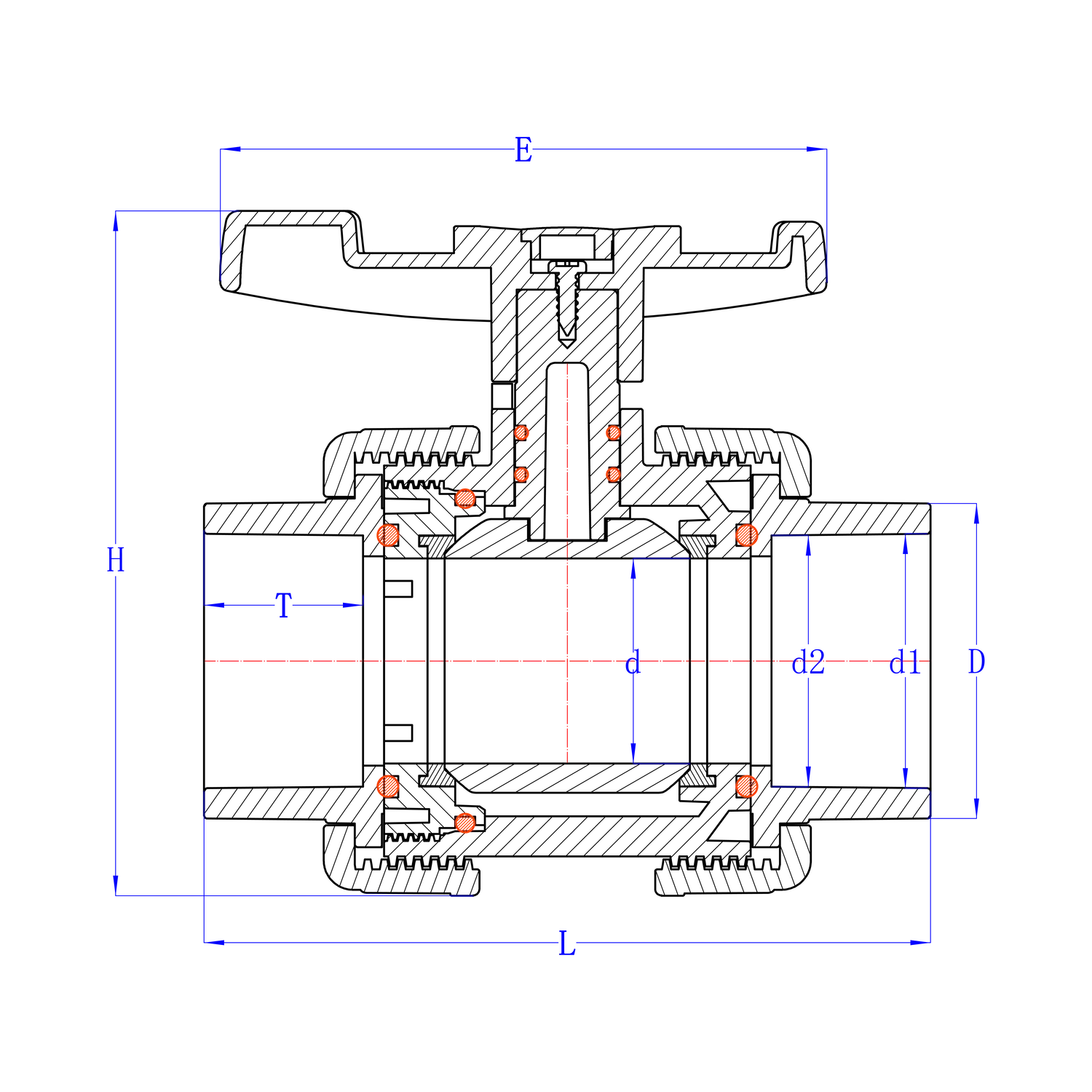

Technical Drawing

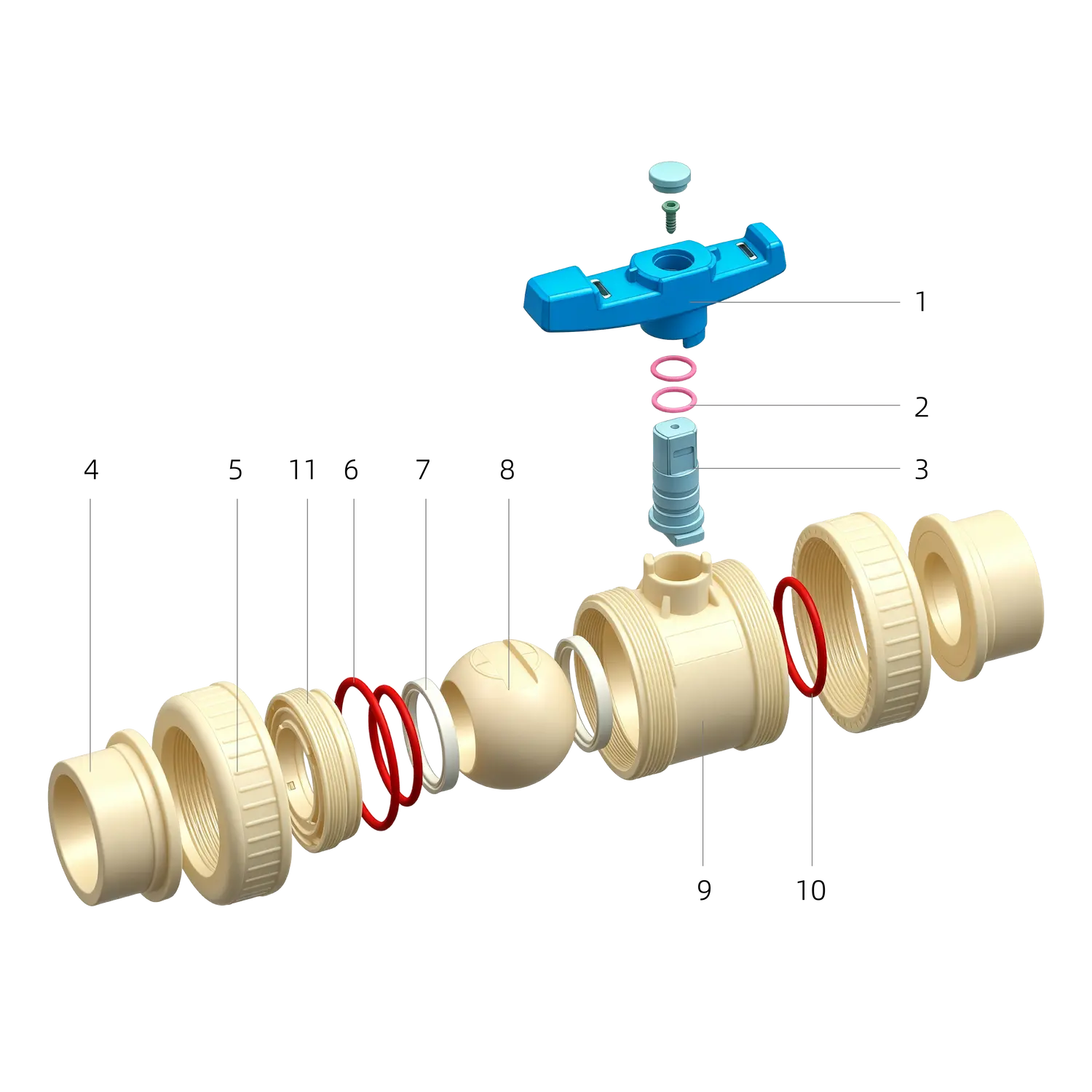

Bill of Materials
| NO. | PART | MATERIAL | QTY |
|---|---|---|---|
| 1 | Handle | ABS | 1 |
| 2 | O-Ring 1 | EPDM | 2 |
| 3 | Stem | 100% Virgin PVC-U | 1 |
| 4 | Socket | 100% Virgin PVC-U | 1 |
| 5 | Nut | 100% Virgin PVC-U | 1 |
| 6 | O-Ring 2 | EPDM | 2 |
| 7 | Seat Seal | TPV | 2 |
| 8 | Ball | 100% Virgin PVC-U | 1 |
| 9 | Body | 100% Virgin PVC-U | 1 |
| 10 | O-Ring 3 | EPDM | 1 |
| 11 | End Cap | 100% Virgin PVC-U | 2 |
Measurement Specifications in (mm)
| OD(mm) | NPS (inch) | DN | GB | ANSI | JIS | B.S. | CNS | L | H | D | d1 | d2 | d | T | E |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ฮฆ20 | 1/2″ | DN15 | 20 | 21.34 | 22.1 | 21.2 | 22.1 | 81 | 78 | 28.6 | 19.95 | 20.3 | 15 | 16.5 | 68 |
| ฮฆ25 | 3/4″ | DN20 | 25 | 26.67 | 26.1 | 26.6 | 26.1 | 91 | 88 | 34.8 | 24.95 | 25.3 | 20 | 19.5 | 76 |
| ฮฆ32 | 1″ | DN25 | 32 | 33.4 | 32.1 | 33.4 | 34.1 | 104 | 102 | 42.8 | 31.9 | 32.3 | 25 | 22 | 87 |
| ฮฆ40 | 1-1/4″ | DN32 | 40 | 42.16 | 38.1 | 42.1 | 42.1 | 121 | 116 | 51.6 | 39.9 | 40.35 | 30 | 26 | 102 |
| ฮฆ50 | 1-1/2″ | DN40 | 50 | 48.26 | 48.2 | 48.1 | 48.2 | 143 | 135 | 61.8 | 49.9 | 50.35 | 39 | 32 | 120 |
| ฮฆ63 | 2″ | DN50 | 63 | 60.33 | 60.2 | 60.2 | 60.2 | 174 | 164 | 75.3 | 62.9 | 63.4 | 49 | 38 | 145 |
| ฮฆ75 | 2-1/2″ | DN65 | 75 | 73 | 76.2 | 73 | 76.2 | 206 | 192 | 88.6 | 74.9 | 75.4 | 60 | 41.5 | 178 |
| ฮฆ90 | 3″ | DN80 | 90 | 88.9 | 89.2 | 88.7 | 89.2 | 241 | 224 | 105.8 | 89.9 | 90.5 | 74 | 51 | 209 |
| ฮฆ110 | 4″ | DN100 | 110 | 114.3 | 114 | 114.1 | 114.2 | 281 | 270 | 129.8 | 109.9 | 110.6 | 96 | 60 | 248 |
Packaging Information
| Size (inch/mm) | PCS/CTN | Carton Size (L ร W ร H, m) | Weight (g/pc) |
|---|---|---|---|
| 1/2″ | 120 | 0.5 ร 0.35 ร 0.3 | 120 |
| 3/4″ | 88 | 0.5 ร 0.35 ร 0.3 | 212 |
| 1″ | 64 | 0.5 ร 0.35 ร 0.3 | 290 |
| 1-1/4″ | 32 | 0.5 ร 0.35 ร 0.3 | 430 |
| 1-1/2″ | 24 | 0.5 ร 0.35 ร 0.3 | 606 |
| 2″ | 20 | 0.5 ร 0.35 ร 0.3 | 1005 |
| 2-1/2″ | 8 | 0.58 ร 0.35 ร 0.22 | 1840 |
| 3″ | 6 | 0.5 ร 0.35 ร 0.26 | 2820 |
| 4″ | 4 | 0.43 ร 0.46 ร 0.3 | 5190 |
Packaging Information
- In this Packaging Information table, L ร W ร H refer to the outer carton dimensions, not the valve dimensions.
- Actual carton dimensions and unit weight may vary by valve size, end connection configuration, ball material, handle material where applicable, quantity per carton, and agreed packaging method.
- Valve dimensions shown elsewhere on this page are separate measurements. Please confirm final packaging requirements before ordering.
PVC-U Double Union Ball Valve Applications
Industrial PVC double union ball valves providing reliable flow isolation for water treatment facilities.
Durable PVC true union valves for swimming pool circulation, filtration, and commercial aquaculture systems.
Precision PVC fluid control valves for modern greenhouse, agricultural, and hydroponic irrigation systems.
Robust, multi-standard PVC ball valves empowering municipal engineering suppliers and regional stockists.
Complete PVC-U System Components & Fittings
Build a fully compatible PVC piping network. Explore our matching PVC pipes, straight couplings, 90ยฐ elbows, check valves, and certified valves manufactured under ISO 9001 quality standards.
PVC-U Double Union Ball Valve FAQs
Design, Quality Control & OEM Solutions
Learn more about PVC-U Double Union Ball Valve design, connection standards, quality control testing, and OEM customization options from JARO Industry.
JARO’s PVC-U Double Union Ball Valve is developed with an upgraded internal structure, full-port flow passage, EPDM O-rings, and TPV seat seals. Designed for smooth, low-torque operation, it provides long-term sealing reliability for water distribution and industrial piping systems.
The true double union design allows the central valve body to be unthreaded and removed without cutting or altering the connected pipeline. This significantly reduces downtime and maintenance labor for MEP contractors and industrial engineers.
Operating strictly under ISO 9001 certified manufacturing systems, JARO enforces a ‘Triple-Check Quality Protocol’: (1) On-site workshop patrol inspections, (2) In-line visual inspections at every injection molding machine, and (3) 100% manual hand inspections during final packaging. Crucially, 100% of all valve products undergo hydrostatic shell and seat pressure testing before shipment to guarantee leak-free delivery.
JARO JRV22 supports both socket and threaded connection options. Available standards include ANSI, DIN, JIS, GB, BS, and CNS socket dimensions, as well as BSPT and NPT threaded options for international distributors.
Yes. Through our plastic valve OEM services, JARO Industry provides custom handle color molding, laser brand marking, customized inner boxes, and export master carton packaging tailored for global distributors.
