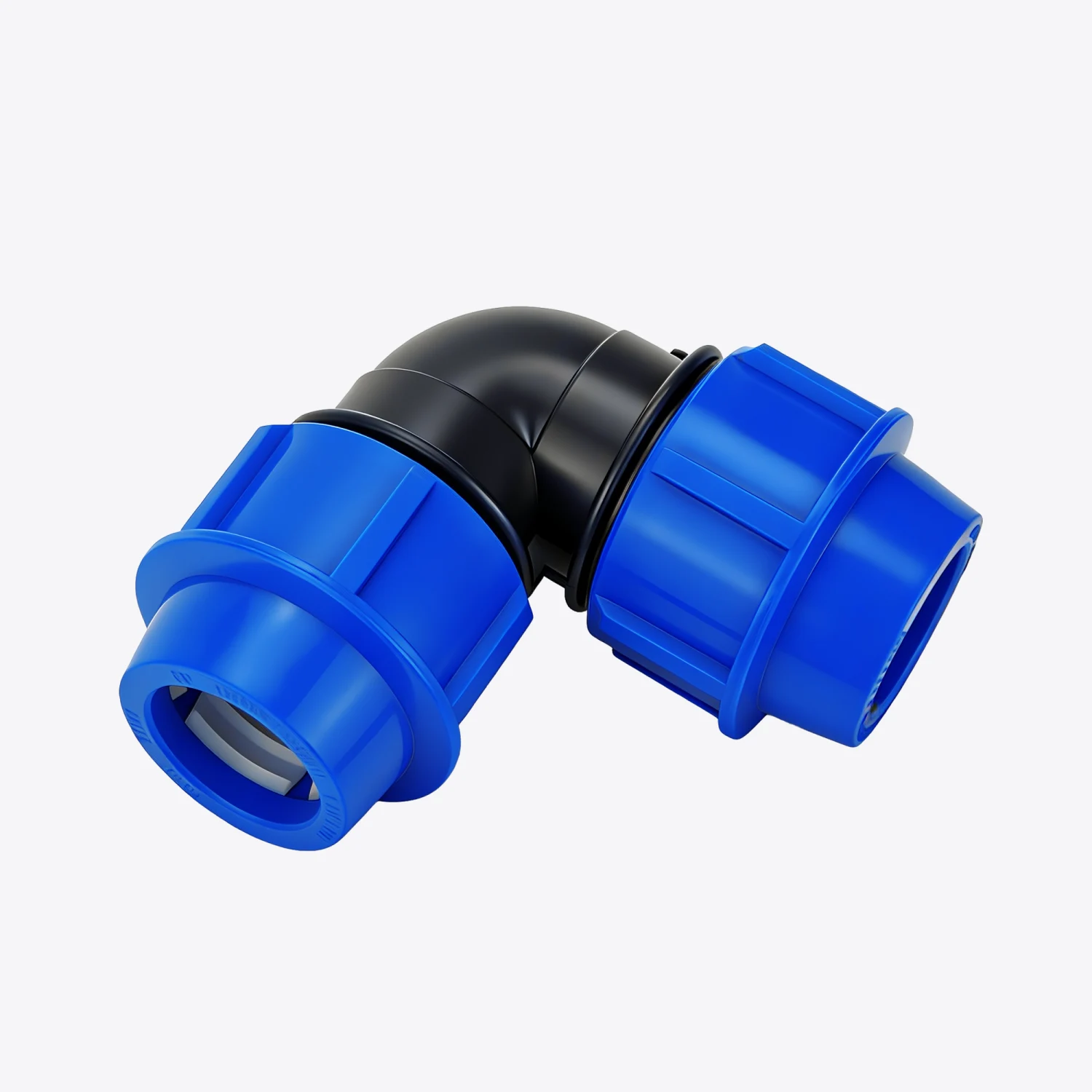

JARO PP 90° equal elbow compression fittings connect compatible plastic pipes of the same size while changing the pipeline direction by 90 degrees. Each compression end uses the series four-segment locking ring for a convenient mechanical connection in irrigation, water distribution, and general piping layouts.
Key Features & Advantages
Innovative Locking Design
The four-claw grip ring securely locks onto the pipe under tension, enhancing pull-out resistance for irrigation, water supply and outdoor piping systems.
PN16 Pressure Performance
Designed for demanding water supply and irrigation applications with optimized body strength, locking structure and sealing performance.
Reliable Sealing System
Multi-component sealing design combines O-ring, compression ring, grip ring and nut for stable performance under pressure variations.
Complete Fitting Solutions
A full range of tees, elbows, reducers, threaded adapters, end caps and saddles for complete piping system solutions.
Reinforced Body Structure
Thicker body design with trapezoidal ribs helps distribute installation torque and internal pressure, reducing stress concentration for enhanced structural stability.
100% Virgin Material
Manufactured with 100% virgin PP material to ensure consistent mechanical performance, durability and long-term reliability.
Multi-Directional Grip Ring
Four-claw grip ring design distributes forces in multiple directions, adapting to pipe deformation and dimensional variations for secure locking.
Product Core Data

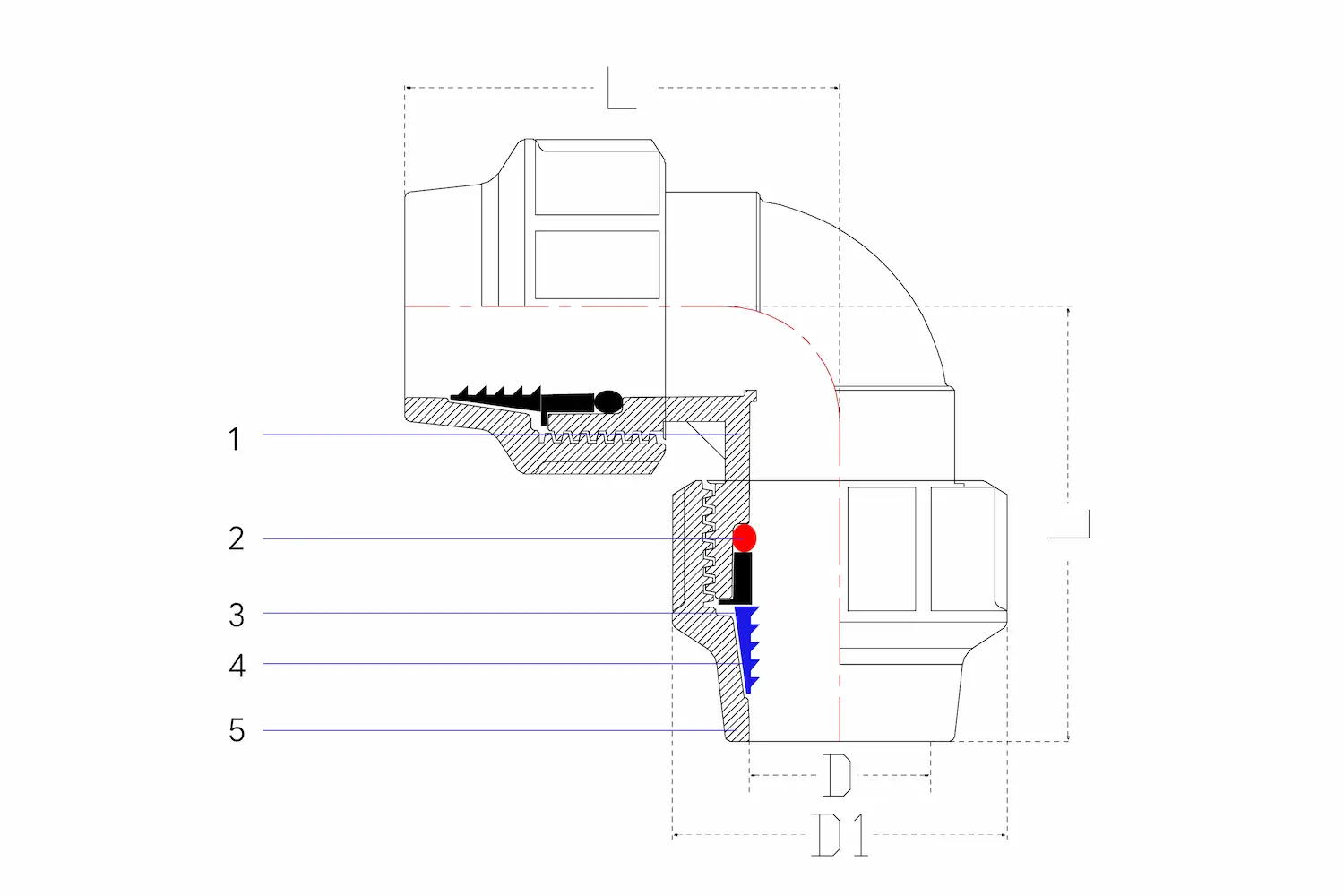

Technical Drawing
Bill of Materials
| No. | Name | Material | Qty |
|---|---|---|---|
| 1 | Nut | PP-B | 2 |
| 2 | Clamping Ring | POM | 2 |
| 3 | Thrust Ring | PP | 2 |
| 4 | O-Ring | NBR (or EPDM) | 2 |
| 5 | Body | PP-B | 1 |
Measurement in (mm)
| size(mm) | DIN | GB | ANSI | B.S. | PN | D(mm) | D1(mm) | L(mm) |
|---|---|---|---|---|---|---|---|---|
| 20 | 20 | 20 | 21.34 | 21.2 | 16 | 20 | 46 | 45 |
| 25 | 25 | 25 | 26.67 | 26.6 | 16 | 25 | 55 | 55 |
| 32 | 32 | 32 | 33.4 | 33.4 | 16 | 32 | 63 | 60 |
| 40 | 40 | 40 | 42.16 | 42.1 | 16 | 40 | 80 | 70 |
| 50 | 50 | 50 | 48.26 | 48.1 | 16 | 50 | 96 | 84 |
| 63 | 63 | 63 | 60.33 | 60.2 | 16 | 63 | 115 | 102 |
| 75 | 75 | 75 | 73 | 73 | 10 | 75 | 129 | 121 |
| 90 | 90 | 90 | 88.9 | 88.7 | 10 | 90 | 155 | 135 |
| 110 | 110 | 110 | 114.3 | 114.1 | 10 | 110 | 184 | 190 |
Applications for PP 90° Equal Elbow Compression Fittings
Irrigation Corner Routing
Change the direction of equal-size irrigation lines at field corners and branch layouts.
Water Distribution Layouts
Route compatible plastic piping around equipment, walls, or site geometry.
Landscape and Greenhouse Systems
Build compact 90-degree turns in water-supply networks where a mechanical fitting is preferred.
FAQ
Find answers about JARO PP 90° equal elbow compression fittings. Verify the pipe outside diameter and pressure rating for the selected size before ordering.
Yes. This is an equal elbow, so both compression ends are intended for the same nominal pipe size.
No. The fitting uses compression nuts and four-segment locking rings. Follow the installation guidance and ensure pipe ends are clean and square.
Yes. JARO can support OEM discussions for branding, packaging, and other confirmed project requirements.
The supplied product information lists PN16 for 20–63 mm and PN10 for 75–110 mm. Confirm the required size and operating conditions during selection.
