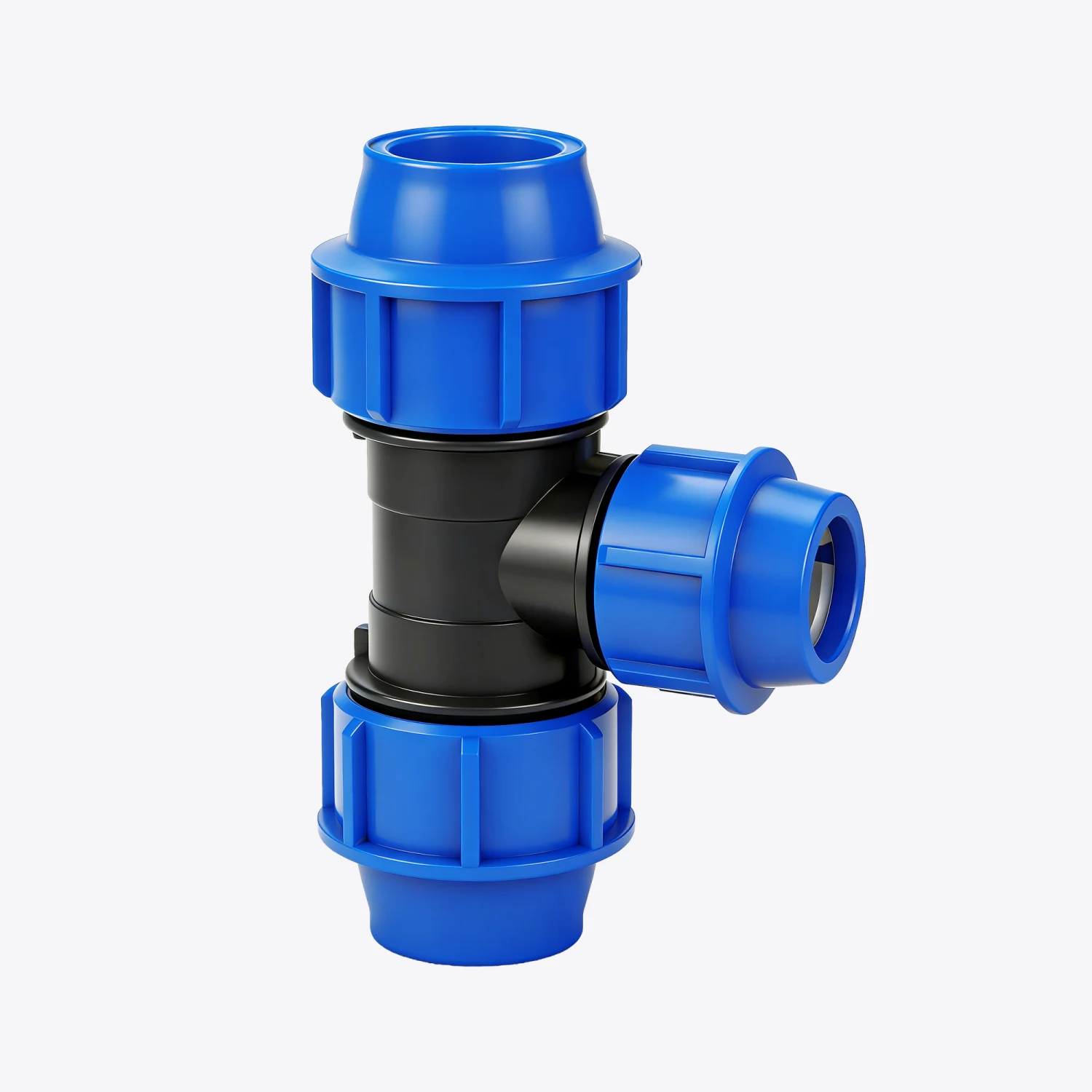

JARO PP reducing tee compression fittings provide a three-way connection with a reduced branch for compatible plastic pipe systems. Built around the PP compression-fitting platform and four-segment locking rings, the fitting supports practical branch sizing in irrigation, water-distribution, and general piping projects.
Key Features & Advantages
Reduced-Branch Layout
The fitting combines a main-run connection with a smaller branch option, helping designers adapt branch flow capacity to the pipe layout.
Four-Segment Mechanical Locking
The segmented locking ring at each compression port provides the seriesโ mechanical pipe-gripping approach during nut tightening.
One Fitting for a Size Transition
A reducing tee can form a branch and a pipe-size change in one component, reducing the need to build a multi-fitting assembly.
PP Compression Construction
The PP body and compression assembly are suited to compatible plastic-pipe systems where heat fusion or solvent cement is not part of the installation plan.
Reinforced Body Structure
Thicker body design with trapezoidal ribs helps distribute installation torque and internal pressure, reducing stress concentration for enhanced structural stability.
100% Virgin Material
Manufactured with 100% virgin PP material to ensure consistent mechanical performance, durability and long-term reliability.
Multi-Directional Grip Ring
Four-claw grip ring design distributes forces in multiple directions, adapting to pipe deformation and dimensional variations for secure locking.
Product Core Data

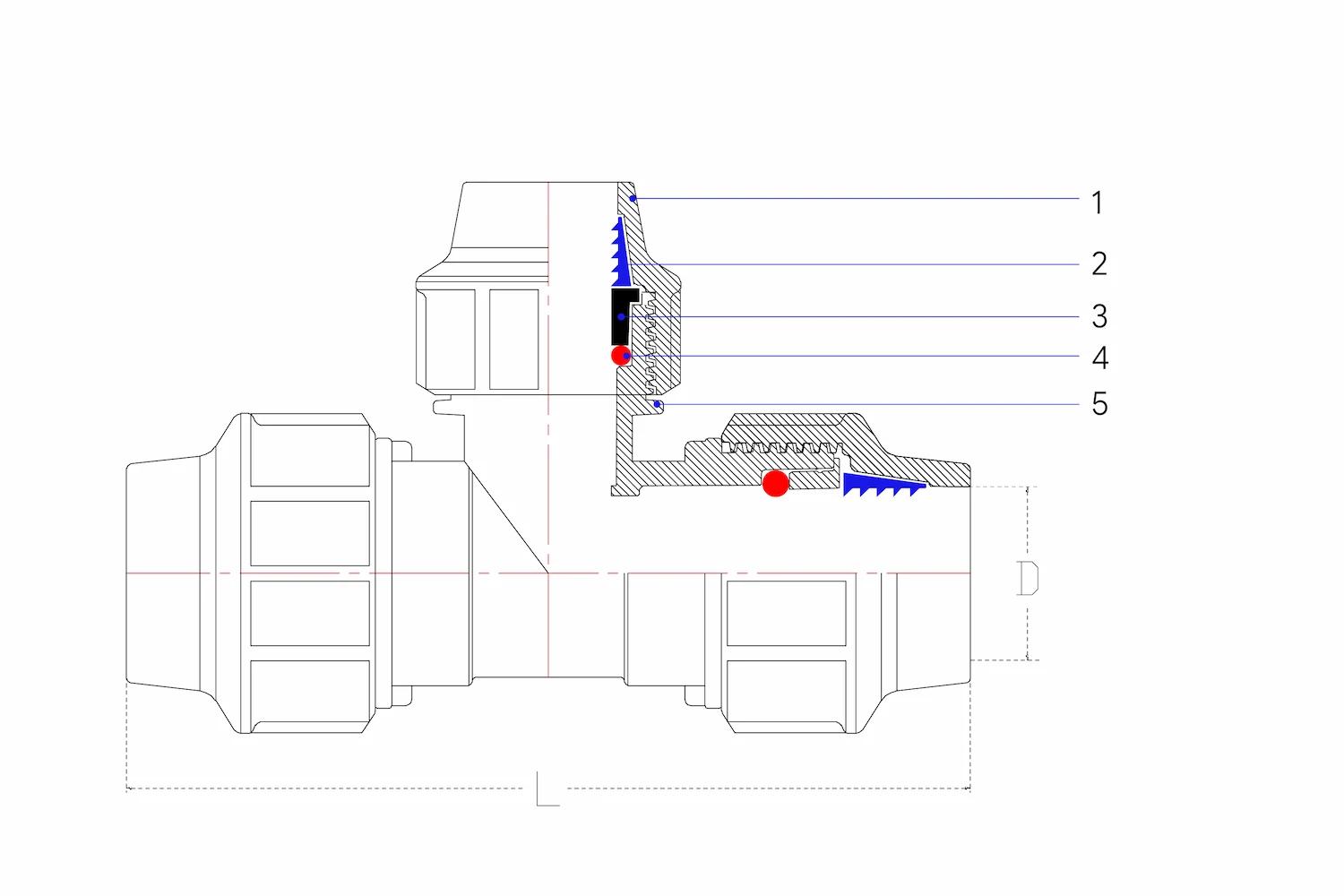

Technical Drawing
Bill of Materials
| No. | Name | Material | Qty |
|---|---|---|---|
| 1 | Nut | PP-B | 3 |
| 2 | Clamping Ring | POM | 3 |
| 3 | Thrust Ring | PP | 3 |
| 4 | O-Ring | NBR (or EPDM) | 3 |
| 5 | Body | PP-B | 1 |
Measurement in (mm)
| size(mm) | DIN | GB | ANSI | B.S. | PN | D(mm) | D1(mm) | L(mm) |
|---|---|---|---|---|---|---|---|---|
| 25X20X25 | 25 | 25 | 26.67 | 26.6 | 16 | 25X20 | 55 | 164 |
| 32X20X32 | 32 | 32 | 33.4 | 33.4 | 16 | 32X20 | 63 | 190 |
| 32X25X32 | 32 | 32 | 33.4 | 33.4 | 16 | 32X25 | 63 | 190 |
| 40X25X40 | 40 | 40 | 42.16 | 42.1 | 16 | 40X25 | 80 | 218 |
| 40X32X40 | 40 | 40 | 42.16 | 42.1 | 16 | 40X32 | 80 | 218 |
| 50X25X50 | 50 | 50 | 48.26 | 48.1 | 16 | 50X25 | 96 | 268 |
| 50X32X50 | 50 | 50 | 48.26 | 48.1 | 16 | 50X32 | 96 | 268 |
| 50X40X50 | 50 | 50 | 48.26 | 48.1 | 16 | 50X40 | 96 | 268 |
| 63X32X60 | 63 | 63 | 60.33 | 60.2 | 16 | 63X32 | 115 | 334 |
| 63X40X63 | 63 | 63 | 60.33 | 60.2 | 16 | 63X40 | 115 | 334 |
| 63X50X60 | 63 | 63 | 60.33 | 60.2 | 16 | 63X50 | 115 | 334 |
| 75X50X74 | 75 | 75 | 73 | 73 | 10 | 75X50 | 129 | 396 |
| 75X63X75 | 75 | 75 | 73 | 73 | 10 | 75X63 | 129 | 396 |
| 90X63X90 | 90 | 90 | 88.9 | 88.7 | 10 | 90X63 | 155 | 440 |
| 90X75X90 | 90 | 90 | 88.9 | 88.7 | 10 | 90X75 | 155 | 440 |
| 110X90X110 | 110 | 110 | 114.3 | 114.1 | 10 | 110X90 | 184 | 556 |
Applications for PP Reducing Tee Compression Fittings
Reduced-Branch Irrigation
Create a smaller branch from a main irrigation line while retaining a mechanical compression connection.
Water Distribution Networks
Distribute flow to a reduced service line from a larger compatible pipe run.
Landscape and Greenhouse Projects
Build branch layouts with pipe-size changes for zone-based water delivery.
FAQ
Find answers about JARO PP reducing tee compression fittings. Please provide the outside diameter of the main run and branch pipe to confirm the correct size combination.
A reducing tee has at least one port sized differently from the others, while an equal tee uses the same nominal size at all three ports.
Yes. This product is organized as part of the PP compression-fitting series, with a PP body and four-segment locking-ring concept.
PN10 or PN16 availability depends on the final size combination. Confirm the specific combination and project duty before ordering.
Yes. JARO can discuss the required size combinations, branding, color, and packaging for OEM supply.
