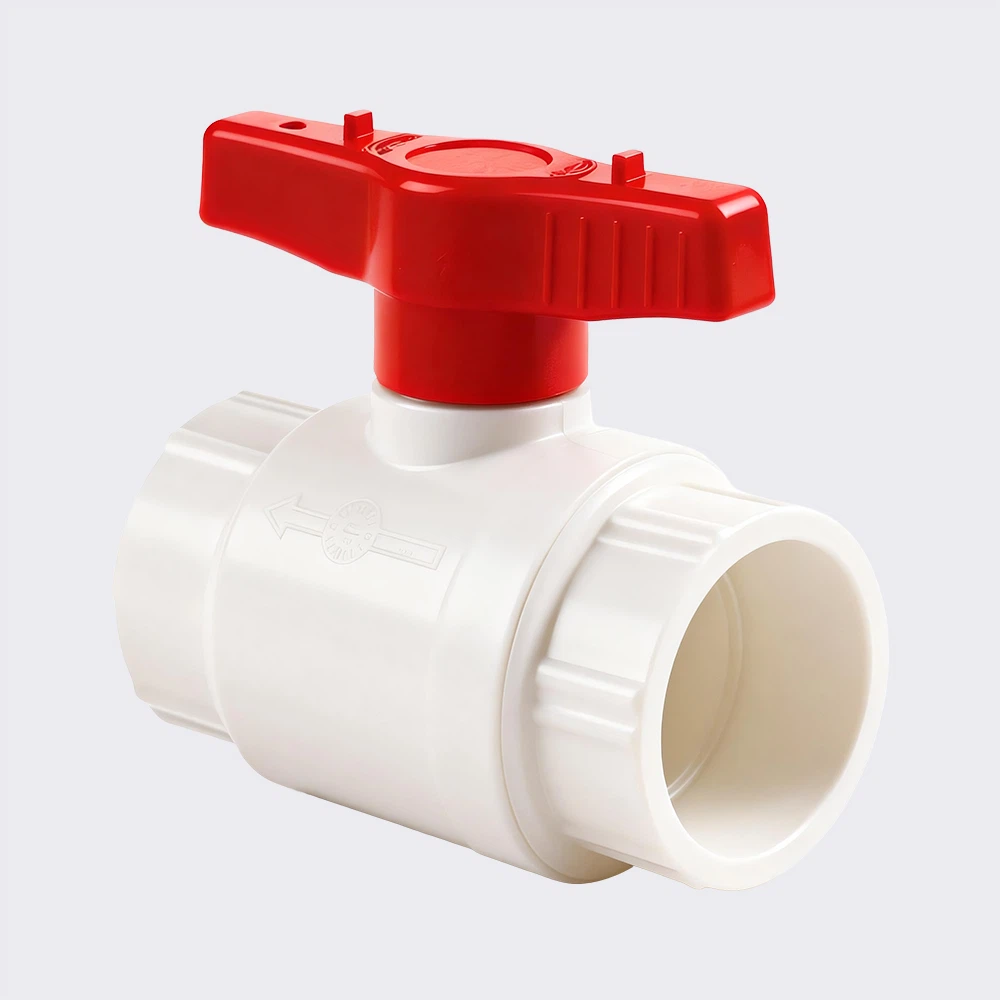

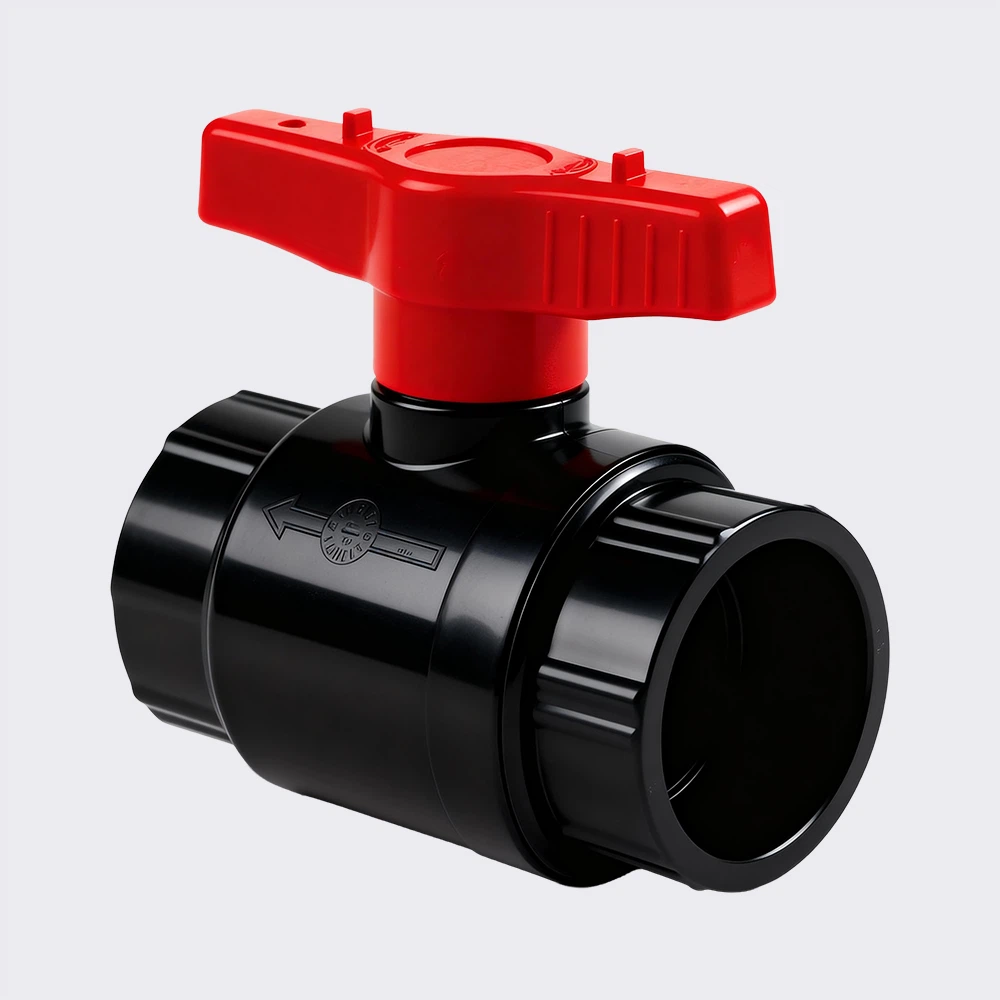

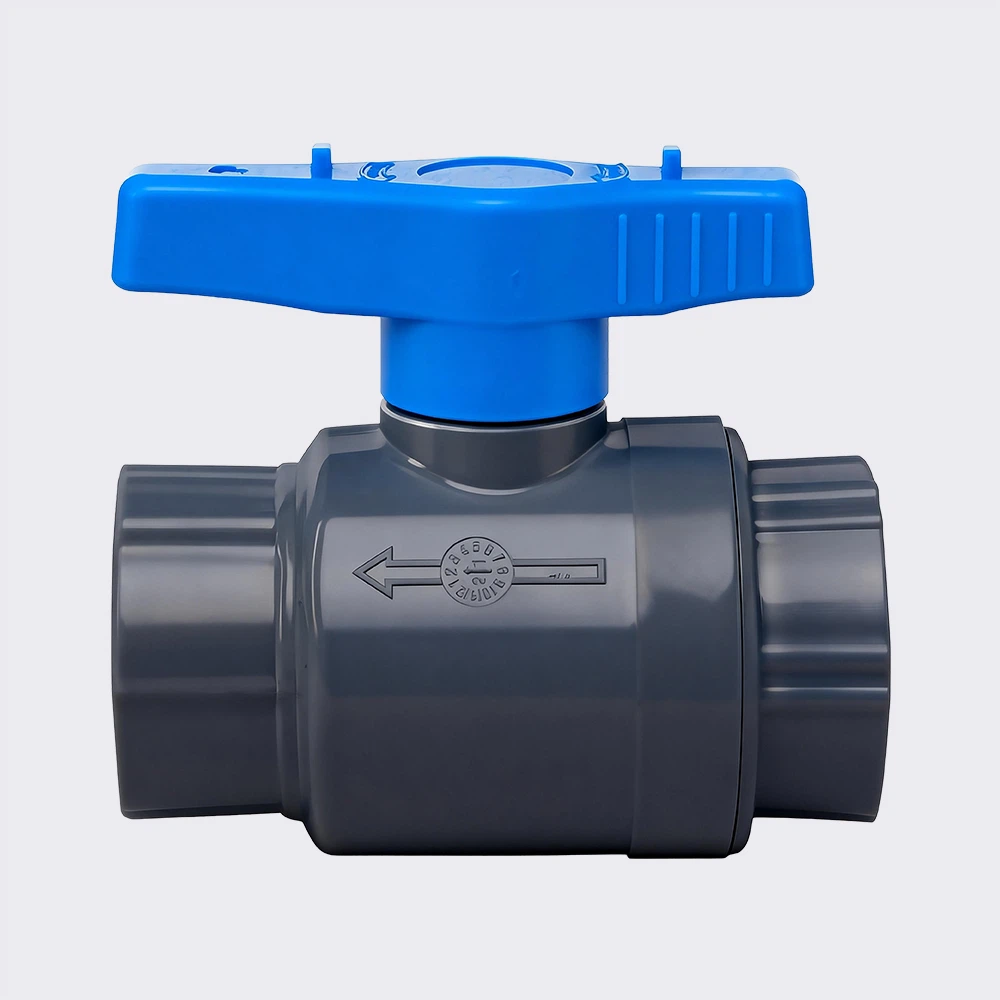

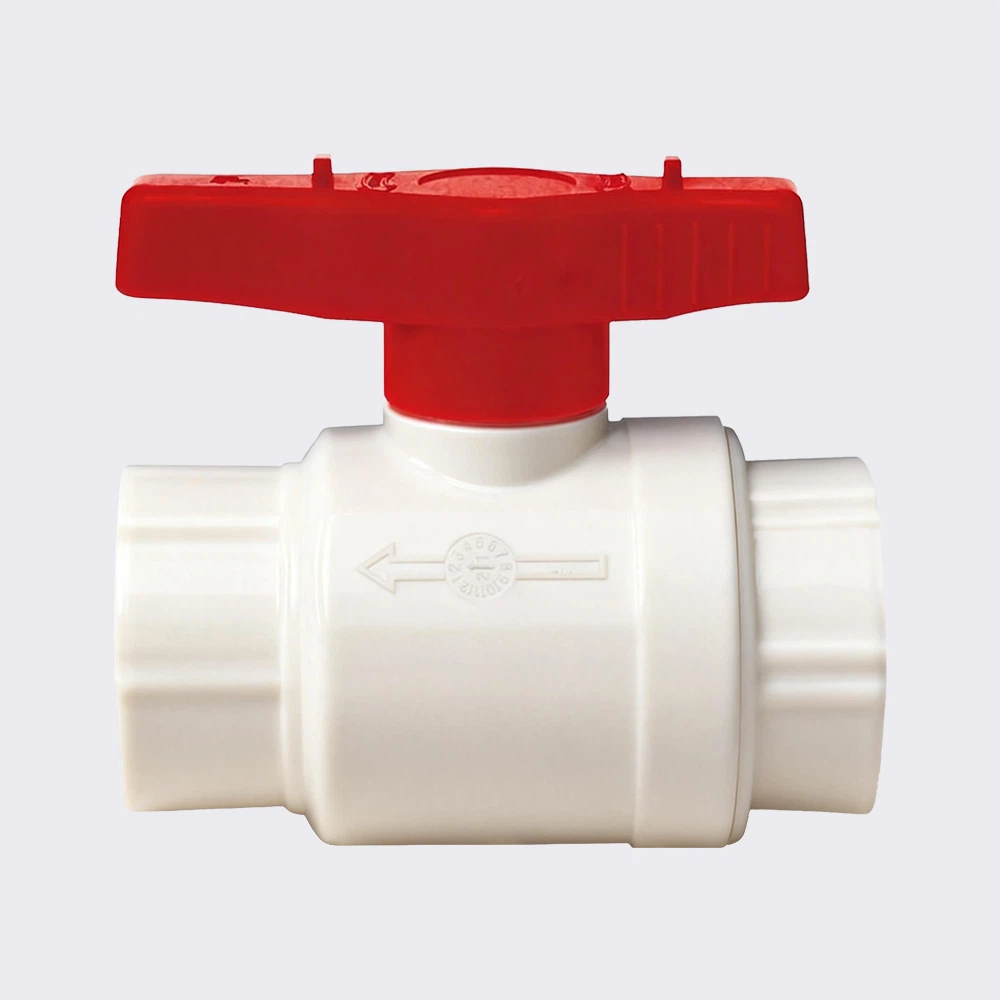

JARO JRV17 Two-Piece PVC Ball Valve with ABS Handle is a compact, all-plastic shut-off valve designed for corrosion-free fluid control in agricultural irrigation, water treatment, and municipal plumbing systems. Featuring a lightweight two-piece PVC-U body, high-impact ABS handle, and resilient TPE/TPU seals, it delivers smooth quarter-turn operation without metal exposure risk. Subject to 100% factory hydrostatic pressure testing, JRV17 offers reliable PN16 performance for B2B distributors, MEP contractors, and OEM brand owners.
Key Features & Advantages
All-Plastic Corrosion Resistance
The PVC body and ABS handle completely eliminate metal corrosion concerns in humid, saline, and chemical-service environments.
High-Impact ABS Lever Handle
Reinforced ABS handle delivers comfortable grip and non-slip torque transfer for effortless quarter-turn manual operation.
Lightweight Two-Piece Construction
Compact two-piece body minimizes overall valve weight, reducing pipe support requirements while ensuring PN16 pressure ratings.
100% Hydrostatic Pressure Tested
Every JRV17 unit undergoes 100% factory hydrostatic shell and seat pressure testing prior to shipment, guaranteeing zero-leak reliability under PN16 working conditions.
Multi-Standard Compatibility
Supports global piping standards (ANSI, DIN, JIS, CNS, NPT, BSPT), simplifying SKU inventory for international distributors and MEP contractors.
Factory Direct & OEM Support
We provide professional plastic valve OEM services, custom logo handle embossing, body color matching, and private label packaging for wholesale tenders.
Multiple Ball Material Options
JARO offers high-precision ball cores in PVC-U, CPVC, and engineering PP materials, customized to match specific chemical concentration, temperature limits, and fluid system compatibility requirements.
Multi-Standard Connection Compatibility
Engineered for global piping integration, JARO two-piece ball valves support multiple socket and thread standardsโincluding NPT, BSPT, GB, DIN, ANSI, and JISโensuring seamless replacement across international markets.
OEM Handle Customization
Multiple handle ergonomics, custom color matching (gray, white, blue), and private brand logo embossing options are available to help distributors create differentiated product lines in local markets.
100% Virgin Raw Materials
JARO strictly utilizes 100% virgin PVC/CPVC resin compounds free from recycled impurities, ensuring uniform wall density, high tensile strength, and dependable long-term pressure ratings across every production batch.
Product Core Data
Technical Drawing
Bill of Materials
| NO. | Part | Materials | PCS |
|---|---|---|---|
| 1 | Handle | ABS / PVC | 1 |
| 2 | Stem | PVC / CPVC | 1 |
| 3 | O-Ring | EPDM / NBR | 3 |
| 4 | Body | 100% Virgin PVC-U (NSF Grade) | 1 |
| 5 | Ball | PVC / CPVC | 1 |
| 6 | Seat Seal | PTFE / TPU | 2 |
| 7 | Seat Carrier | PVC / CPVC | 1 |
Measurement Specifications in (mm)
| OD | inch | DN | GB | ANSI | JIS | B.S. | CNS | L | W | H | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ฮฆ20 | 1/2″ | DN15 | 20 | 21.34 | 22.1 | 21.2 | 22.1 | 86.2 | 39.4 | 65.0 | 24.5 |
| ฮฆ25 | 3/4″ | DN20 | 25 | 26.67 | 26.1 | 26.6 | 26.1 | 96.0 | 49.4 | 83.7 | 25.4 |
| ฮฆ32 | 1″ | DN25 | 32 | 33.40 | 32.1 | 33.4 | 34.1 | 107.4 | 56.5 | 93.7 | 28.7 |
| ฮฆ40 | 1-1/4″ | DN32 | 40 | 42.16 | 38.1 | 42.1 | 42.1 | 122.0 | 65.3 | 106.5 | 32.9 |
| ฮฆ50 | 1-1/2″ | DN40 | 50 | 48.26 | 48.2 | 48.1 | 48.2 | 131.6 | 75.8 | 121.7 | 34.8 |
| ฮฆ63 | 2″ | DN50 | 63 | 60.33 | 60.2 | 60.2 | 60.2 | 154.3 | 92.3 | 142.25 | 37.1 |
| ฮฆ75 | 2-1/2″ | DN65 | 75 | 73.00 | 76.2 | 73.0 | 76.2 | 187.0 | 118.7 | 177.2 | 46.0 |
| ฮฆ90 | 3″ | DN80 | 90 | 88.90 | 89.2 | 88.7 | 89.2 | 210.5 | 137.0 | 203.5 | 49.0 |
| ฮฆ110 | 4″ | DN100 | 110 | 114.30 | 114.0 | 114.1 | 114.2 | 260.4 | 172.0 | 248.0 | 60.0 |
Packaging Information
| Size (inch/mm) | PCS/CTN | Carton Size (L ร W ร H, m) | Weight (g/pc) |
|---|---|---|---|
| 1/2″ | 240 | 0.49 ร 0.34 ร 0.29 | 90 |
| 3/4″ | 120 | 0.49 ร 0.34 ร 0.29 | 155 |
| 1″ | 96 | 0.49 ร 0.34 ร 0.29 | 220 |
| 1-1/4″ | 60 | 0.49 ร 0.34 ร 0.29 | 320 |
| 1-1/2″ | 48 | 0.49 ร 0.34 ร 0.29 | 440 |
| 2″ | 24 | 0.49 ร 0.34 ร 0.29 | 700 |
| 2-1/2″ | 16 | 0.5 ร 0.39 ร 0.39 | 1420 |
| 3″ | 12 | 0.5 ร 0.35 ร 0.42 | 2070 |
| 4″ | 6 | 0.55 ร 0.55 ร 0.28 | 3680 |
Data Notes
- In the Packaging Information table, L ร W ร H refer strictly to outer export carton dimensions, not individual valve measurements.
- Actual carton gross weight and packing quantity may vary slightly based on customized handle branding, ball material selection, or palleted container loading requests.
- Valve dimensions shown elsewhere in the measurement table are separate product specifications. Please confirm final packaging requirements before placing bulk orders.
Applications & Distribution Markets
Industrial Water Treatment
Suitable for filtration skids, wastewater treatment facilities, and general water-treatment piping requiring corrosion-resistant flow control.
Agricultural Irrigation
Ideal for irrigation main lines and greenhouse fertilizer delivery systems where lightweight all-plastic construction resists chemical corrosion.
Industrial Fluid Handling
Suitable for low- and medium-pressure piping systems carrying media compatible with PVC-U and selected sealing materials.
Complete PVC-U Piping System Components & Valves
Build a fully compatible PVC-U piping network. Explore our matching PVC-U pipes, fittings, check valves, butterfly valves, and certified ball valves manufactured under ISO 9001 quality standards.
Frequently Asked Questions
Find answers to the most frequently asked questions about JARO two-piece PVC ball valves below. For technical selection, OEM solutions, or project-specific requirements, please contact our sales and engineering team.
An all-plastic valve body and ABS handle completely eliminate metal corrosion issues in saline, humid, or chemical environments, offering a lightweight, cost-effective shut-off solution.
JRV17 complies with ANSI, DIN, JIS, CNS, NPT, and BSPT standards. Operating under ISO 9001 certified manufacturing systems, our products use raw materials meeting NSF/ANSI 61 certified plastic fittings standards for potable water safety and CE compliance.
Operating strictly under ISO 9001 quality management, JARO enforces a comprehensive ‘Triple-Check Quality Protocol’ across all manufacturing stages: (1) On-site workshop patrol inspections, (2) In-line visual inspections at every injection molding machine, and (3) 100% manual hand inspections during final packaging. In addition, 100% of all valve products undergo hydrostatic shell and seat pressure testing before shipment.
Yes. Through our plastic valve OEM services, JARO Industry provides custom handle logo embossing, body color customization, barcoded packaging, and engineering submittal sheets required for wholesale tenders.
