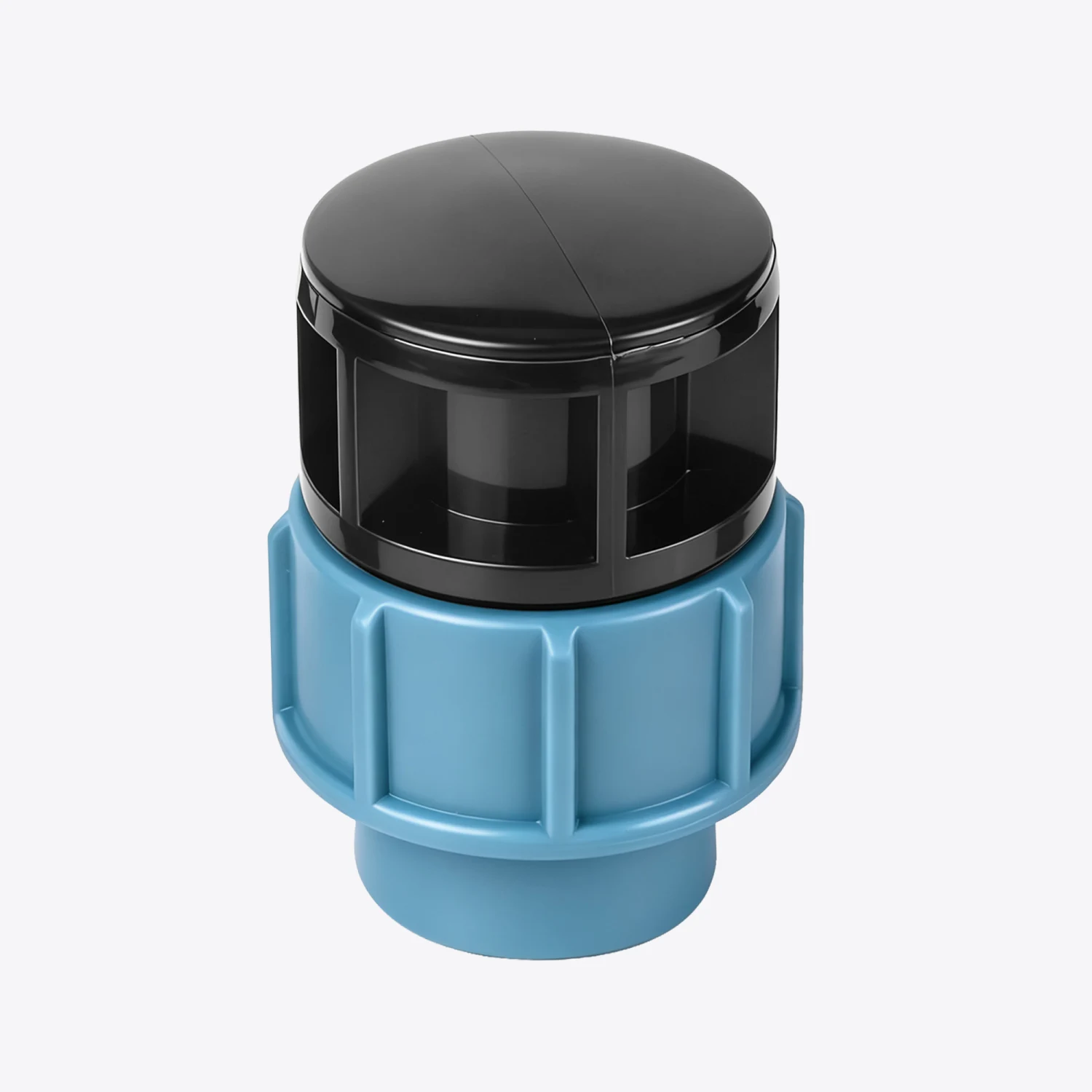

JARO PP compression end caps provide a removable closure for the end of a compatible plastic pipe. The PP compression structure and four-segment locking ring make it a practical option for terminating irrigation, water-distribution, and general piping lines without heat fusion or solvent cement.
Key Features & Advantages
Removable Pipe-End Closure
The end cap closes a compatible pipe end while allowing the line to be reopened later for extension, flushing, or maintenance.
Four-Segment Locking Ring
The segmented locking ring is tightened by the compression nut to secure the fitting around the pipe end.
No Heat Fusion or Cement
The mechanical connection supports field installation without hot-work equipment or solvent-cement curing time.
PP Body for Compatible Pipe Systems
The PP construction is intended for compatible HDPE, PP, and similar plastic-pipe applications subject to final selection checks.
Product Core Data

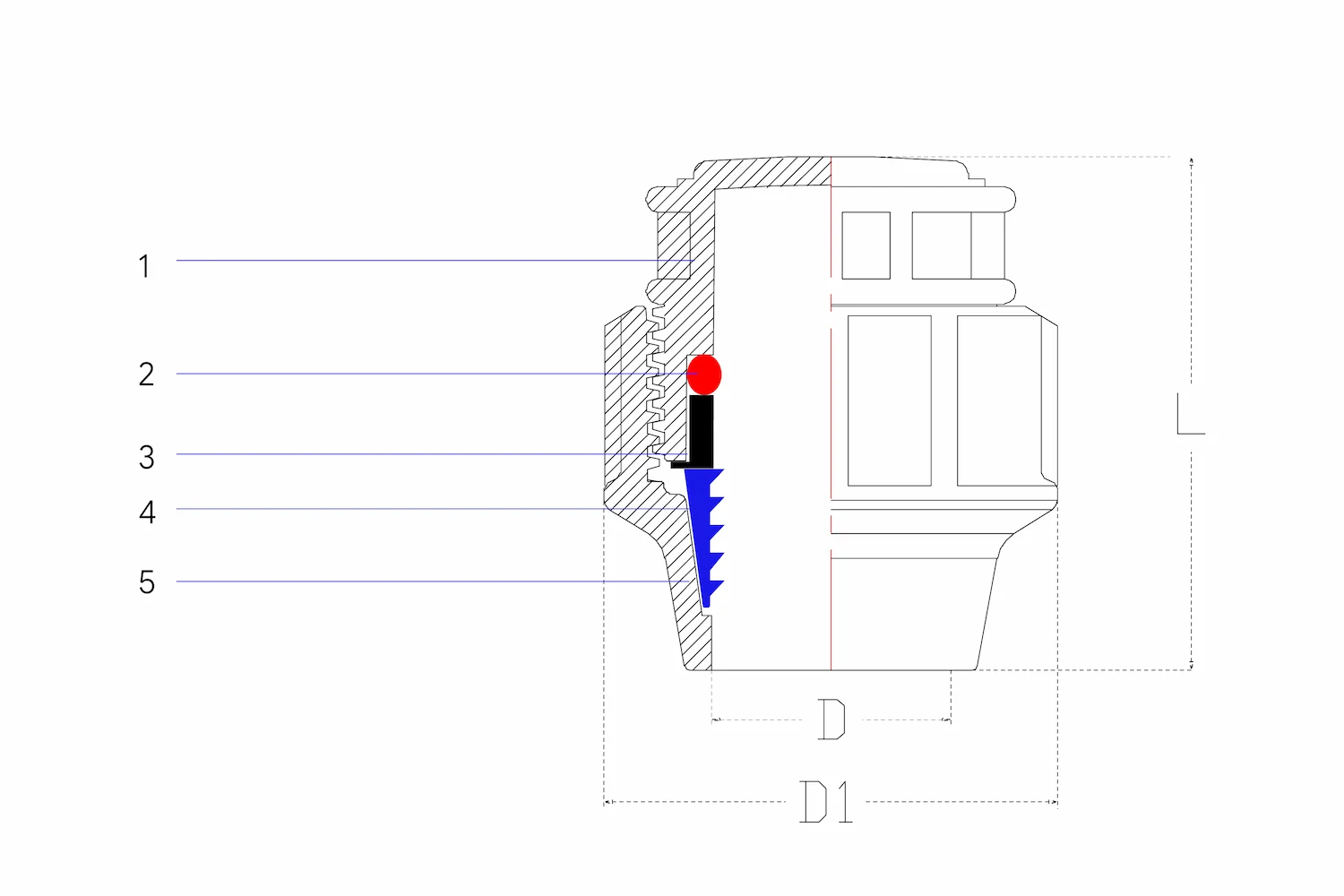

Technical Drawing
Bill of Materials
| No. | Name | Material | Qty |
|---|---|---|---|
| 1 | Nut | PP-B | 1 |
| 2 | Clamping Ring | POM | 1 |
| 3 | Thrust Ring | PP | 1 |
| 4 | O-Ring | NBR (or EPDM) | 1 |
| 5 | Body | PP-B | 1 |
Measurement in (mm)
| size(mm) | DIN | GB | ANSI | B.S. | PN | D(mm) | D1(mm) | L(mm) |
|---|---|---|---|---|---|---|---|---|
| 20 | 20 | 20 | 21.34 | 21.2 | 16 | 20 | 46 | 56 |
| 25 | 25 | 25 | 26.67 | 26.6 | 16 | 25 | 55 | 66 |
| 32 | 32 | 32 | 33.4 | 33.4 | 16 | 32 | 63 | 87 |
| 40 | 40 | 40 | 42.16 | 42.1 | 16 | 40 | 80 | 90 |
| 50 | 50 | 50 | 48.26 | 48.1 | 16 | 50 | 96 | 105 |
| 63 | 63 | 63 | 60.33 | 60.2 | 16 | 63 | 115 | 124 |
| 75 | 75 | 75 | 73 | 73 | 10 | 75 | 129 | 153 |
| 90 | 90 | 90 | 88.9 | 88.7 | 10 | 90 | 155 | 166 |
| 110 | 110 | 110 | 114.3 | 114.1 | 10 | 110 | 184 | 210 |
PP compression fitting series image placeholder; final product photography and caption to be confirmed.
PP compression fitting series image placeholder; final product photography and caption to be confirmed.
PP compression fitting series image placeholder; final product photography and caption to be confirmed.
Applications for PP Compression End Caps
Irrigation Line Termination
Close the end of a compatible irrigation main or branch line.
Water-System Testing and Maintenance
Use as a removable end closure during system staging, flushing, or future modifications.
Landscape and Greenhouse Pipework
Terminate spare or seasonal water-distribution lines with a mechanical fitting.
FAQ
Find answers about JARO PP compression end caps. Confirm the pipe outside diameter, pressure rating, operating temperature, and media compatibility before ordering.
It is designed as a compression connection, so the line can be reopened for maintenance or extension when the system is safely isolated and depressurized.
The supplied product information refers to HDPE, PP, and PE-RT pipe. Confirm the outside diameter and actual pipe specification for the final selection.
The source information lists PN10 or PN16 depending on size. Confirm the required size and duty conditions before use.
Yes. JARO can support OEM requests for product identification, packaging, and other confirmed project requirements.
