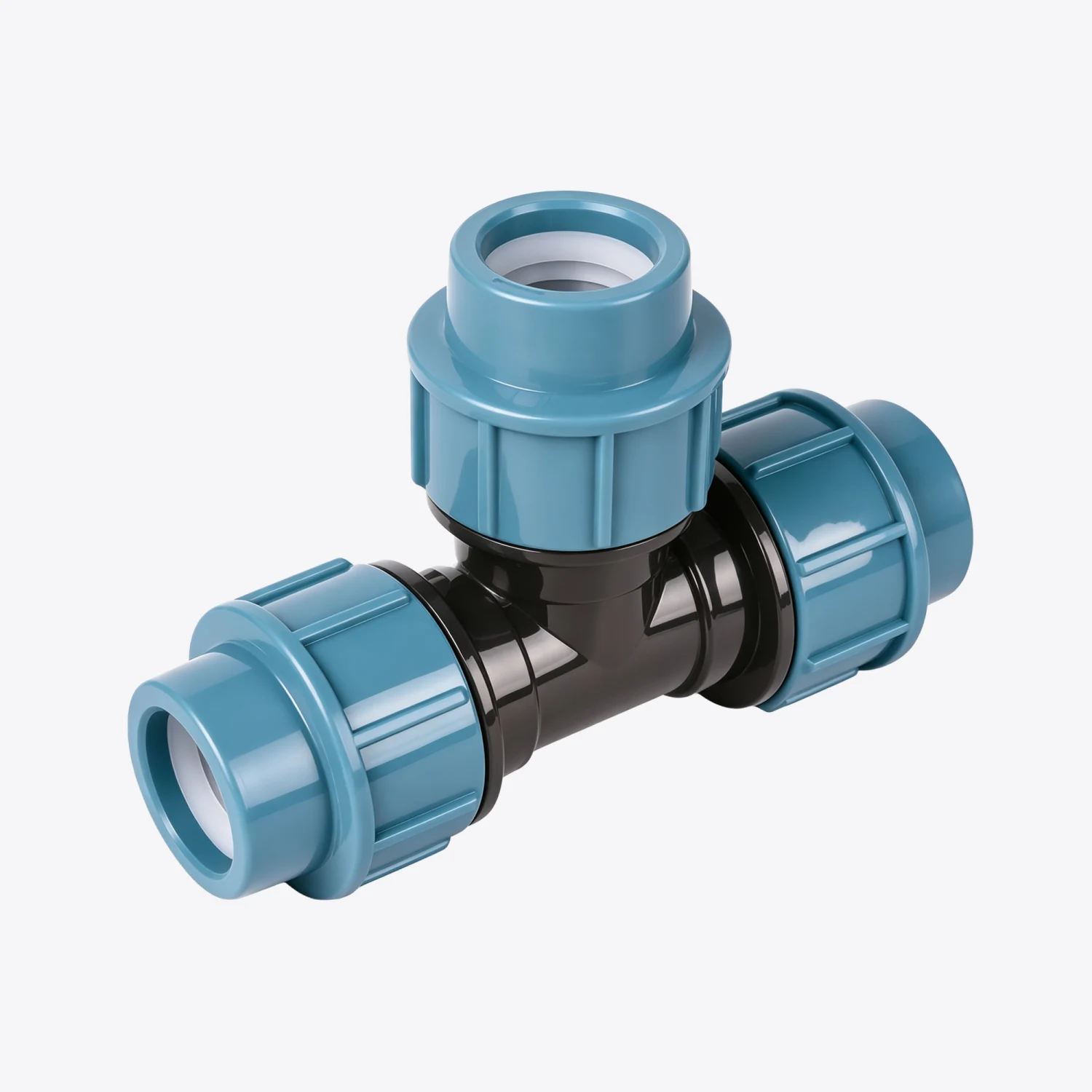

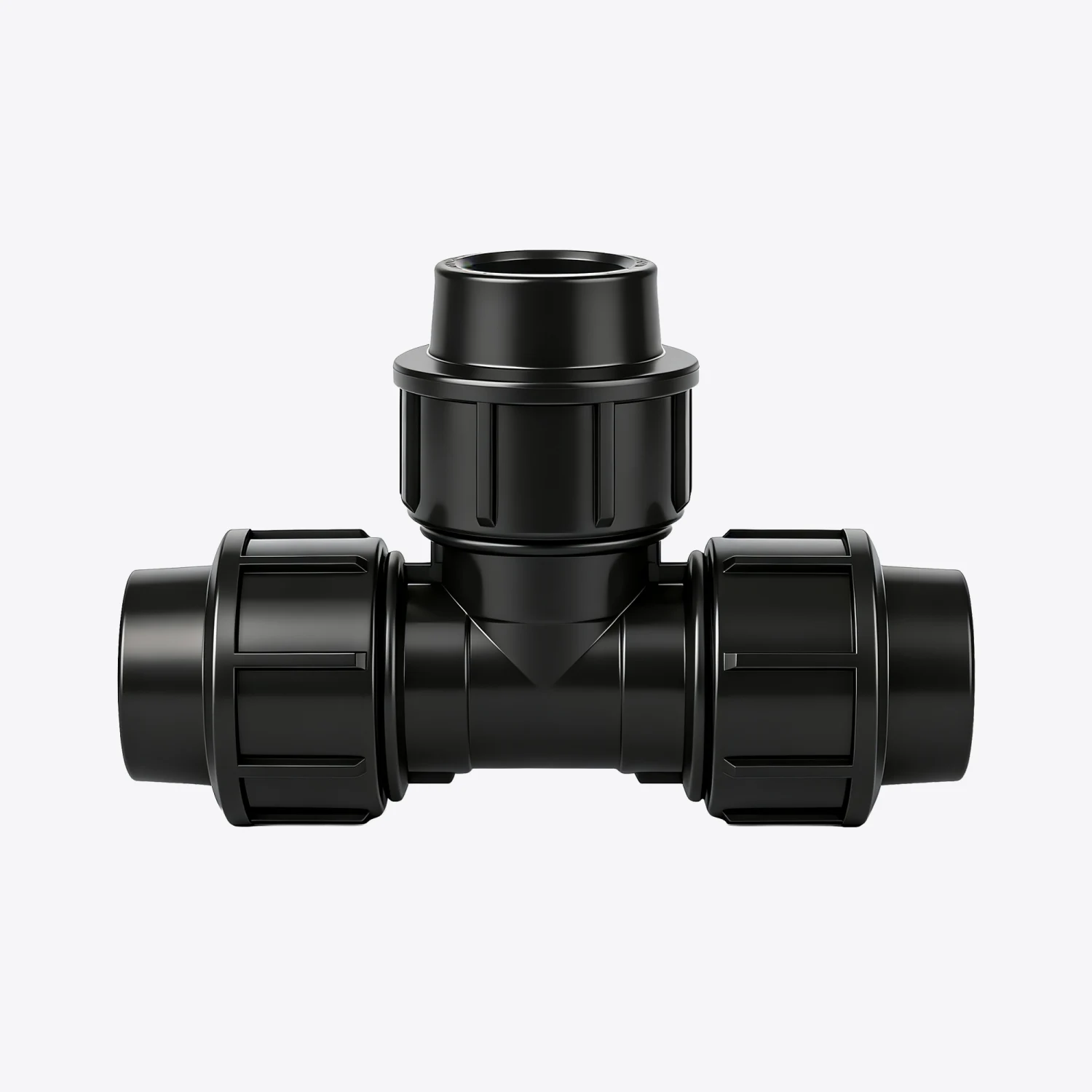

JARO PP equal tee compression fittings create a same-size three-way branch in compatible plastic pipe systems. The three compression ends use the series four-segment locking ring, supporting a practical assembly method for irrigation networks, water distribution, and general pipeline branching.
Key Features & Advantages
Three-Way Equal-Size Branching
Three matching compression ports form a straightforward branch point for pipe systems using one nominal size.
Segmented Locking-Ring Design
Each connection uses a four-segment locking ring to apply gripping force around the inserted pipe during tightening.
No Heat-Fusion Equipment
Mechanical compression assembly helps simplify field installation where electrical fusion equipment or solvent cement is not preferred.
PP Compression-Fitting Series
The fitting shares the series PP material and connection concept, supporting consistent selection across straight, elbow, tee, and end-closure positions.
Reinforced Body Structure
Thicker body design with trapezoidal ribs helps distribute installation torque and internal pressure, reducing stress concentration for enhanced structural stability.
100% Virgin Material
Manufactured with 100% virgin PP material to ensure consistent mechanical performance, durability and long-term reliability.
Multi-Directional Grip Ring
Four-claw grip ring design distributes forces in multiple directions, adapting to pipe deformation and dimensional variations for secure locking.
Product Core Data

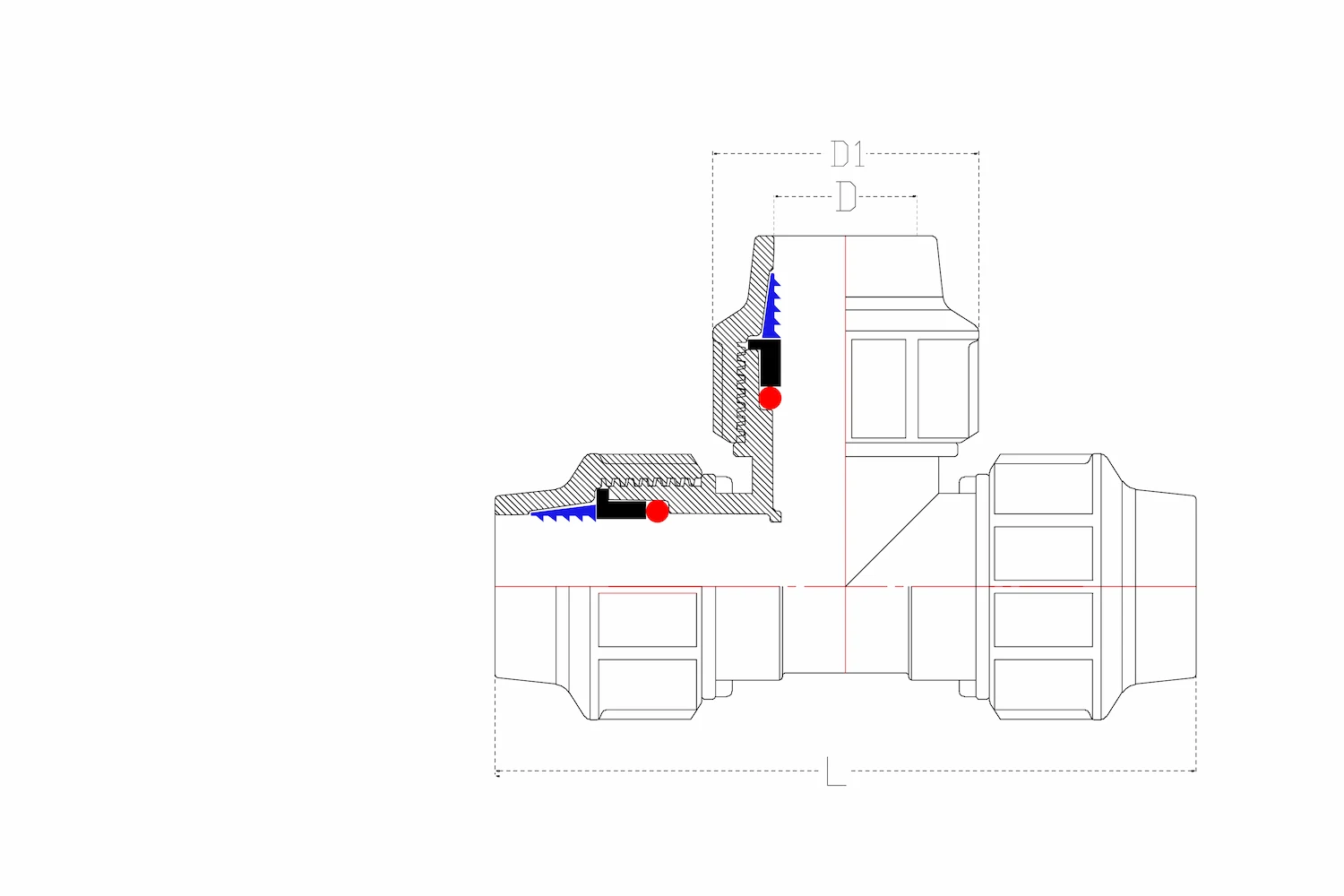

Technical Drawing
Bill of Materials
| No. | Name | Material | Qty |
|---|---|---|---|
| 1 | Nut | PP-B | 2 |
| 2 | Clamping Ring | POM | 2 |
| 3 | Thrust Ring | PP | 2 |
| 4 | O-Ring | NBR (or EPDM) | 2 |
| 5 | Body | PP-B | 1 |
Measurement in (mm)
| size(mm) | DIN | GB | ANSI | B.S. | PN | D(mm) | D1(mm) | L(mm) |
|---|---|---|---|---|---|---|---|---|
| 20 | 20 | 20 | 21.34 | 21.2 | 16 | 20 | 46 | 90 |
| 25 | 25 | 25 | 26.67 | 26.6 | 16 | 25 | 55 | 110 |
| 32 | 32 | 32 | 33.4 | 33.4 | 16 | 32 | 63 | 120 |
| 40 | 40 | 40 | 42.16 | 42.1 | 16 | 40 | 80 | 140 |
| 50 | 50 | 50 | 48.26 | 48.1 | 16 | 50 | 96 | 168 |
| 63 | 63 | 63 | 60.33 | 60.2 | 16 | 63 | 115 | 204 |
| 75 | 75 | 75 | 73 | 73 | 10 | 75 | 129 | 242 |
| 90 | 90 | 90 | 88.9 | 88.7 | 10 | 90 | 155 | 270 |
| 110 | 110 | 110 | 114.3 | 114.1 | 10 | 110 | 184 | 380 |
Applications for PP Equal Tee Compression Fittings
Irrigation Branch Networks
Create same-size distribution branches for irrigation mains and laterals.
Water Treatment Pipework
Arrange compatible water lines around filtration or distribution equipment.
General Water Distribution
Form serviceable three-way branches in plastic-pipe layouts where pipe size remains constant.
FAQ
Find answers about JARO PP equal tee compression fittings. For a correct selection, confirm the pipe outside diameter at all three ports and the required operating pressure.
Yes. An equal tee is intended for three pipe ends of the same nominal size. Choose a reducing tee where the branch pipe is a different size.
The product information indicates PN10 or PN16 depending on size. Confirm the required size and operating conditions before final selection.
Cut the pipe ends square, remove burrs, and insert each pipe fully to the intended depth before tightening the nuts.
Yes. Contact JARO with the required sizes, quantity, branding, packaging, and market requirements.
