JARO JRV30 PVC Check Valve provides automatic non-return flow control, powered by a rust-proof SS304 spring and 100% virgin PVC-U body. Designed to absorb water hammer surges and prevent backflow, it features low cracking pressure and resilient EPDM/FKM seals for irrigation, water treatment skids, and industrial fluid networks. 100% factory pressure tested for zero-leak B2B supply.
Key Features & Advantages
Suction Line Liquid Prime Retention
Automatic non-return flapper seal retains liquid in the pump suction line after pump shutdown, eliminating repeat manual priming delays.

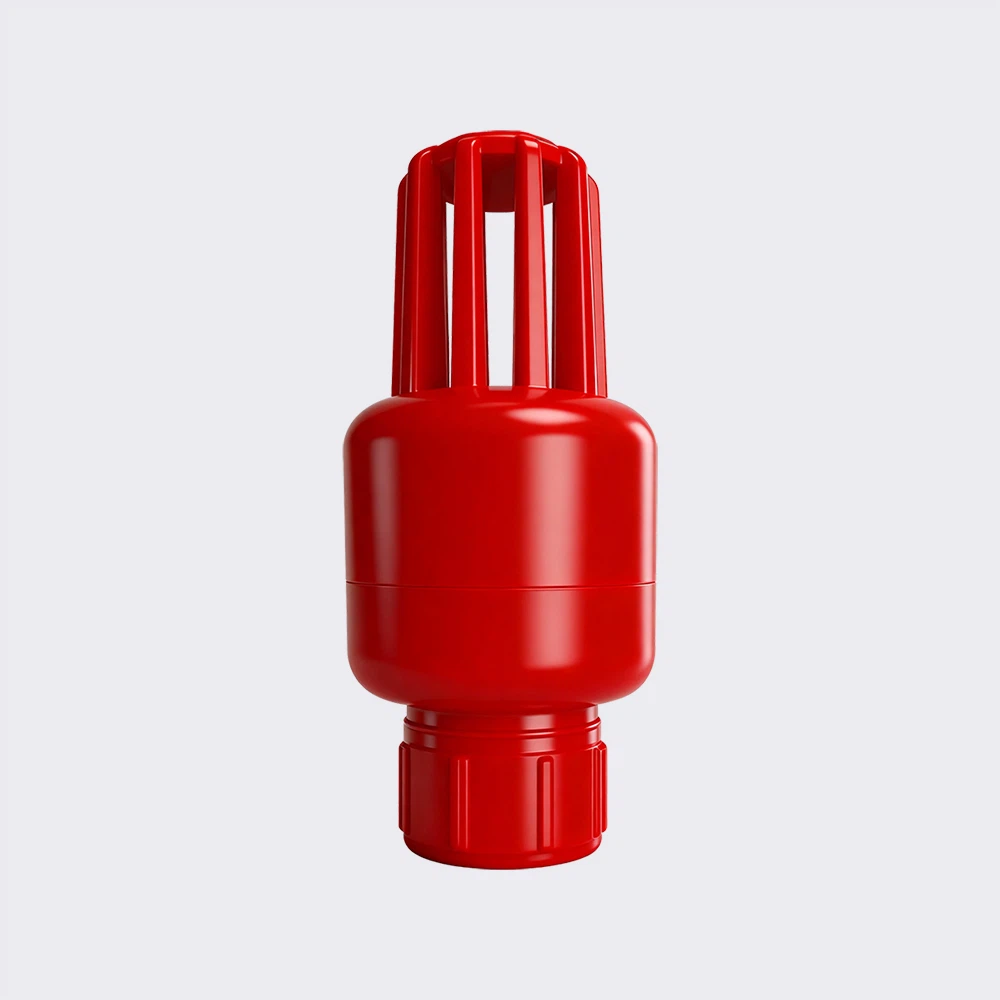

Integrated Debris Strainer Screen
Precision slotted PVC strainer cage screens out rocks, leaves, and large suspended debris, preventing impeller clog and premature pump wear.
100% Virgin PVC Construction
Molded from 100% virgin PVC-U resin under ISO 9001 certified quality systems, offering complete rust-proof performance in submerged water wells.
Hydrostatic Pressure Tested
Every JRV31 foot valve undergoes 100% factory hydrostatic shell and seat pressure testing prior to shipment, guaranteeing zero-leak back-seal performance.
Multi-Standard Compatibility
Supports global piping standards (GB, DIN, ANSI, JIS, NPT, BSPT), simplifying installation for international irrigation and water intake projects.
Factory Direct & OEM Support
We provide professional plastic valve OEM services, custom brand laser marking, body color matching, and private label packaging for wholesale tenders.
Multiple Ball Material Options
JARO offers high-precision internal sealing components in PVC-U, CPVC, and engineering PP materials, customized to match specific chemical concentration, temperature limits, and fluid system compatibility requirements.
Multi-Standard Connection Compatibility
Engineered for global piping integration, JARO foot valves support multiple socket and thread standards—including NPT, BSPT, GB, DIN, ANSI, and JIS—ensuring seamless replacement across international markets.
OEM Handle Customization
Multiple body color configurations, custom brand laser marking, and specialized inner box packaging options are available to help distributors create differentiated product lines in local markets.
100% Virgin Raw Materials
JARO strictly utilizes 100% virgin PVC-U resin compounds free from recycled impurities, ensuring uniform wall density, high tensile strength, and dependable long-term pressure ratings across every production batch.
Product Core Data
Technical Drawing
Bill of Materials
| No. | Name | Material Specification | Qty |
|---|---|---|---|
| 1 | Foot Valve Body | 100% Virgin PVC-U (NSF Grade) | 1 |
| 2 | Strainer Cage | 100% Virgin PVC-U / PP Screen | 1 |
| 3 | Flapper Seal / Disc | EPDM / NBR / FKM | 1 |
| 4 | End Connector | 100% Virgin PVC-U | 1 |
Measurement Specifications in (mm)
| inch | DIN d (mm) | NPT T | BSPT | GB | ANSI | JIS | B.S. | CNS | L (mm) | W (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2″ | 20 | 14 | 14 | 20 | 21.34 | 22.1 | 21.2 | 22.1 | 98.7 | 51.0 | 65.0 |
| 3/4″ | 25 | 14 | 14 | 25 | 26.67 | 26.1 | 26.6 | 26.1 | 115.0 | 64.0 | 91.0 |
| 1″ | 32 | 11.5 | 11 | 32 | 33.40 | 32.1 | 33.4 | 34.1 | 120.0 | 72.0 | 101.5 |
| 1-1/4″ | 40 | 11.5 | 11 | 40 | 42.16 | 38.1 | 42.1 | 42.1 | 135.5 | 81.0 | 114.5 |
| 1-1/2″ | 50 | 11.5 | 11 | 50 | 48.26 | 48.2 | 48.1 | 48.2 | 146.3 | 94.0 | 130.8 |
| 2″ | 63 | 11.5 | 11 | 63 | 60.33 | 60.2 | 60.2 | 60.2 | 165.6 | 113.0 | 156.2 |
| 2-1/2″ | 75 | 11.5 | 11 | 75 | 73.00 | 76.2 | 73.0 | 76.2 | 206.6 | 143.0 | 189.4 |
| 3″ | 90 | 11.5 | 11 | 90 | 88.90 | 89.2 | 88.7 | 89.2 | 234.5 | 164.2 | 217.0 |
| 4″ | 110 | 11.5 | 11 | 110 | 114.30 | 114.0 | 114.1 | 114.2 | 280.5 | 207.0 | 265.5 |
Packaging Information
| Size (inch/mm) | PCS/CTN | Carton Size (L × W × H, m) | Weight (g/pc) |
|---|---|---|---|
| 1/2″ | 120 | 0.50 × 0.35 × 0.30 | 120 |
| 3/4″ | 88 | 0.50 × 0.35 × 0.30 | 212 |
| 1″ | 64 | 0.50 × 0.35 × 0.30 | 290 |
| 1-1/4″ | 32 | 0.50 × 0.35 × 0.30 | 430 |
| 1-1/2″ | 24 | 0.50 × 0.35 × 0.30 | 606 |
| 2″ | 20 | 0.50 × 0.35 × 0.30 | 1005 |
| 2-1/2″ | 8 | 0.58 × 0.35 × 0.22 | 1840 |
| 3″ | 6 | 0.50 × 0.35 × 0.26 | 2820 |
| 4″ | 4 | 0.43 × 0.46 × 0.30 | 5190 |
Data Notes
- In the Packaging Information table, L × W × H refer strictly to outer export carton dimensions, not individual valve measurements.
- Actual carton gross weight and packing quantity may vary slightly based on customized handle branding, ball material selection, or palleted container loading requests.
- Valve dimensions shown elsewhere in the measurement table are separate product specifications. Please confirm final packaging requirements before placing bulk orders.
Applications for PVC Foot Valves
Water Pump Suction Lines
Installed submerged at the bottom of pump suction pipes to retain liquid prime and prevent pump dry-running.
Agricultural & Well Water Intake
Ideal for agricultural water wells, irrigation canals, and pond suction points requiring screened debris protection.
Water Transfer & Storage Tanks
Suitable for industrial storage tanks and municipal water feature intake lines requiring continuous non-return prime retention.
Frequently Asked Questions
Find answers to frequently asked questions about JARO PVC foot valves below. For technical selection, OEM solutions, or project-specific requirements, please contact our sales and engineering team.
A PVC foot valve combines a non-return flapper seal with a debris strainer screen, retaining liquid in the pump suction line to prevent pump dry-running while screening out solid particles.
It is installed submerged at the lowest intake point of a pump suction line in wells, ponds, or storage tanks. Ensure adequate submergence depth to prevent air vortex intake.
Operating strictly under ISO 9001 quality management, JARO enforces a comprehensive ‘Triple-Check Quality Protocol’ across all manufacturing stages: (1) On-site workshop patrol inspections, (2) In-line visual inspections at every injection molding machine, and (3) 100% manual hand inspections during final packaging. In addition, 100% of all valve products undergo hydrostatic shell and seat pressure testing before shipment.
Yes. Through our plastic valve OEM services, JARO Industry provides custom body laser marking, barcoded packaging, and engineering submittal sheets required for wholesale tenders.
