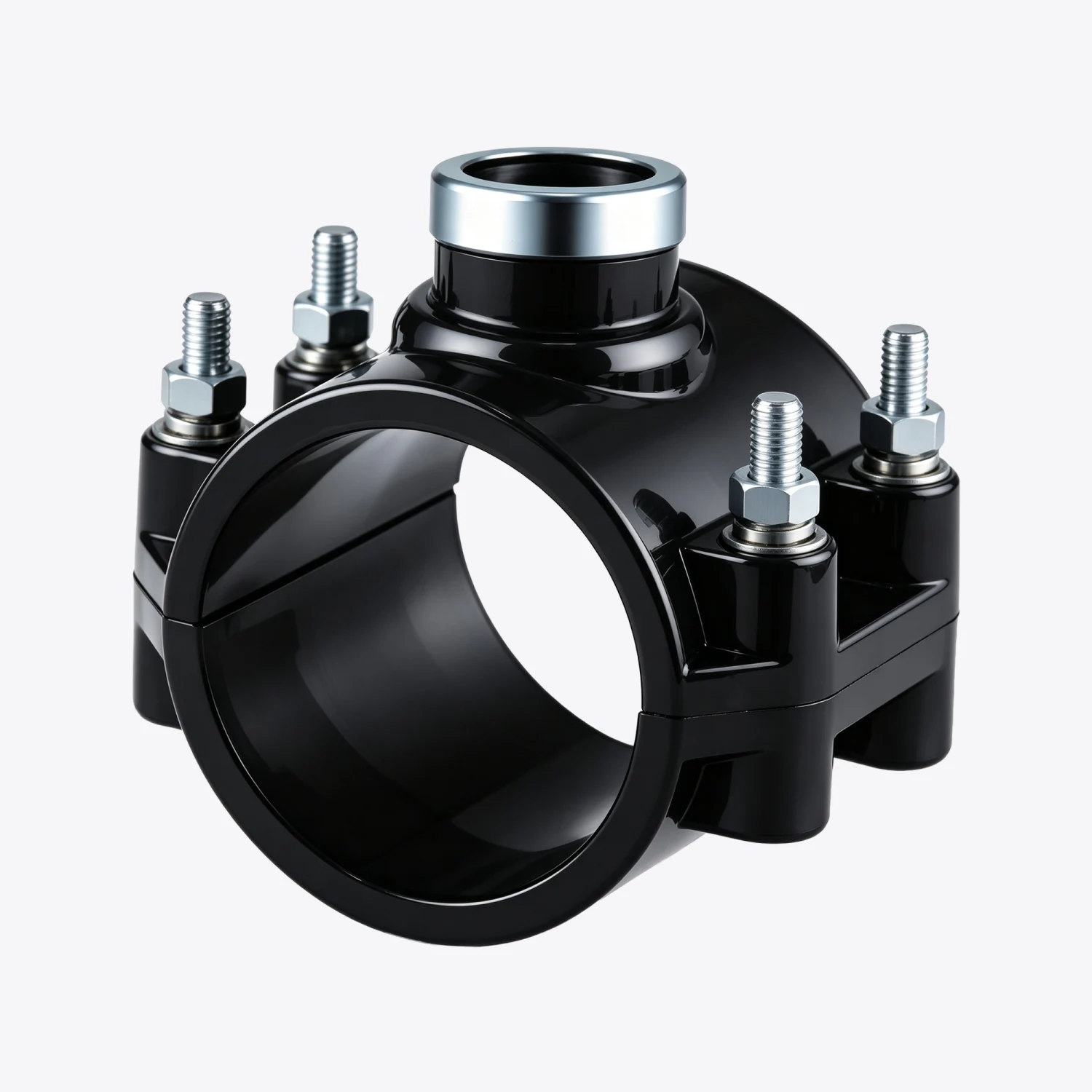

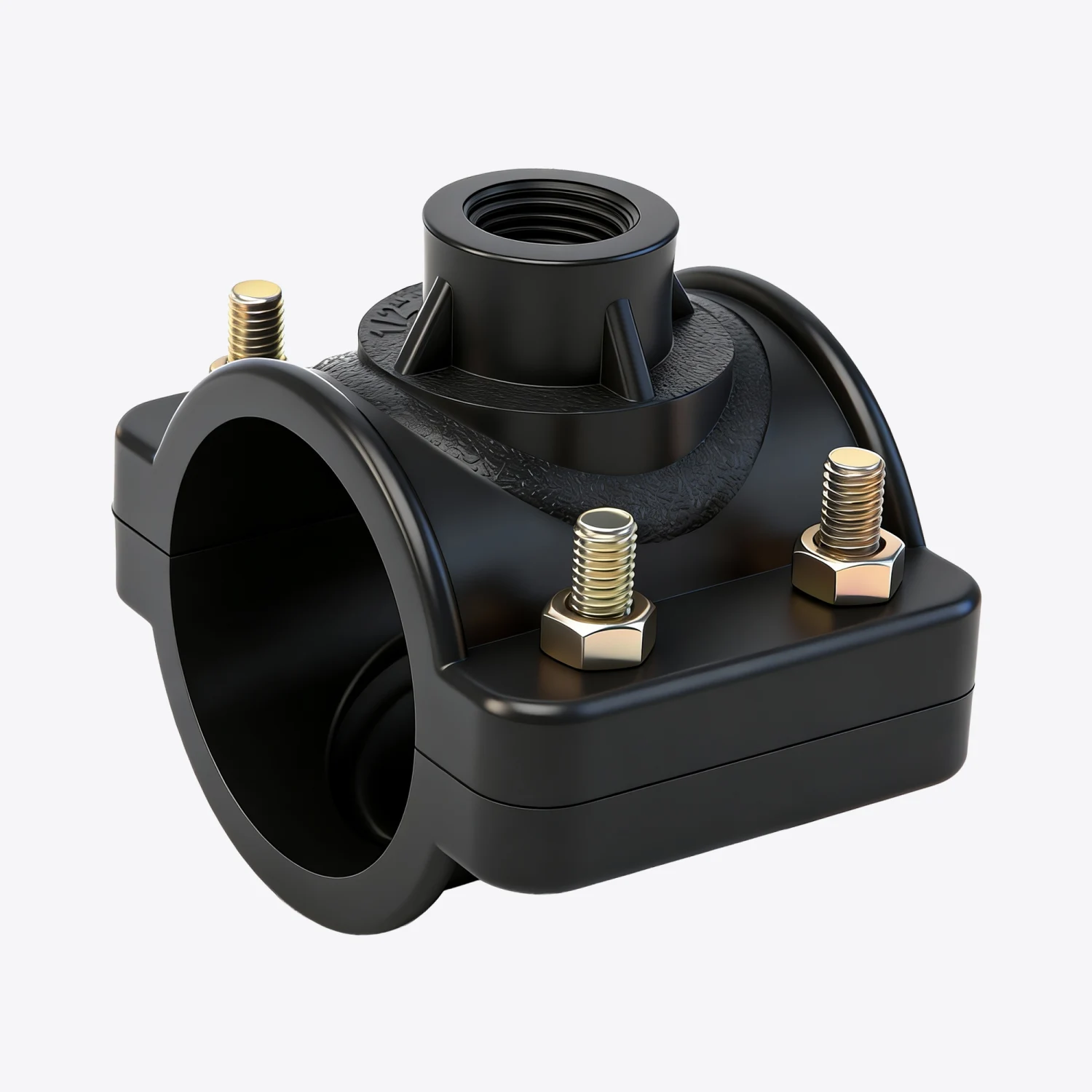

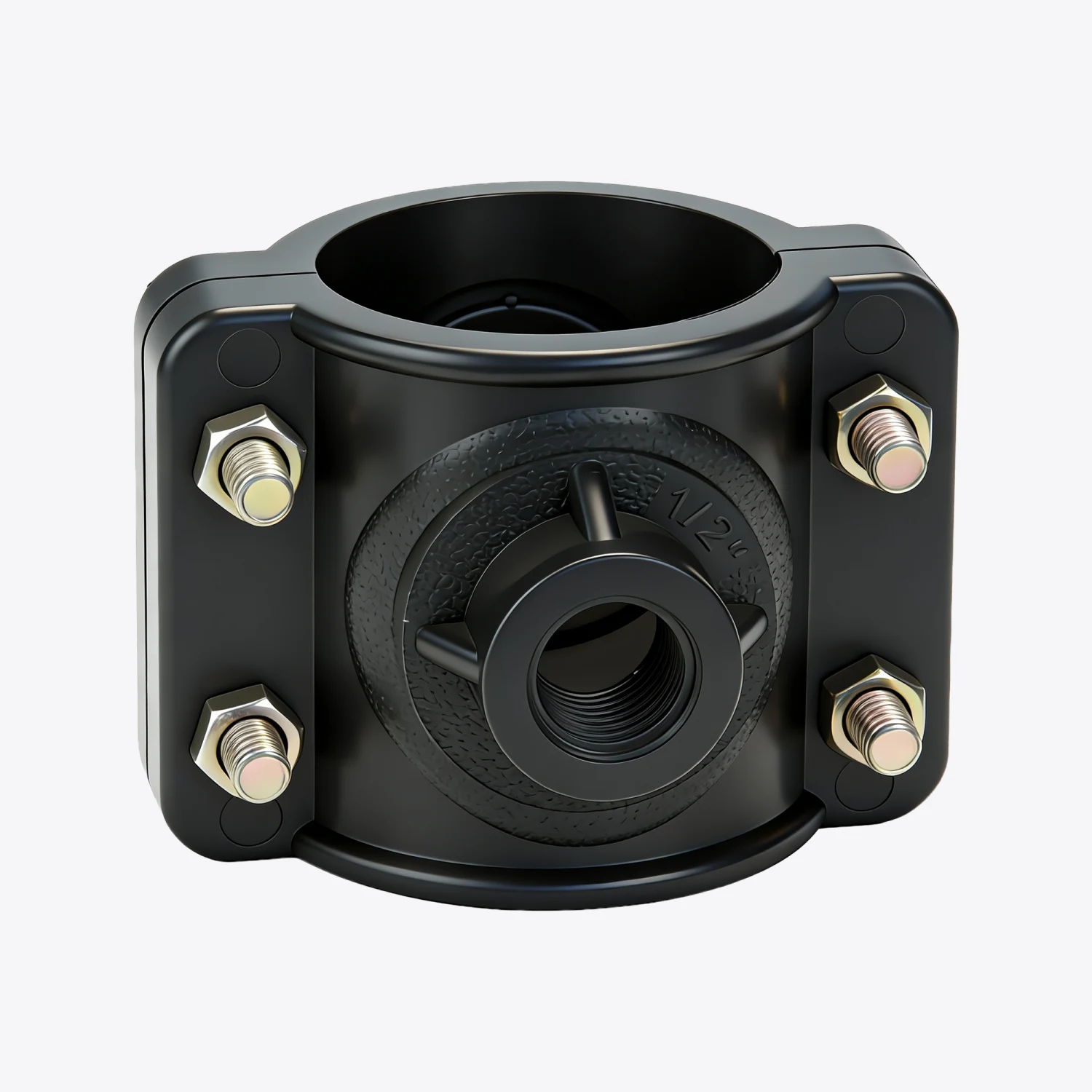

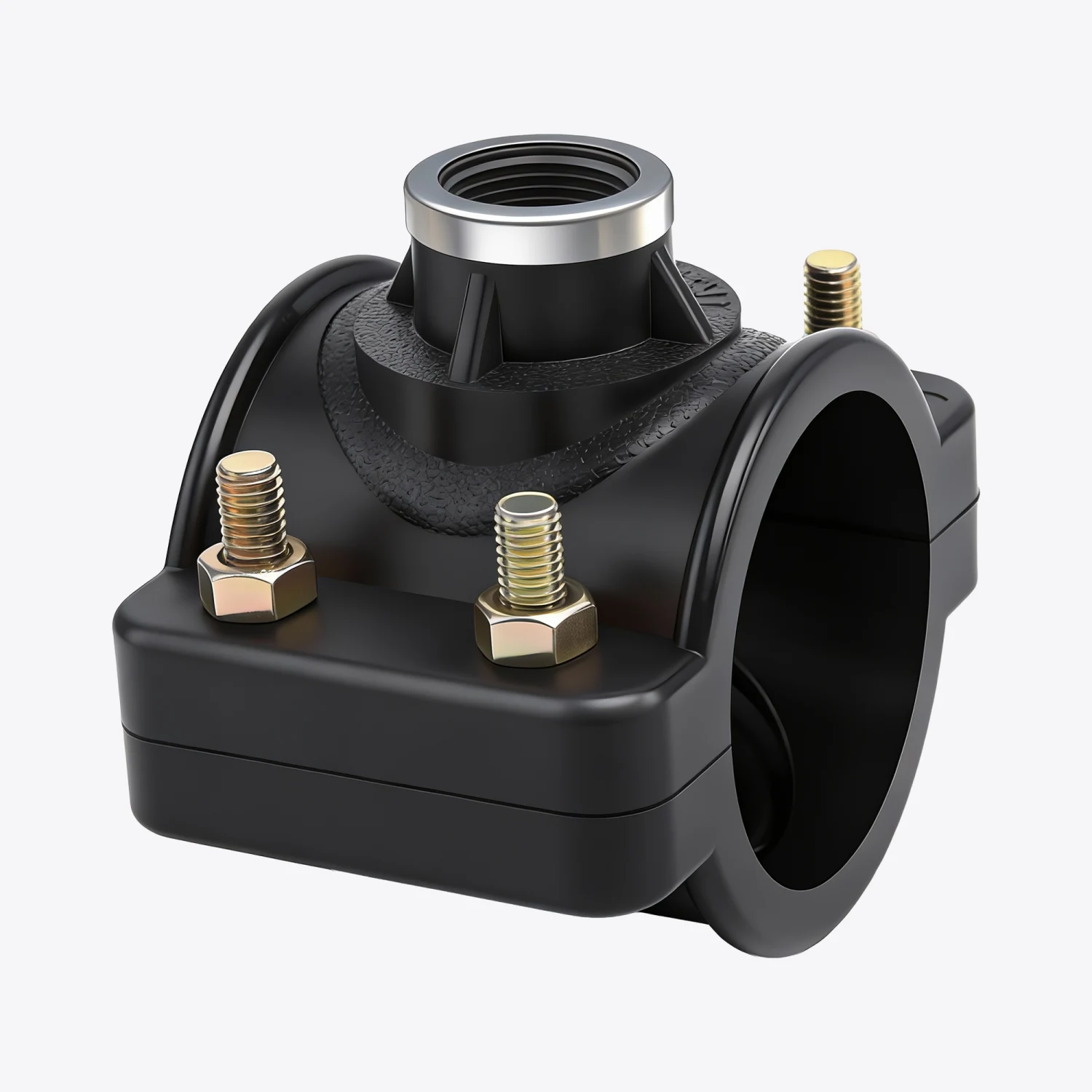

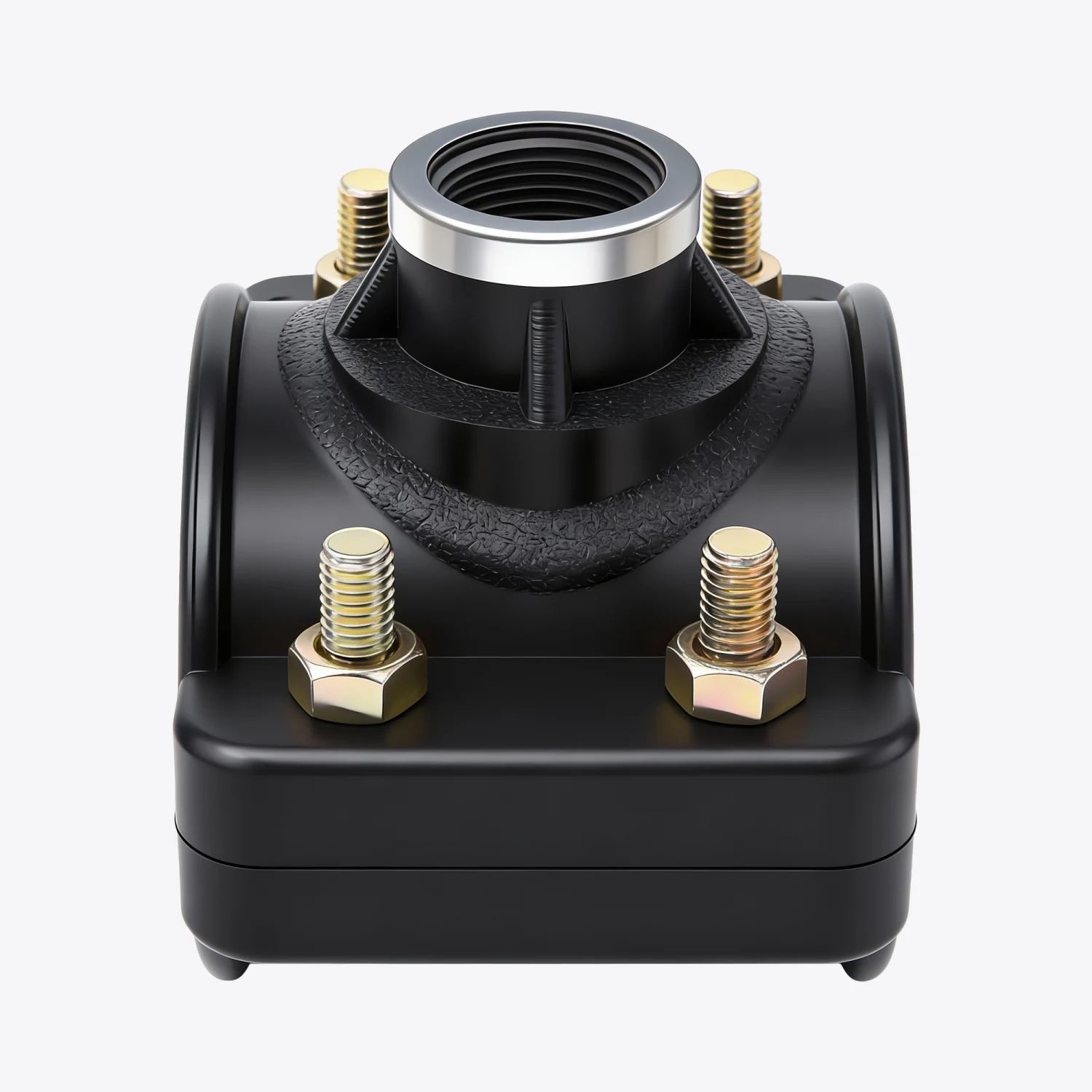

PP Saddle Clamp For Irrigation Pipe Branches

JARO pp saddle clamp is designed for compatible plastic-pipe systems using a PP compression connection and the series four-segment locking ring. The saddle clamp creates a threaded branch point on a compatible main pipe; reinforcing-ring and fastener configurations are selected by model. It is suited to irrigation, water distribution, and project-specific piping layouts after confirming pipe size, thread standard, medium, and operating conditions.

Model:JRP18

Product Name:PP Saddle Clamp

Size Range:20 – 110 mm

Standards Compatible:GB / DIN / ANSI / JIS / BSPT / NPT

Working Pressure:PN16 (20–63 mm) / PN10 (75–110 mm)

Temperature Range:5℃-90℃

Applicable Media:Water and media compatible with PP and the selected seal

Inquire Directly

Key Features & Advantages

Pipe branch without a tee

The saddle clamp creates a threaded branch point on a compatible main pipe; reinforcing-ring and fastener configurations are selected by model.

Four-Segment Locking Ring

The segmented locking ring applies gripping force around the compatible pipe as the compression nut is tightened.

PP Compression Construction

The PP body supports a mechanical connection method without heat fusion or solvent cement.

Project-Focused Connection

Confirm the selected size, thread standard, pressure class, and sealing configuration for the project.

Product Core Data

Technical Drawing

Bill of Materials

No.	Name	Material	Qty
1	Nut	PP-B	2
2	Clamping Ring	POM	2
3	Thrust Ring	PP	2
4	O-Ring	NBR (or EPDM)	2
5	Body	PP-B	1

Measurement in (mm)

size(mm)	DIN	GB	ANSI	B.S.	PN	D(mm)	L(mm)	Z(mm)	F(mm)
25X1/2″	25	25	26.67	26.6	16	25	58	30	78
25X3/4″	25	25	26.67	26.6	16	25	58	30	78
32X1/2″	32	32	33.4	33.4	16	32	58	30	78
32X3/4″	32	32	33.4	33.4	16	32	61	30	80
32X1″	32	32	33.4	33.4	16	32	61	30	80
40X1/2″	40	40	42.16	42.1	16	40	61	30	80
40X3/4″	40	40	42.16	42.1	16	40	70	30	80
40X1″	40	40	42.16	42.1	16	40	70	30	80
50X1/2″	50	50	48.26	48.1	16	50	77	30	98
50X3/4″	50	50	48.26	48.1	16	50	77	30	98
50X1″	50	50	48.26	48.1	16	50	81	30	98
50X1-1/4″	50	50	48.26	48.1	16	50	83	30	98
63X1/2″	63	63	60.33	60.2	16	63	92	30	105
63X3/4″	63	63	60.33	60.2	16	63	92	30	105
63X1″	63	63	60.33	60.2	16	63	96	30	105
63X1-1/4″	63	63	60.33	60.2	16	63	98	30	105
63X1-1/2″	63	63	60.33	60.2	16	63	65	30	105
75X1/2″	75	75	73	73	10	75	108	30	123
75X3/4″	75	75	73	73	10	75	108	30	123
75X1″	75	75	73	73	10	75	109	30	123
75X1-1/4″	75	75	73	73	10	75	111	30	123
75X1-1/2″	75	75	73	73	10	75	115	30	123
75X2″	75	75	73	73	10	75	115	30	123
90X1/2″	90	90	88.9	88.7	10	90	123	35	132
90X3/4″	90	90	88.9	88.7	10	90	123	35	132
90X1″	90	90	88.9	88.7	10	90	123	35	132
90X1-1/4″	90	90	88.9	88.7	10	90	123	35	132
90X1-1/2″	90	90	88.9	88.7	10	90	123	35	132
90X2″	90	90	88.9	88.7	10	90	123	35	132
90X2-1/2″	90	90	88.9	88.7	10	90	141	34	130.6
110X1/2″	110	110	114.3	114.1	10	110	140	40	163
110X3/4″	110	110	114.3	114.1	10	110	140	40	163
110X1″	110	110	114.3	114.1	10	110	140	40	163
110X1-1/4″	110	110	114.3	114.1	10	110	140	40	163
110X1-1/2″	110	110	114.3	114.1	10	110	140	40	163
110X2″	110	110	114.3	114.1	10	110	140	40	163
125X1/2″	125	125	141.3	139.7	10	125	195	40	180
125X3/4″	125	125	141.3	139.7	10	125	195	40	180
125X1″	125	125	141.3	139.7	10	125	195	40	180
125X1-1/4″	125	125	141.3	139.7	10	125	195	40	180
125X1-1/2″	125	125	141.3	139.7	10	125	195	40	180
125X2″	125	125	141.3	139.7	10	125	195	40	180
160X3/4″	160	160	168.28	168.3	10	160	210	40	207
160X1″	160	160	168.28	168.3	10	160	210	40	207
160X1-1/4″	160	160	168.28	168.3	10	160	210	40	207
160X1-1/2″	160	160	168.28	168.3	10	160	210	40	207
160X2″	160	160	168.28	168.3	10	160	210	40	207
160X2-1/2″	160	160	168.28	168.3	10	160	210	40	207
160X3″	160	160	168.28	168.3	10	160	210	40	207
160X4″	160	160	168.28	168.3	10	160	210	40	207
200X1″	200	200	219.08	219.1	10	200	290	60	272
200X1-1/4″	200	200	219.08	219.1	10	200	290	60	272
200X1-1/2″	200	200	219.08	219.1	10	200	290	60	272
200X2″	200	200	219.08	219.1	10	200	290	60	272
200X3″	200	200	219.08	219.1	10	200	290	60	272
200X4″	200	200	219.08	219.1	10	200	290	60	272

Material & Series Overview

JARO PP compression fittings use PP bodies and four-segment locking rings for mechanically assembled compatible plastic-pipe systems. The range includes straight transitions, elbows, tees, branch products, and flow-control valves.

PP Saddle Clamp is intended for applications requiring pipe branch without a tee. The saddle clamp creates a threaded branch point on a compatible main pipe; reinforcing-ring and fastener configurations are selected by model. Final technical selection should be based on the complete product drawing, dimensions, thread specification, and operating conditions.

PP compression fitting series image placeholder; final product photography and caption to be confirmed.

PP compression fitting series image placeholder; final product photography and caption to be confirmed.

Applications for PP Saddle Clamps

FAQ

Find answers about JARO pp saddle clamps. Confirm pipe outside diameter, thread specification, operating conditions, and any optional reinforcement before ordering.

Contact Our Experts

What should be confirmed before selection?

Confirm pipe outside diameter, connection or thread standard, pressure class, medium, and temperature for the pp saddle clamp.

How is the compression connection assembled?

Prepare the compatible pipe end square and clean, insert it fully, and tighten the compression nut according to the installation guidance.

How is the threaded connection sealed?

Match the thread standard to the mating component and use an appropriate thread-sealing method according to the project installation guidance.

Can JARO support OEM orders?

Yes. JARO can discuss size combinations, branding, color, packaging, and other confirmed project requirements.
