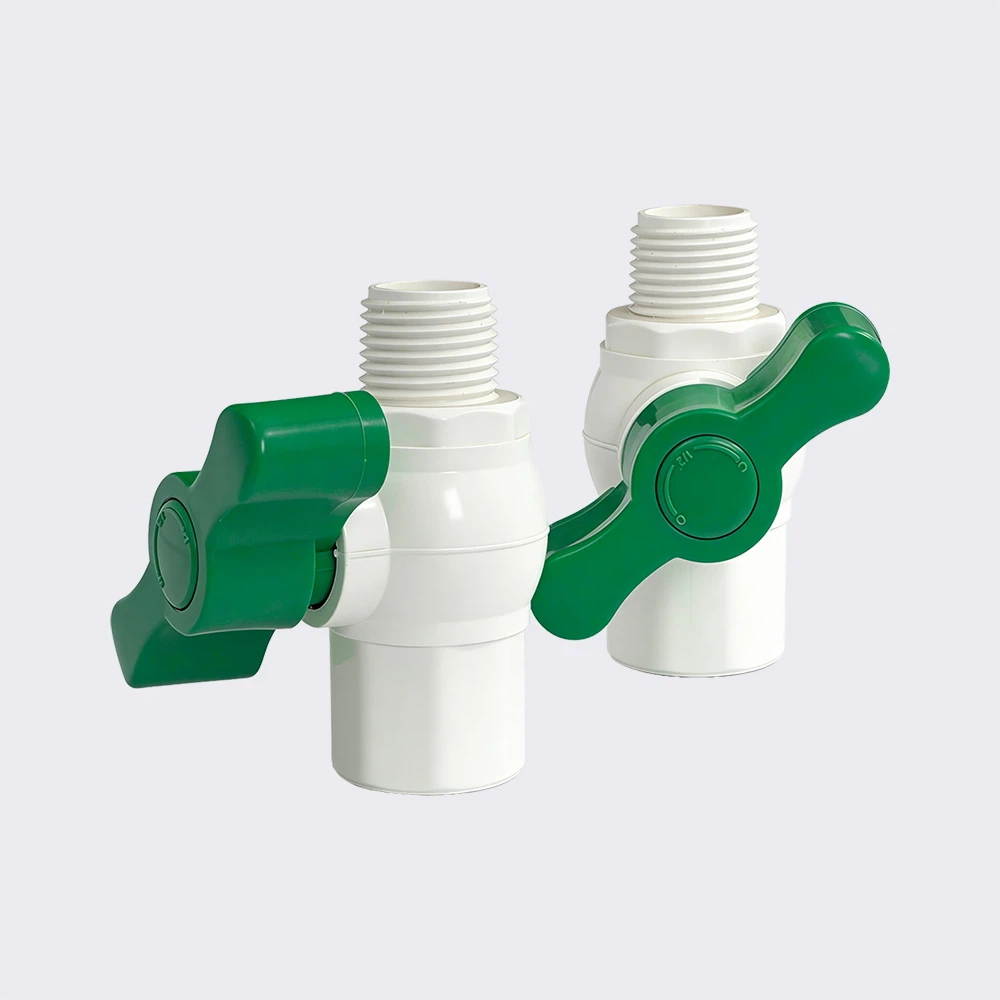

JARO JRV05 Male x Female (MxF) Threaded Octagonal Ball Valve is an innovative transition valve designed for direct connection between water pumps, tanks, and female-threaded piping without requiring extra nipples or adapters. Molded from 100% virgin PVC-U resin, it features flat octagonal wrenching surfaces, leak-proof double TPU seals, and multi-standard thread options (NPT, BSPT). Subject to 100% factory hydrostatic pressure testing, JRV05 eliminates potential leak nodes for agricultural irrigation, water treatment, and B2B OEM brand clients.
Key Features & Advantages

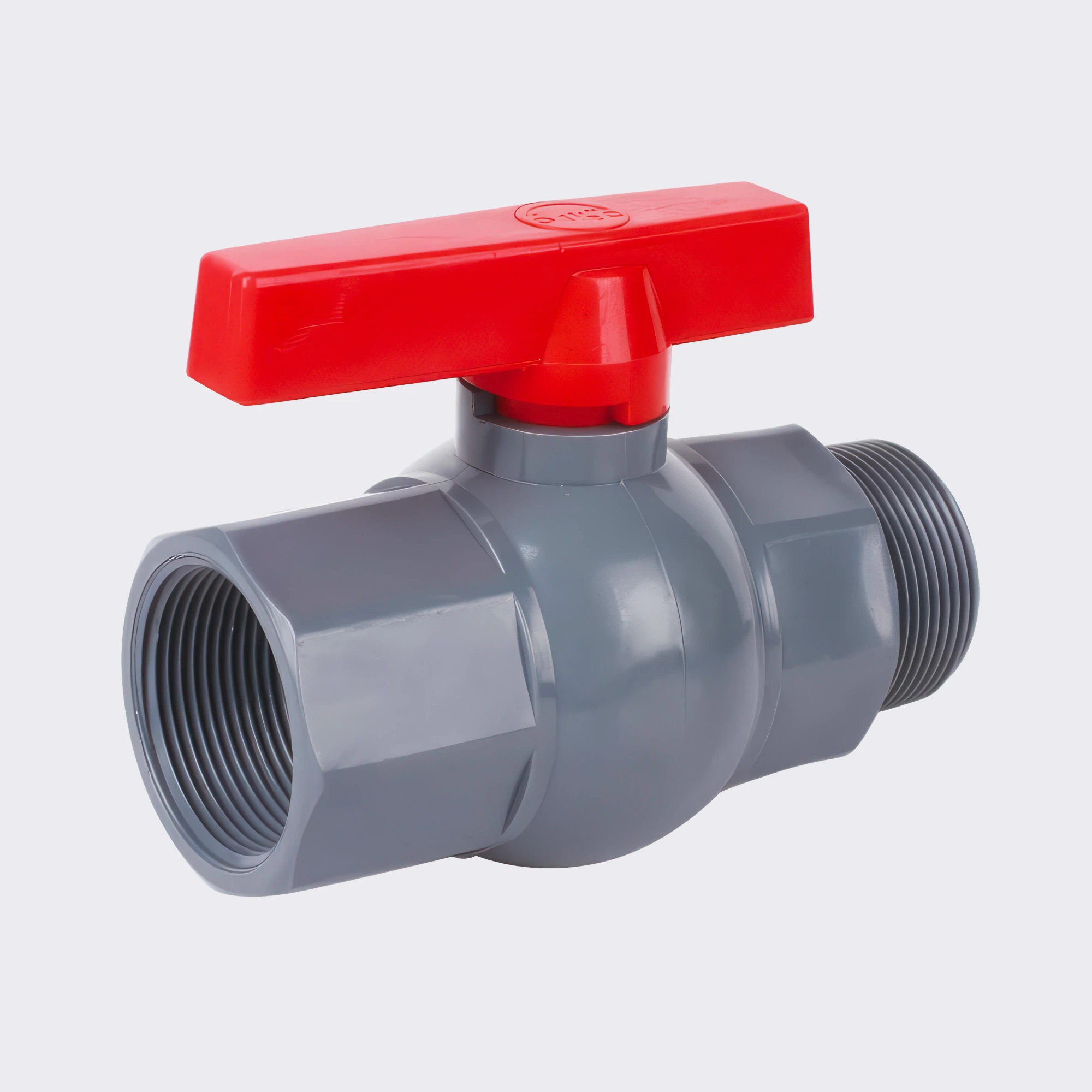

Integrated MxF Threaded Connection
Direct male x female thread design connects directly to pumps and water tank outlets, eliminating extra bushings or nipples and reducing potential leak nodes.
Octagonal Non-Slip Wrench Flats
Flat octagonal surfaces provide positive wrench positioning, preventing tool slippage and valve body damage during high-torque installation in tight spaces.
100% Virgin PVC Construction
Produced with 100% virgin PVC compound under ISO 9001 certified manufacturing systems, guaranteeing superior chemical resistance, tensile strength, and batch consistency.
100% Hydrostatic Pressure Tested
Every JRV05 valve undergoes 100% factory hydrostatic shell and seat pressure testing prior to shipment, guaranteeing zero-leak reliability under PN16 working conditions.
Low Torque Quarter-Turn Operation
Precision fit between ball and seat reduces opening resistance while maintaining tight seal integrity in systems requiring frequent manual operation.
Factory Direct & OEM Support
We provide professional plastic valve OEM services, custom logo handle embossing, body color matching, and private label packaging for wholesale tenders.
Multiple Ball Material Options
JARO offers high-precision ball cores in PVC-U, CPVC, and engineering PP materials, customized to match specific chemical concentration, temperature limits, and fluid system compatibility requirements.
Multi-Standard Connection Compatibility
Engineered for global piping integration, JARO MxF octagonal ball valves support multiple socket and thread standards—including NPT, BSPT, GB, DIN, ANSI, and JIS—ensuring seamless replacement across international markets.
OEM Handle Customization
Multiple handle ergonomics, custom color matching (gray, white, blue), and private brand logo embossing options are available to help distributors create differentiated product lines in local markets.
100% Virgin Raw Materials
JARO strictly utilizes 100% virgin PVC-U resin compounds free from recycled impurities, ensuring uniform wall density, high tensile strength, and dependable long-term pressure ratings across every production batch.
Product Core Data
Technical Drawing
Bill of Materials
| NO. | PART | MATERIAL | QTY |
|---|---|---|---|
| 1 | Octagonal MxF Body | 100% Virgin PVC-U (NSF Grade) | 1 |
| 2 | Valve Core / Ball | PVC-U / PP / CPVC | 1 |
| 3 | Seat Seal | TPE / TPR / TPU | 2 |
| 4 | O–Ring | NBR / EPDM | 1 |
| 5 | Handle | Ergonomic PP / ABS | 1 |
| 6 | Cap | ABS | 1 |
Measurement Specifications in (mm)
| OD(mm) | NPS (inch) | DN | GB | ANSI | JIS | B.S. | CNS | L | H | Z |
|---|---|---|---|---|---|---|---|---|---|---|
| Φ20 | 1/2″ | DN15 | 20 | 21.34 | 22.1 | 21.2 | 22.1 | 22.5 | 78.0 | 43.5 |
| Φ25 | 3/4″ | DN20 | 25 | 26.67 | 26.1 | 26.6 | 26.1 | 25.5 | 90.5 | 55.0 |
| Φ32 | 1″ | DN25 | 32 | 33.40 | 32.1 | 33.4 | 34.1 | 28.6 | 105.5 | 56.3 |
| Φ40 | 1-1/4″ | DN32 | 40 | 42.16 | 38.1 | 42.1 | 42.1 | 32.0 | 122.5 | 65.3 |
| Φ50 | 1-1/2″ | DN40 | 50 | 48.26 | 48.2 | 48.1 | 48.2 | 35.0 | 129.0 | 72.0 |
| Φ63 | 2″ | DN50 | 63 | 60.33 | 60.2 | 60.2 | 60.2 | 38.2 | 149.0 | 82.0 |
Packaging Information
| Size (inch/mm) | PCS/CTN | Carton Size (L × W × H, m) | Weight (g/pc) |
|---|---|---|---|
| 1/2″ | 280 | 0.5 × 0.35 × 0.3 | 65 |
| 3/4″ | 192 | 0.5 × 0.35 × 0.3 | 95 |
| 1″ | 108 | 0.5 × 0.35 × 0.3 | 158 |
| 1-1/4″ | 80 | 0.5 × 0.35 × 0.3 | 245 |
| 1-1/2″ | 56 | 0.5 × 0.35 × 0.3 | 366 |
| 2″ | 32 | 0.5 × 0.35 × 0.3 | 562 |
| 2-1/2″ | 22 | 0.5 × 0.35 × 0.35 | 980 |
| 3″ | 8 | 0.5 × 0.35 × 0.3 | 1600 |
| 4″ | 6 | 0.5 × 0.35 × 0.3 | 2700 |
Data Notes
- In the Packaging Information table, L × W × H refer strictly to outer export carton dimensions, not individual valve measurements.
- Actual carton gross weight and packing quantity may vary slightly based on customized handle branding, ball material selection, or palleted container loading requests.
- Valve dimensions shown elsewhere in the measurement table are separate product specifications. Please confirm final packaging requirements before placing bulk orders.
HD close-up of JARO 100% virgin PVC raw material pellets undergoing strict incoming batch inspection.
Precision injection molding machinery operating under ISO 9001 certified quality systems.
Export-ready JARO certified PVC MxF octagonal ball valves packed for project contractors and wholesale stockists.
PVC MxF Octagonal Ball Valve Applications
Connects directly to male or female water pump outlets and storage tanks without requiring extra pipe nipples.

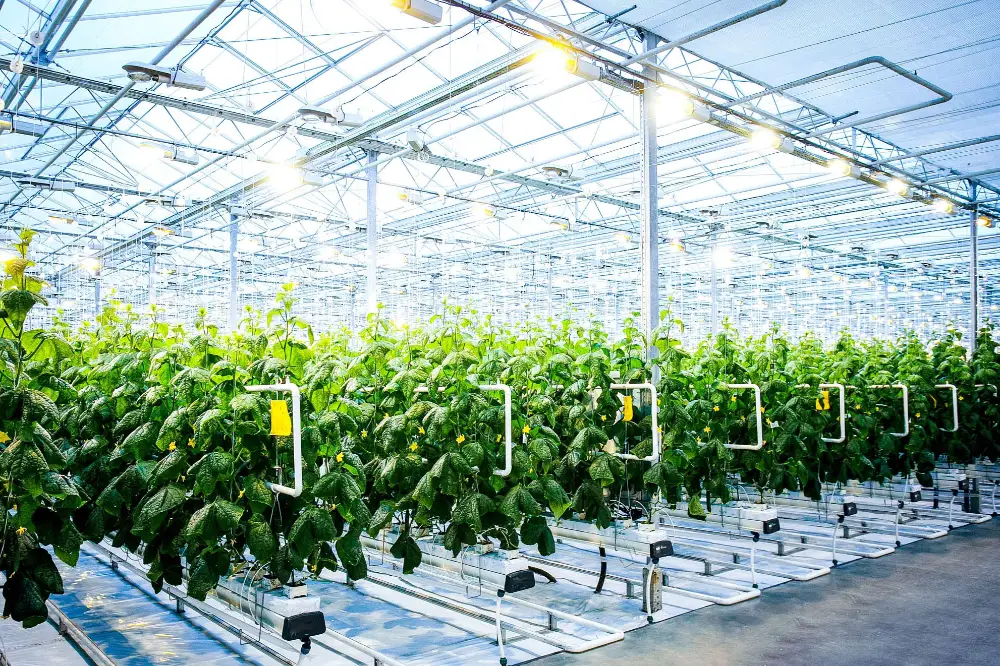

Ideal for greenhouse drip irrigation manifolds requiring compact 3-way threaded transitions and non-slip installation.
Suitable for chemical dosing skid systems and water purification equipment where space optimization is critical.
Complete PVC-U System Components & Fittings
Build a fully compatible PVC piping network. Explore our matching PVC pipes, straight couplings, 90° elbows, check valves, and certified valves manufactured under ISO 9001 quality standards.
Need custom sizes, connections or OEM branding?
Frequently Asked Questions
Find answers to the most frequently asked questions about our PVC MxF octagonal ball valves below. Need more technical details or custom OEM solutions? Our engineering team is here to help.
The integrated MxF thread design connects directly to water pumps, tanks, or equipment outlets without extra pipe nipples or adapters. This lowers material costs, reduces potential leakage points, and saves space in compact piping layouts.
JRV05 complies with GB, DIN, ANSI, JIS, NPT, and BSPT thread standards. Operating under ISO 9001 certified manufacturing systems, our products use raw materials meeting NSF/ANSI 61 certified plastic fittings standards for potable water safety and CE compliance.
Operating strictly under ISO 9001 quality management, JARO enforces a comprehensive ‘Triple-Check Quality Protocol’ across all manufacturing stages: (1) On-site workshop patrol inspections, (2) In-line visual inspections at every injection molding machine, and (3) 100% manual hand inspections during final packaging. In addition, 100% of all valve products undergo hydrostatic shell and seat pressure testing before shipment.
Yes. Through our plastic valve OEM services, JARO Industry provides custom handle logo embossing, body color customization, barcoded packaging, and engineering submittal sheets required for wholesale tenders.
