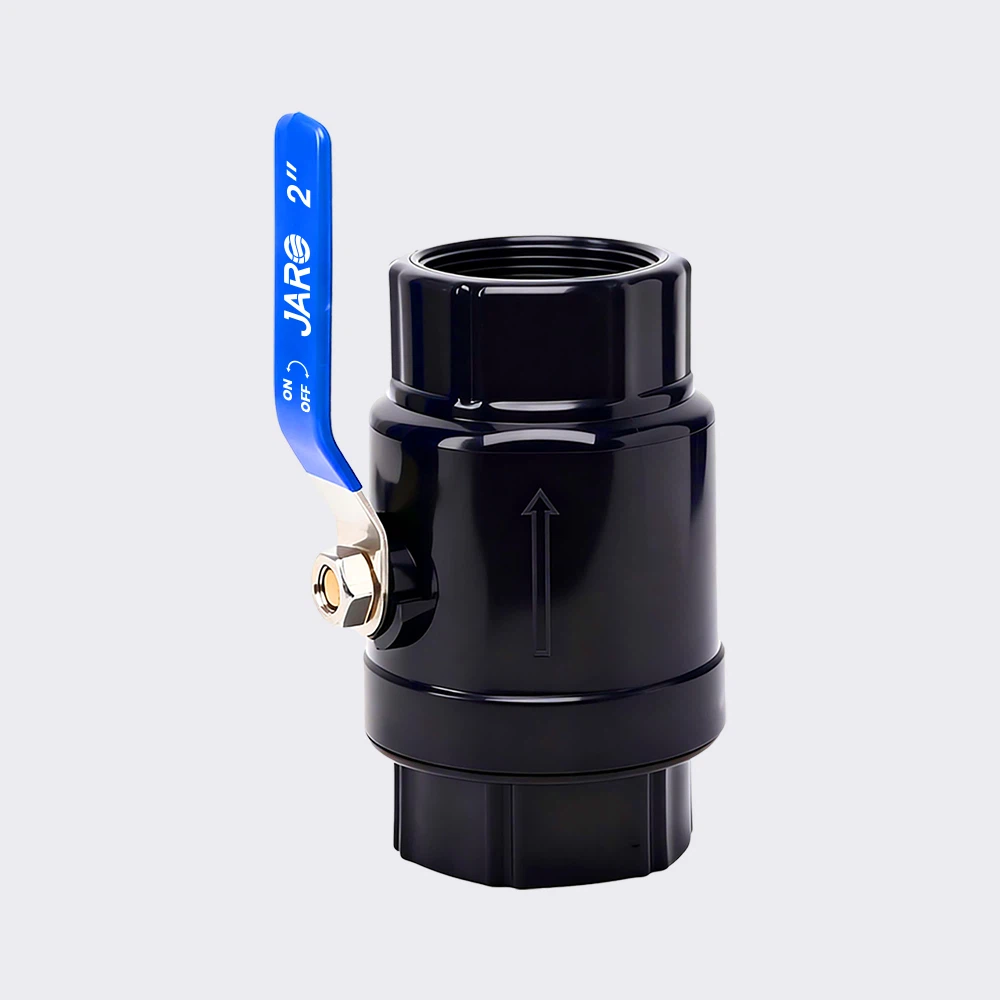

JARO JRV18 Two-Piece Ball Valve with Metal Handle is a heavy-duty manual shut-off valve engineered with a solid copper stem and a reinforced stainless steel handle for high-torque industrial and agricultural piping networks. Molded from 100% virgin PVC-U/CPVC, its dual TPU seat seals and EPDM O-rings provide wear-resistant, bubble-free sealing under PN16 (250 PSI) working pressure. Subject to 100% factory hydrostatic pressure testing, JRV18 offers long-term durability for MEP contractors, water treatment plants, and B2B OEM brand clients.
Key Features & Advantages
Reinforced Stainless Steel Handle
Durable metal handle provides a firm manual grip and reliable torque transfer for frequent opening and closing in high-pressure industrial lines.
Solid Copper Stem Integrity
Solid copper stem reinforces the drive connection between handle and ball, preventing stem shear and torque fatigue during heavy-duty operation.
Wear-Resistant Dual TPU Seals
Dual TPU seat seals and EPDM O-rings deliver excellent abrasion resistance and tight shut-off sealing under continuous fluid circulation.
100% Hydrostatic Pressure Tested
Every JRV18 unit undergoes 100% factory hydrostatic shell and seat pressure testing prior to shipment, guaranteeing zero-leak reliability under PN16 working conditions.
Multi-Standard Compatibility
Supports global piping standards (GB, DIN, ANSI, JIS, NPT, BSPT), simplifying inventory management for global distributors and MEP contractors.
Factory Direct & OEM Support
We provide professional plastic valve OEM services, custom metal handle branding, body color matching, and private label packaging for wholesale tenders.
Multiple Ball Material Options
JARO offers high-precision ball cores in PVC-U, CPVC, and engineering PP materials, customized to match specific chemical concentration, temperature limits, and fluid system compatibility requirements.
Multi-Standard Connection Compatibility
Engineered for global piping integration, JARO metal-handle ball valves support multiple socket and thread standards—including NPT, BSPT, GB, DIN, ANSI, and JIS—ensuring seamless replacement across international markets.
OEM Handle Customization
Multiple handle ergonomics, custom metal finishes, body color matching (gray, white, blue), and private brand logo embossing options are available to help distributors create differentiated product lines in local markets.
100% Virgin Raw Materials
JARO strictly utilizes 100% virgin PVC/CPVC resin compounds free from recycled impurities, ensuring uniform wall density, high tensile strength, and dependable long-term pressure ratings across every production batch.
Product Core Data
Technical Drawing
Bill of Materials
| NO. | Part | Materials | PCS |
|---|---|---|---|
| 1 | Screw Nut | Stainless Steel SS201/304 | 1 |
| 2 | Handle | Reinforced Stainless Steel Metal | 1 |
| 3 | Stem | Solid Heavy-Duty Copper / Brass | 1 |
| 4 | O-Ring | EPDM / NBR Seal | 1 |
| 5 | Body | 100% Virgin PVC-U / CPVC (NSF Grade) | 1 |
| 6 | Ball | PVC-U / ABS / CPVC | 1 |
| 7 | Seat Seal | Wear-Resistant TPU | 2 |
| 8 | Seat Carrier | PVC-U / CPVC | 1 |
Measurement Specifications in (mm)
| OD | inch | DN | GB | ANSI | JIS | B.S. | CNS | L | W | H | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Φ20 | 1/2″ | DN15 | 20 | 21.34 | 22.1 | 21.2 | 22.1 | 86.2 | 39.4 | 54.0 | 24.5 |
| Φ25 | 3/4″ | DN20 | 25 | 26.67 | 26.1 | 26.6 | 26.1 | 96.0 | 49.4 | 63.5 | 25.4 |
| Φ32 | 1″ | DN25 | 32 | 33.40 | 32.1 | 33.4 | 34.1 | 107.4 | 56.5 | 71.5 | 28.7 |
| Φ40 | 1-1/4″ | DN32 | 40 | 42.16 | 38.1 | 42.1 | 42.1 | 122.0 | 65.3 | 81.0 | 32.9 |
| Φ50 | 1-1/2″ | DN40 | 50 | 48.26 | 48.2 | 48.1 | 48.2 | 131.6 | 75.8 | 94.7 | 34.8 |
| Φ63 | 2″ | DN50 | 63 | 60.33 | 60.2 | 60.2 | 60.2 | 154.3 | 92.3 | 108.8 | 37.1 |
| Φ75 | 2-1/2″ | DN65 | 75 | 73.00 | 76.2 | 73.0 | 76.2 | 187.0 | 118.7 | 135.1 | 46.0 |
| Φ90 | 3″ | DN80 | 90 | 88.90 | 89.2 | 88.7 | 89.2 | 210.5 | 137.0 | 153.9 | 49.0 |
| Φ110 | 4″ | DN100 | 110 | 114.30 | 114.0 | 114.1 | 114.2 | 260.4 | 172.0 | 191.0 | 60.0 |
Packaging Information
| Size (inch/mm) | PCS/CTN | Carton Size (L × W × H, m) | Weight (g/pc) |
|---|---|---|---|
| 1/2″ | 240 | 0.49 × 0.34 × 0.29 | 110 |
| 3/4″ | 120 | 0.49 × 0.34 × 0.29 | 175 |
| 1″ | 96 | 0.49 × 0.34 × 0.29 | 240 |
| 1-1/4″ | 60 | 0.49 × 0.34 × 0.29 | 350 |
| 1-1/2″ | 48 | 0.49 × 0.34 × 0.29 | 448 |
| 2″ | 26 | 0.49 × 0.34 × 0.29 | 705 |
| 2-1/2″ | 16 | 0.5 × 0.27 × 0.38 | 1360 |
| 3″ | 12 | 0.5 × 0.35 × 0.42 | 2070 |
| 4″ | 6 | 0.55 × 0.55 × 0.28 | 3680 |
Data Notes
- In the Packaging Information table, L × W × H refer strictly to outer export carton dimensions, not individual valve measurements.
- Actual carton gross weight and packing quantity may vary slightly based on customized handle branding, ball material selection, or palleted container loading requests.
- Valve dimensions shown elsewhere in the measurement table are separate product specifications. Please confirm final packaging requirements before placing bulk orders.
Applications for Two-Piece Ball Valves with Metal Handles
Industrial Water Treatment
Suitable for water-treatment skids, filtration equipment, and circulation lines requiring high-torque manual flow isolation.
Agricultural Irrigation
Suitable for main irrigation headers where a metal handle provides reliable torque lever advantage during frequent field operation.
Industrial Fluid Handling
Designed for compatible industrial process, wastewater, and utility piping that requires a durable metal-lever manual shut-off valve.
Complete PVC-U System Components & Fittings
Build a fully compatible PVC piping network. Explore our matching PVC pipes, straight couplings, 90° elbows, check valves, and certified valves manufactured under ISO 9001 quality standards.
Need custom sizes, connections or OEM branding?
Frequently Asked Questions
Find answers to the most frequently asked questions about JARO two-piece ball valves with metal handles below. For technical selection, OEM solutions, or project-specific requirements, please contact our sales and engineering team.
The copper stem provides a high-strength drive connection that eliminates plastic stem shear, while the reinforced metal handle provides superior leverage for effortless manual operation.
JRV18 complies with ANSI, DIN, JIS, CNS, NPT, and BSPT standards. Operating under ISO 9001 certified manufacturing systems, our products use raw materials meeting NSF/ANSI 61 certified plastic fittings standards for potable water safety and CE compliance.
Operating strictly under ISO 9001 quality management, JARO enforces a comprehensive ‘Triple-Check Quality Protocol’ across all manufacturing stages: (1) On-site workshop patrol inspections, (2) In-line visual inspections at every injection molding machine, and (3) 100% manual hand inspections during final packaging. In addition, 100% of all valve products undergo hydrostatic shell and seat pressure testing before shipment.
Yes. Through our plastic valve OEM services, JARO Industry provides custom handle logo embossing, body color customization, barcoded packaging, and engineering submittal sheets required for wholesale tenders.
